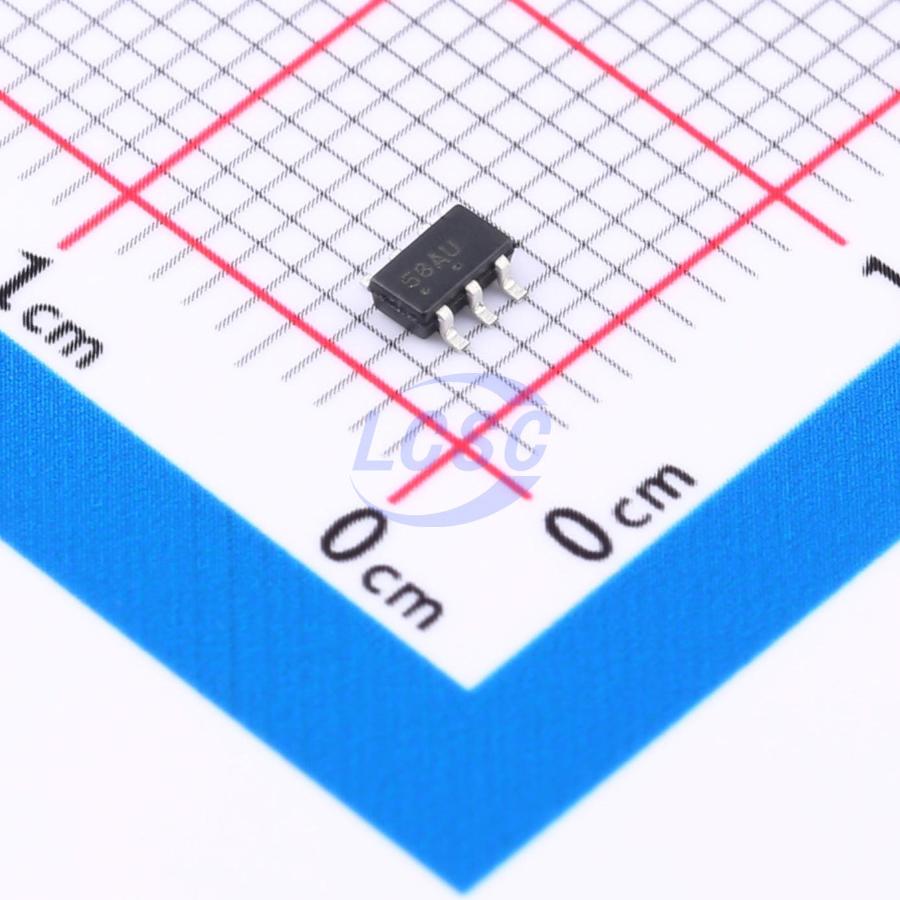

FDC658AP
P-Channel 30V 4A 1.6W Surface Mount SuperSOT-6
SuperSOT-6ROHS3 CompliantActive
MOSFET P-CH 30V 4A SuperSOT-6
- Manufacturer
- onsemi
- Manufacturer part #
- FDC658AP
- Store part #
- C3280198
- Package / case
- SuperSOT-6
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,455 in stock
#C3280198
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹60.90 | ₹304.50 |
| 50+ | ₹51.07 | ₹2,553.50 |
| 150+ | ₹46.86 | ₹7,029.00 |
| 500+ | ₹37.49 | ₹18,745.00 |
| 3,000+ | ₹35.15 | ₹1,05,450.00 |
| 6,000+ | ₹33.75 | ₹2,02,500.00 |
5 × ₹60.90
₹304.50
excl. GST
₹359.31 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
FDC658AP
₹304.50 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 180pF
- Ciss-Input Capacitance
- 680pF
- Pd - Power Dissipation
- 1.6W
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 4A
- Reverse Transfer Capacitance (Crss)
- 90pF
- RDS(on)
- 75mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 6nC
- Vgs
- ±25V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.034 g
Overview
This P-channel logic-level MOSFET is manufactured using onsemi's advanced POWERTRENCH process, optimized for battery power management applications.
Applications
- Battery Management - Load Switch - Battery Protection - DC-DC Conversion
Key features
- Maximum RDS(on) = 50 mΩ at VGS = -10 V, ID = -4 A
- Maximum RDS(on) = 75 mΩ at VGS = -4.5 V, ID = -3.4 A
- Low gate charge
- Ultra-low RDS(on) achieved with high-performance trench technology
- Lead-free, halogen-free, RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FDC610PZ#C241761onsemi · SuperSOT-6 | onsemi | SuperSOT-6 | 49 | ₹58.46 · 49 in stock | View |
 | SP3407TS#C41354971Siliup · SOT-23-6L | Siliup | SOT-23-6L | 2,740 | ₹3.98 · 2,740 in stock | View |
 | FDC365P#C22435047TECH PUBLIC · SOT-23-6 | TECH PUBLIC | SOT-23-6 | 1,155 | ₹19.22 · 1,155 in stock | View |
 | IRF5803TRPBF-TP#C22435109TECH PUBLIC · SOT-23-6 | TECH PUBLIC | SOT-23-6 | 1,740 | ₹19.06 · 1,740 in stock | View |
 | TPZXMP4A57E6TA#C22435162TECH PUBLIC · SOT-23-6 | TECH PUBLIC | SOT-23-6 | 185 | ₹12.38 · 185 in stock | View |
