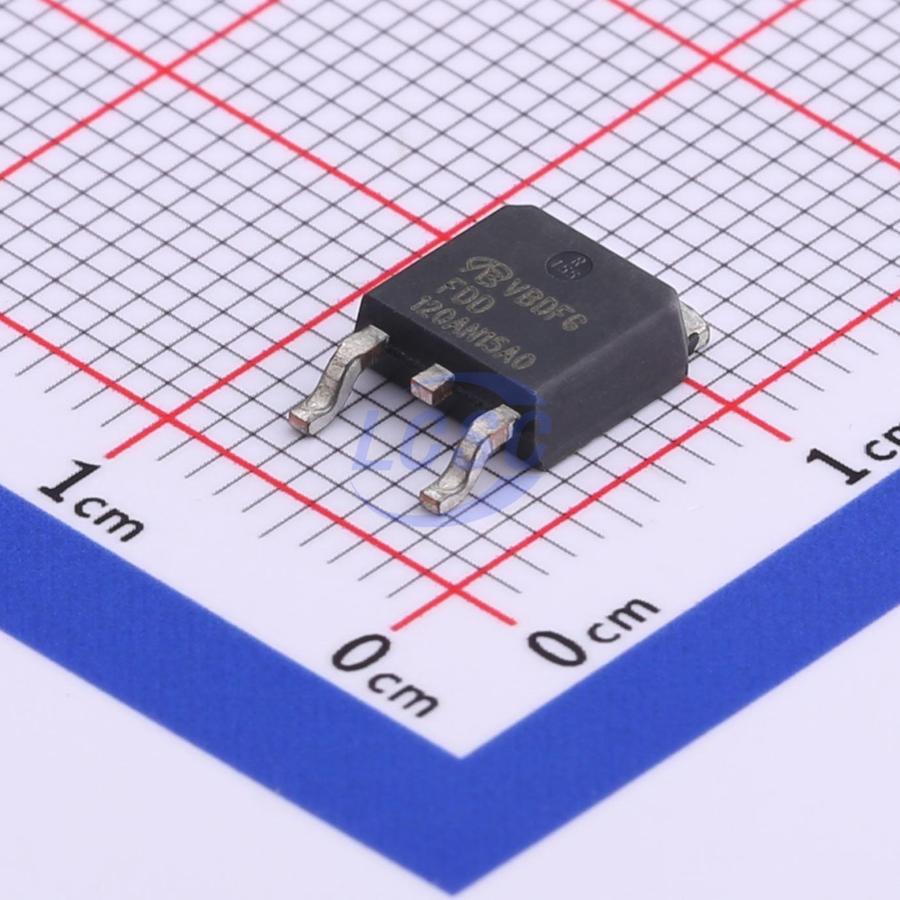

FDD120AN15A0-VB
N-Channel 150V 25.4A 5.9W Surface Mount TO-252
TO-252RoHSActive
MOSFET N-CH 150V 25.4A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- FDD120AN15A0-VB
- Store part #
- C879035
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
56 in stock
#C879035
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹128.30 | ₹128.30 |
| 10+ | ₹109.15 | ₹1,091.50 |
| 30+ | ₹99.46 | ₹2,983.80 |
| 100+ | ₹89.99 | ₹8,999.00 |
| 500+ | ₹66.52 | ₹33,260.00 |
| 1,000+ | ₹63.73 | ₹63,730.00 |
1 × ₹128.30
₹128.30
excl. GST
₹151.39 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
FDD120AN15A0-VB
₹128.30 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 150V
- Output Capacitance(Coss)
- 160pF
- Current - Continuous Drain(Id)
- 25.4A
- Ciss-Input Capacitance
- 1.735nF
- Pd - Power Dissipation
- 5.9W
- Reverse Transfer Capacitance (Crss)
- 37pF
- RDS(on)
- 74mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 28.5nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.39 g
Overview
Applications
- Primary-side switch
Key features
- Compliant with halogen-free requirements as defined by IEC 61249-2-21
- Ultra-low Qgd for reduced switching losses
- 100% Rg tested
- 100% avalanche tested
- Compliant with RoHS Directive 2002/95/EC
