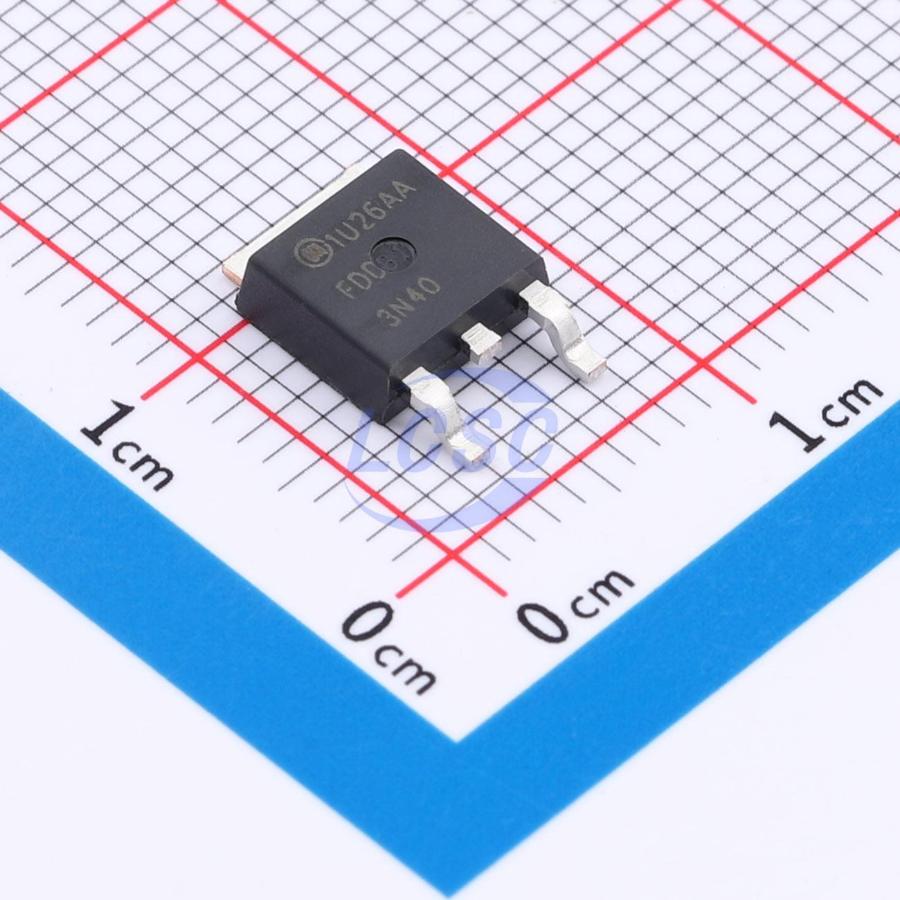

FDD3N40TM
30W 400V 2A 3.4Ω@10V 1 N-channel N-Channel TO-252(DPAK) Single FETs, MOSFETs RoHS
TO-252(DPAK)ROHS3 CompliantActive
- Manufacturer
- onsemi
- Manufacturer part #
- FDD3N40TM
- Store part #
- C903567
- Package / case
- TO-252(DPAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
200 in stock
#C903567
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹122.51 | ₹122.51 |
| 10+ | ₹119.68 | ₹1,196.80 |
| 30+ | ₹117.95 | ₹3,538.50 |
| 100+ | ₹115.99 | ₹11,599.00 |
1 × ₹122.51
₹122.51
excl. GST
₹144.56 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
FDD3N40TM
₹122.51 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 30pF
- Ciss-Input Capacitance
- 225pF
- Pd - Power Dissipation
- 30W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 400V
- Current - Continuous Drain(Id)
- 2A
- Reverse Transfer Capacitance (Crss)
- 3.7pF
- RDS(on)
- 3.4Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 6nC@10V
- Vgs
- ±30V
- Gate Threshold Voltage (Vgs(th))
- 5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.41 g
Overview
UniFET™ MOSFETs are a family of high-voltage MOSFETs based on planar stripe and DMOS technology. These MOSFETs are specifically designed to reduce on-resistance, offering improved switching performance and higher avalanche energy capability. This device family is suited for switched-mode power converter applications such as power factor correction (PFC), flat panel display (FPD) TV power supplies, ATX, and electronic lamp ballasts.
Applications
- LED TVs
- Consumer appliances
- Lighting
- Uninterruptible power supplies
Key features
- On-resistance R<sub>DS(on)</sub> = 3.4Ω (typical) [V<sub>GS</sub> = 10V, I<sub>D</sub> = 1A]
- Low gate charge (typical 4.5 nC)
- Low reverse transfer capacitance C<sub>rss</sub> (typical 3.7 pF)
- 100% avalanche tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | STD3N40K3#C500955ST · DPAK | ST | DPAK | 119 | ₹317.04 · 119 in stock | View |
 | D2N65#C2875694Jingdao Microelectronics · TO-252-3 | Jingdao Microelectronics | TO-252-3 | 880 | ₹14.74 · 880 in stock | View |
 | 11N65R#C42441705HL · TO-252-3L | HL | TO-252-3L | 819 | ₹65.89 · 819 in stock | View |
 | MPD05N50D#C55454138MIRACLE POWER · TO-252 | MIRACLE POWER | TO-252 | 2,500 | ₹11.35 · 2,500 in stock | View |
 | STD5N95K3#C2970512ST · DPAK | ST | DPAK | 2,234 | ₹332.51 · 2,234 in stock | View |
