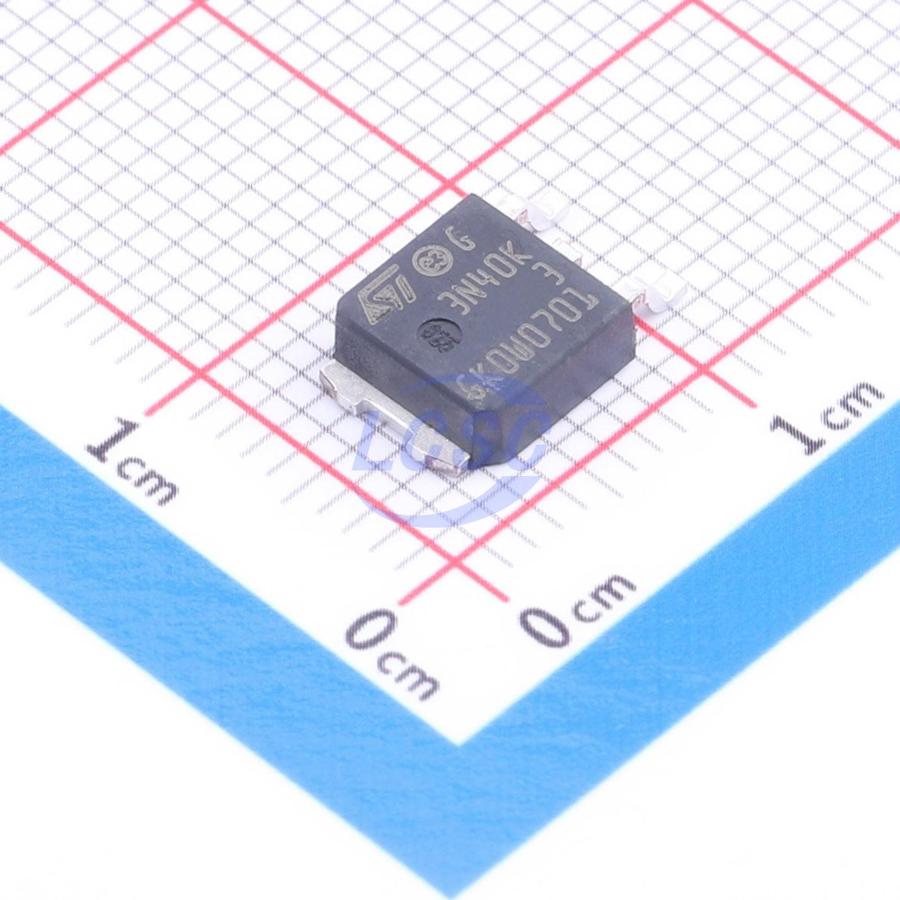

STD3N40K3
30W 400V 2A 2.7Ω@10V 1 N-channel N-Channel DPAK Single FETs, MOSFETs RoHS
DPAKROHS3 CompliantActive
- Manufacturer
- ST
- Manufacturer part #
- STD3N40K3
- Store part #
- C500955
- Package / case
- DPAK
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
119 in stock
#C500955
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹317.04 | ₹317.04 |
| 10+ | ₹311.67 | ₹3,116.70 |
| 30+ | ₹308.01 | ₹9,240.30 |
| 100+ | ₹304.36 | ₹30,436.00 |
1 × ₹317.04
₹317.04
excl. GST
₹374.11 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
STD3N40K3
₹317.04 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 17pF
- Ciss-Input Capacitance
- 165pF
- Pd - Power Dissipation
- 30W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 400V
- Current - Continuous Drain(Id)
- 2A
- Reverse Transfer Capacitance (Crss)
- 3pF
- RDS(on)
- 2.7Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 11nC@10V
- Vgs
- ±30V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.455 g
Overview
This SuperMESH3™ power MOSFET is the result of improvements to STMicroelectronics' SuperMESH™ technology, combined with a newly optimized vertical structure. The device features ultra-low on-resistance, excellent dynamic performance, and high avalanche capability, making it suitable for the most demanding applications.
Applications
- Switching applications
Key features
- 100% avalanche tested
- Extremely high dv/dt capability
- Minimized gate charge
- Ultra-low intrinsic capacitance
- Improved diode reverse recovery characteristics
- Zener protection
