STDatasheet (PDF)

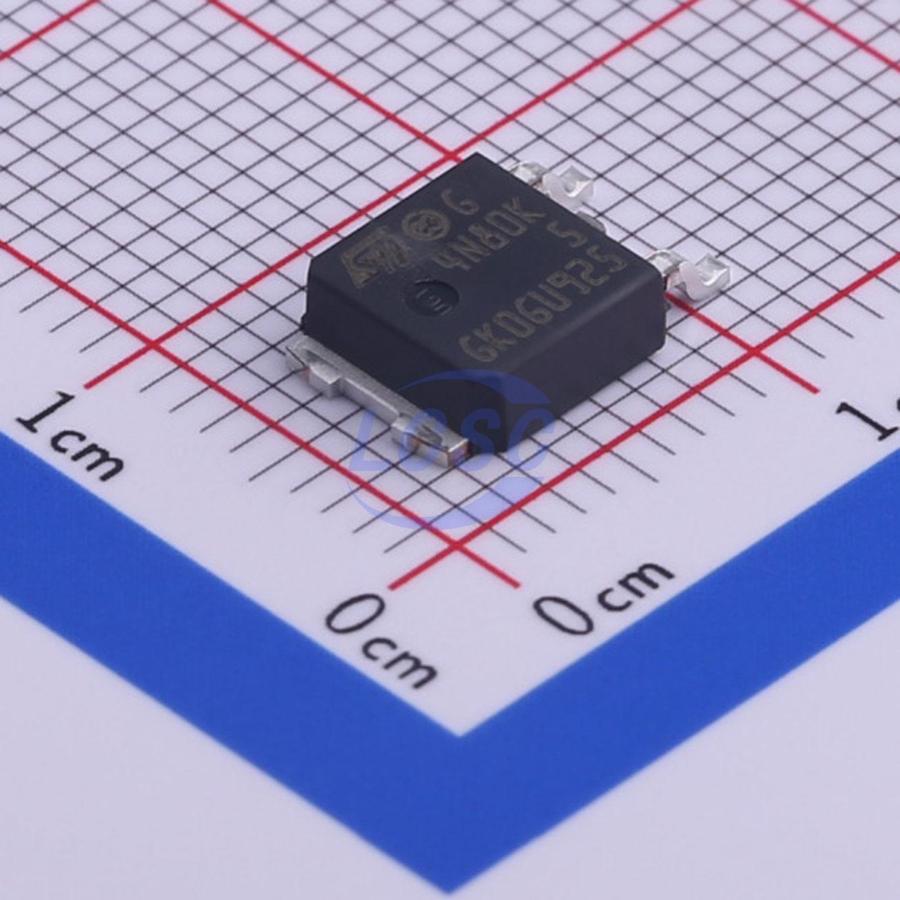

STD4N80K5
N-Channel 800V 3A 60W Surface Mount TO-252(DPAK)
TO-252(DPAK)ROHS3 CompliantActive
MOSFET N-CH 800V 3A TO-252(DPAK)
- Manufacturer
- ST
- Manufacturer part #
- STD4N80K5
- Store part #
- C472540
- Package / case
- TO-252(DPAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
73 in stock
#C472540
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹238.75 | ₹238.75 |
| 10+ | ₹204.03 | ₹2,040.30 |
| 30+ | ₹182.44 | ₹5,473.20 |
| 100+ | ₹160.23 | ₹16,023.00 |
| 500+ | ₹150.07 | ₹75,035.00 |
| 1,000+ | ₹145.83 | ₹1,45,830.00 |
1 × ₹238.75
₹238.75
excl. GST
₹281.72 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
STD4N80K5
₹238.75 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 18pF
- Ciss-Input Capacitance
- 175pF
- Pd - Power Dissipation
- 60W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 800V
- Current - Continuous Drain(Id)
- 3A
- Reverse Transfer Capacitance (Crss)
- 0.5pF
- RDS(on)
- 2.5Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 10.5nC@640V
- Vgs
- ±30V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.396 g
Overview
These very high voltage N-channel Power MOSFETs are designed using MDmesh™ K5 technology based on an innovative proprietary vertical structure. The result is a dramatic reduction in on-resistance and ultra-low gate charge for applications requiring superior power density and high efficiency.
Applications
- Switching applications
Key features
- Industry’s lowest RDS(on) x area Industry’s best figure of merit (FoM)
- Ultra low gate charge
- 100% avalanche tested Zener-protected
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | STD5N80K5#C2688621ST · DPAK | ST | DPAK | 90 | ₹476.09 · 90 in stock | View |
 | SIHD5N80AE-GE3#C3281472VISHAY · TO-252AA | VISHAY | TO-252AA | 10 | ₹114.52 · 10 in stock | View |
 | SL5N100D#C5375309Slkor · TO-252(DPAK) | Slkor | TO-252(DPAK) | 945 | ₹86.39 · 945 in stock | View |
 | STD1NK80ZT4-VB#C20755262VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 40 | ₹161.54 · 40 in stock | View |
 | OSD4N80-OSEN#C55502967OSEN · TO-252 | OSEN | TO-252 | 200 | ₹36.81 · 200 in stock | View |
