STDatasheet (PDF)

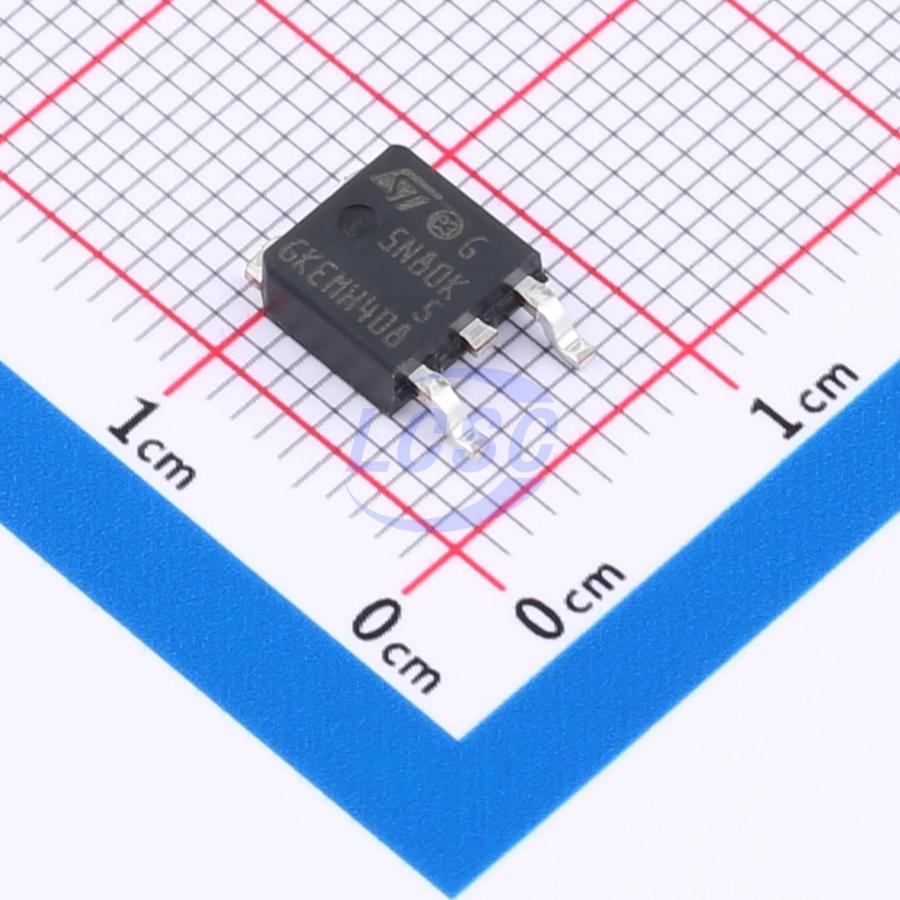

STD5N80K5
60W 800V 4A 1.75Ω@10V 1 N-channel N-Channel DPAK Single FETs, MOSFETs RoHS
DPAKROHS3 CompliantActive
N-channel, Current:4A, Voltage:800V
- Manufacturer
- ST
- Manufacturer part #
- STD5N80K5
- Store part #
- C2688621
- Package / case
- DPAK
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
90 in stock
#C2688621
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹476.09 | ₹476.09 |
| 10+ | ₹420.63 | ₹4,206.30 |
| 30+ | ₹386.04 | ₹11,581.20 |
| 100+ | ₹350.57 | ₹35,057.00 |
| 500+ | ₹334.67 | ₹1,67,335.00 |
| 1,000+ | ₹327.57 | ₹3,27,570.00 |
1 × ₹476.09
₹476.09
excl. GST
₹561.79 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
STD5N80K5
₹476.09 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 15pF
- Ciss-Input Capacitance
- 177pF
- Pd - Power Dissipation
- 60W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 800V
- Current - Continuous Drain(Id)
- 4A
- Reverse Transfer Capacitance (Crss)
- 0.3pF
- RDS(on)
- 1.75Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 16nC
- Vgs
- ±30V
- Gate Threshold Voltage (Vgs(th))
- 5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.438 g
Overview
This ultra-high voltage N-channel power MOSFET is designed using MDmesh K5 technology based on an innovative proprietary vertical structure. The result is a significantly reduced on-resistance and ultra-low gate charge, making it ideal for applications with demanding power density and efficiency requirements.
Applications
- Switching applications
Key features
- Industry-lowest RDS(on) × area
- Industry-best figure of merit (FoM)
- Ultra-low gate charge
- 100% avalanche tested
- Zener protection
