MDD(Microdiode Semiconductor)
2N7002KN-Channel 60V 300mA 300mW Surface Mount SOT-23
From
₹2.32
25,99,250 in stock
STDatasheet (PDF)

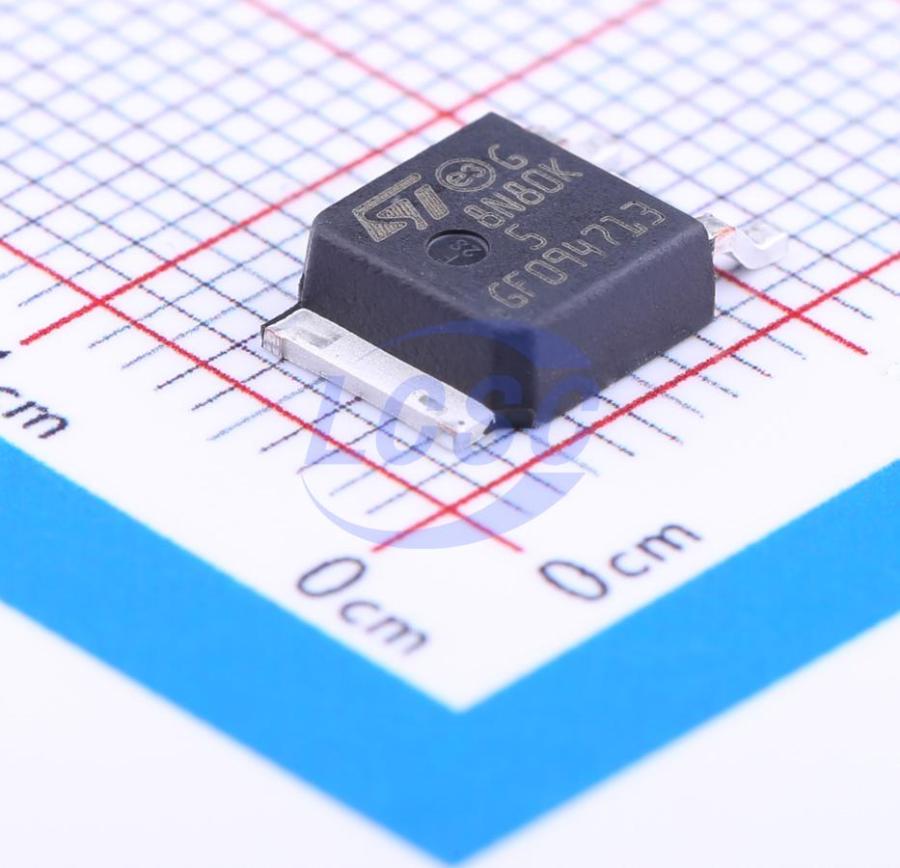

STD8N80K5
110W 800V 6A 950mΩ@10V 1 N-channel N-Channel TO-252-2(DPAK) Single FETs, MOSFETs RoHS
TO-252-2(DPAK)ROHS3 CompliantActive
MOSFET N-CH 800V 6A TO-252-2(DPAK)
- Manufacturer
- ST
- Manufacturer part #
- STD8N80K5
- Store part #
- C165934
- Package / case
- TO-252-2(DPAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
13 in stock
#C165934
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹407.78 | ₹407.78 |
| 10+ | ₹351.63 | ₹3,516.30 |
| 30+ | ₹318.22 | ₹9,546.60 |
| 100+ | ₹284.62 | ₹28,462.00 |
| 500+ | ₹269.05 | ₹1,34,525.00 |
| 1,000+ | ₹262.09 | ₹2,62,090.00 |
| 2,500+ | ₹259.00 | ₹6,47,500.00 |
1 × ₹407.78
₹407.78
excl. GST
₹481.18 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
STD8N80K5
₹407.78 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 50pF
- Ciss-Input Capacitance
- 450pF
- Pd - Power Dissipation
- 110W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 800V
- Current - Continuous Drain(Id)
- 6A
- Reverse Transfer Capacitance (Crss)
- 1pF
- RDS(on)
- 950mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 16.5nC@10V
- Vgs
- ±30V
- Gate Threshold Voltage (Vgs(th))
- 5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.475 g
Overview
This N-channel Zener-protected power MOSFET is designed using STMicroelectronics (ST)'s revolutionary avalanche-rugged ultra-high-voltage SuperMESH™ 5 technology, based on an innovative proprietary vertical structure. This delivers a significant reduction in on-resistance and ultra-low gate charge, making it ideal for applications with extremely demanding power density and efficiency requirements.
Applications
- Switching applications
Key features
- Best-in-class figure of merit (FOM)
- Ultra-low gate charge
- 100% avalanche tested
- Zener protected
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | STD7N80K5#C457497ST · DPAK | ST | DPAK | 46 | ₹354.76 · 46 in stock | View |
 | MS8N90ICD0#C37635854MASPOWER · TO-252 | MASPOWER | TO-252 | 1,919 | ₹134.55 · 1,919 in stock | View |
 | CMD90R900D#C42388478Cmos · TO-252 | Cmos | TO-252 | 1 | ₹79.79 · 1 in stock | View |
 | MS10N100HCD0#C55042363MASPOWER · TO-252 | MASPOWER | TO-252 | 68 | ₹141.15 · 68 in stock | View |
 | STD6N90K5#C5268642ST · DPAK | ST | DPAK | On request | ₹190.66 · 0 in stock | View |
