STDatasheet (PDF)

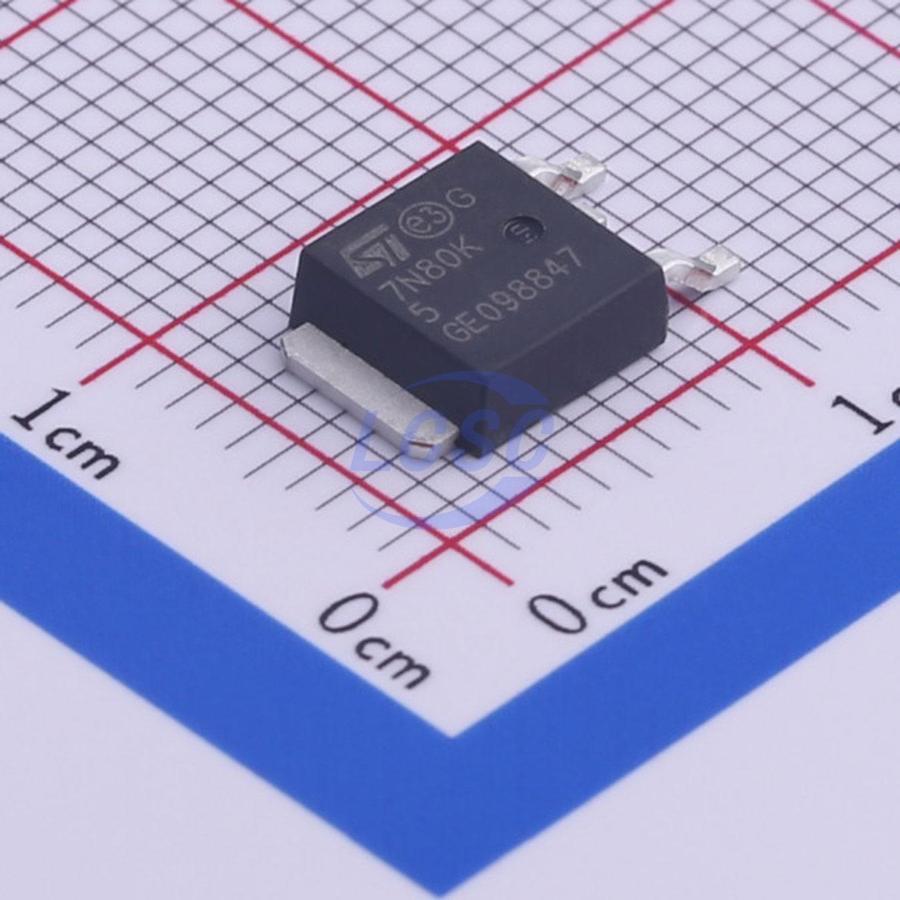

STD7N80K5
110W 800V 6A 950mΩ@10V 1 N-channel N-Channel DPAK Single FETs, MOSFETs RoHS
DPAKROHS3 CompliantActive
MOSFET N-CH 800V 6A DPAK
- Manufacturer
- ST
- Manufacturer part #
- STD7N80K5
- Store part #
- C457497
- Package / case
- DPAK
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
46 in stock
#C457497
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹354.76 | ₹354.76 |
| 10+ | ₹298.80 | ₹2,988.00 |
| 30+ | ₹263.73 | ₹7,911.90 |
| 100+ | ₹227.79 | ₹22,779.00 |
| 500+ | ₹211.68 | ₹1,05,840.00 |
| 1,000+ | ₹204.72 | ₹2,04,720.00 |
1 × ₹354.76
₹354.76
excl. GST
₹418.62 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
STD7N80K5
₹354.76 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 30pF
- Ciss-Input Capacitance
- 360pF
- Pd - Power Dissipation
- 110W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 800V
- Current - Continuous Drain(Id)
- 6A
- Reverse Transfer Capacitance (Crss)
- 1pF
- RDS(on)
- 950mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 13.4nC@640V
- Vgs
- ±30V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.372 g
Overview
This ultra-high voltage N-channel power MOSFET is designed using MDmesh™ K5 technology based on an innovative proprietary vertical structure. The result is a significantly reduced on-resistance and ultra-low gate charge, making it ideal for applications with extremely demanding power density and efficiency requirements.
Applications
- Switching applications
Key features
- Industry-lowest R DS(on) × area
- Industry-best figure of merit (FoM)
- Ultra-low gate charge
- 100% avalanche tested
- Zener-protected
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | STD6N90K5#C5268642ST · DPAK | ST | DPAK | On request | ₹190.66 · 0 in stock | View |
 | STD8N80K5#C165934ST · TO-252-2(DPAK) | ST | TO-252-2(DPAK) | 13 | ₹407.78 · 13 in stock | View |
 | STD6N95K5#C455168ST · DPAK | ST | DPAK | 1,27,315 | ₹135.08 · 1,27,315 in stock | View |
 | BMD80N900E2#C55805900Bestirpower · DPAK | Bestirpower | DPAK | 10 | ₹52.88 · 10 in stock | View |
 | STD80N240K6#C5268658ST · TO-252(DPAK) | ST | TO-252(DPAK) | 5 | ₹901.03 · 5 in stock | View |
