HXY MOSFETDatasheet (PDF)

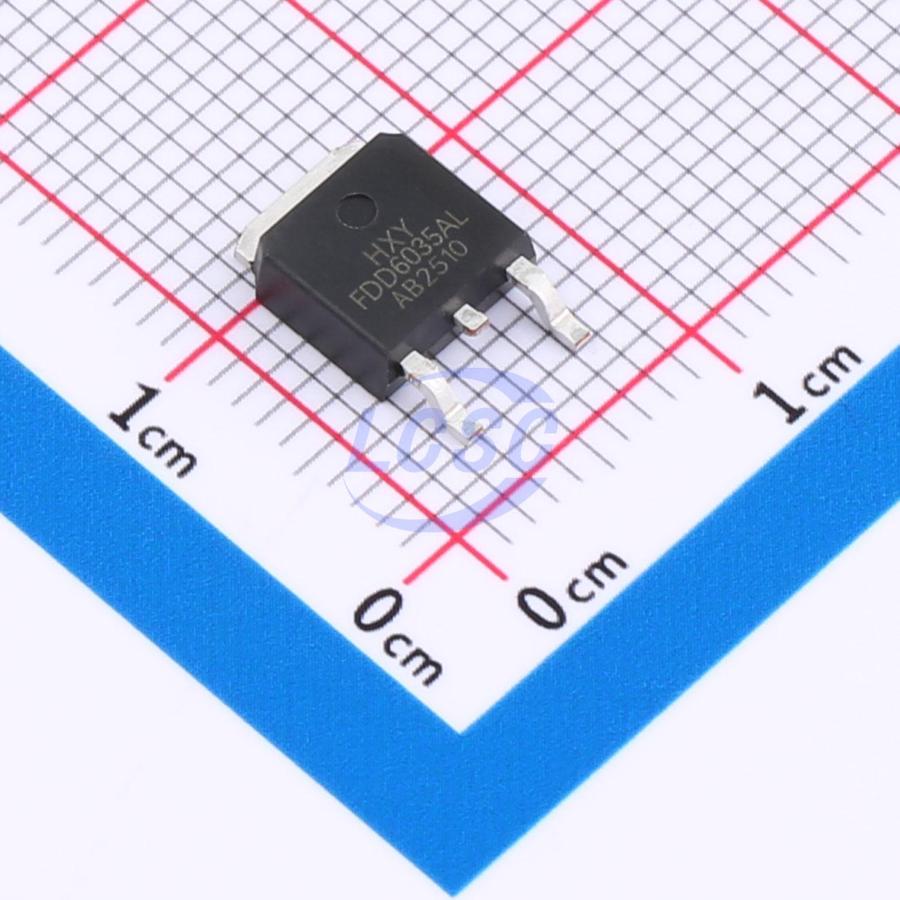

FDD6035AL-HXY
N-Channel 30V 50A 37.5W Surface Mount TO-252-2L
TO-252-2LROHS CompliantActive
MOSFET N-CH 30V 50A TO-252-2L
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- FDD6035AL-HXY
- Store part #
- C48972147
- Package / case
- TO-252-2L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
91 in stock
#C48972147
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹57.78 | ₹57.78 |
| 10+ | ₹46.19 | ₹461.90 |
| 30+ | ₹41.46 | ₹1,243.80 |
| 100+ | ₹35.23 | ₹3,523.00 |
| 500+ | ₹32.44 | ₹16,220.00 |
| 1,000+ | ₹30.93 | ₹30,930.00 |
1 × ₹57.78
₹57.78
excl. GST
₹68.18 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
FDD6035AL-HXY
₹57.78 for 1 + GST
Specifications
- Configuration
- Standalone
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+175℃
- Output Capacitance(Coss)
- 131pF
- Current - Continuous Drain(Id)
- 50A
- Ciss-Input Capacitance
- 940pF
- Pd - Power Dissipation
- 37.5W
- Reverse Transfer Capacitance (Crss)
- 109pF
- RDS(on)
- 7.5mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 9.8nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.385 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NTD4302-HXY#C22367116HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 50 | ₹28.46 · 50 in stock | View |
 | HPHD71NQ03LT118#C42401447HXY MOSFET · TO-252-2L(DPAK) | HXY MOSFET | TO-252-2L(DPAK) | 145 | ₹19.95 · 145 in stock | View |
 | DMN3010LK3-13-HXY#C48972145HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 13 | ₹52.15 · 13 in stock | View |
 | FDD6690S-HXY#C49256462HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 180 | ₹50.14 · 180 in stock | View |
 | FDD8647L-HXY#C22366947HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 24 | ₹62.67 · 24 in stock | View |
