HXY MOSFETDatasheet (PDF)

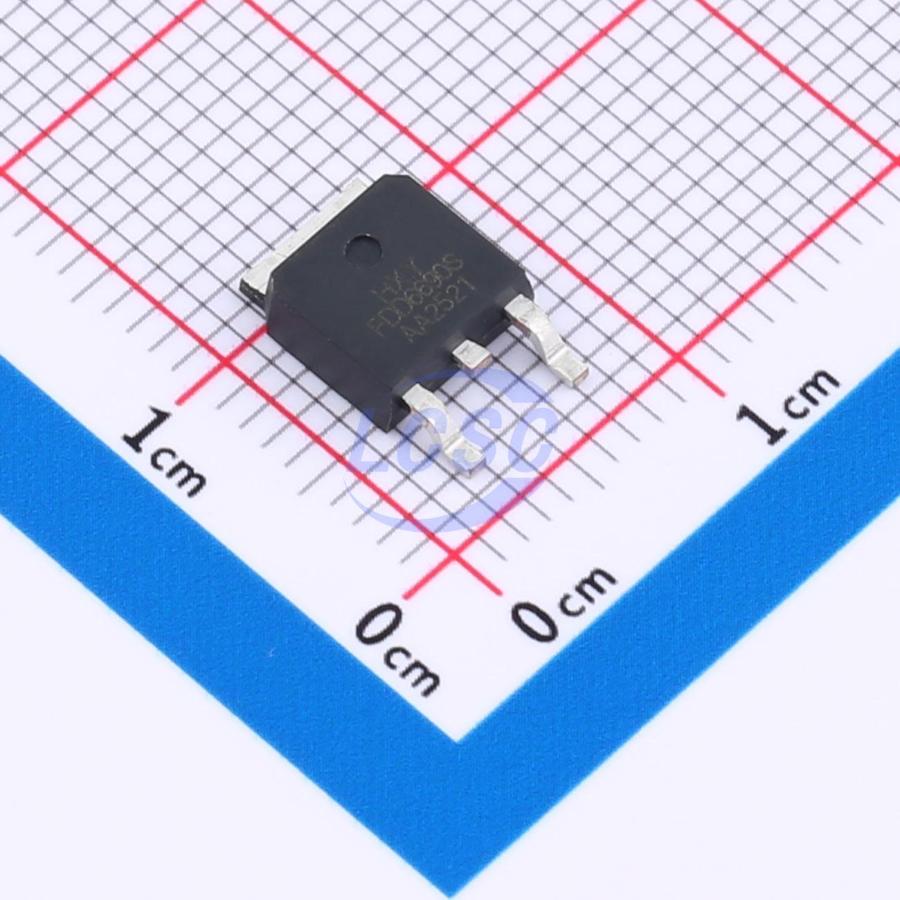

FDD6690S-HXY
30V 50A 37.5W 7.5mΩ@10V 1 N-channel N-Channel TO-252-2L Single FETs, MOSFETs
TO-252-2LRoHSActive
MOSFET N-CH 30V 50A TO-252-2L
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- FDD6690S-HXY
- Store part #
- C49256462
- Package / case
- TO-252-2L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
180 in stock
#C49256462
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹50.14 | ₹250.70 |
| 50+ | ₹40.15 | ₹2,007.50 |
| 150+ | ₹35.88 | ₹5,382.00 |
| 500+ | ₹30.55 | ₹15,275.00 |
| 2,500+ | ₹28.17 | ₹70,425.00 |
| 5,000+ | ₹26.74 | ₹1,33,700.00 |
5 × ₹50.14
₹250.70
excl. GST
₹295.83 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
FDD6690S-HXY
₹250.70 for 5 + GST
Specifications
- Configuration
- Standalone
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+175℃
- Current - Continuous Drain(Id)
- 50A
- Output Capacitance(Coss)
- 131pF
- Ciss-Input Capacitance
- 940pF
- Pd - Power Dissipation
- 37.5W
- Reverse Transfer Capacitance (Crss)
- 109pF
- RDS(on)
- 7.5mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 9.8nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.39 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NTD4302-HXY#C22367116HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 50 | ₹28.46 · 50 in stock | View |
 | HPHD71NQ03LT118#C42401447HXY MOSFET · TO-252-2L(DPAK) | HXY MOSFET | TO-252-2L(DPAK) | 145 | ₹19.95 · 145 in stock | View |
 | DMN3010LK3-13-HXY#C48972145HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 13 | ₹52.15 · 13 in stock | View |
 | FDD6035AL-HXY#C48972147HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 91 | ₹57.78 · 91 in stock | View |
 | FDD8647L-HXY#C22366947HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 24 | ₹62.67 · 24 in stock | View |
