VBsemi ElecDatasheet (PDF)

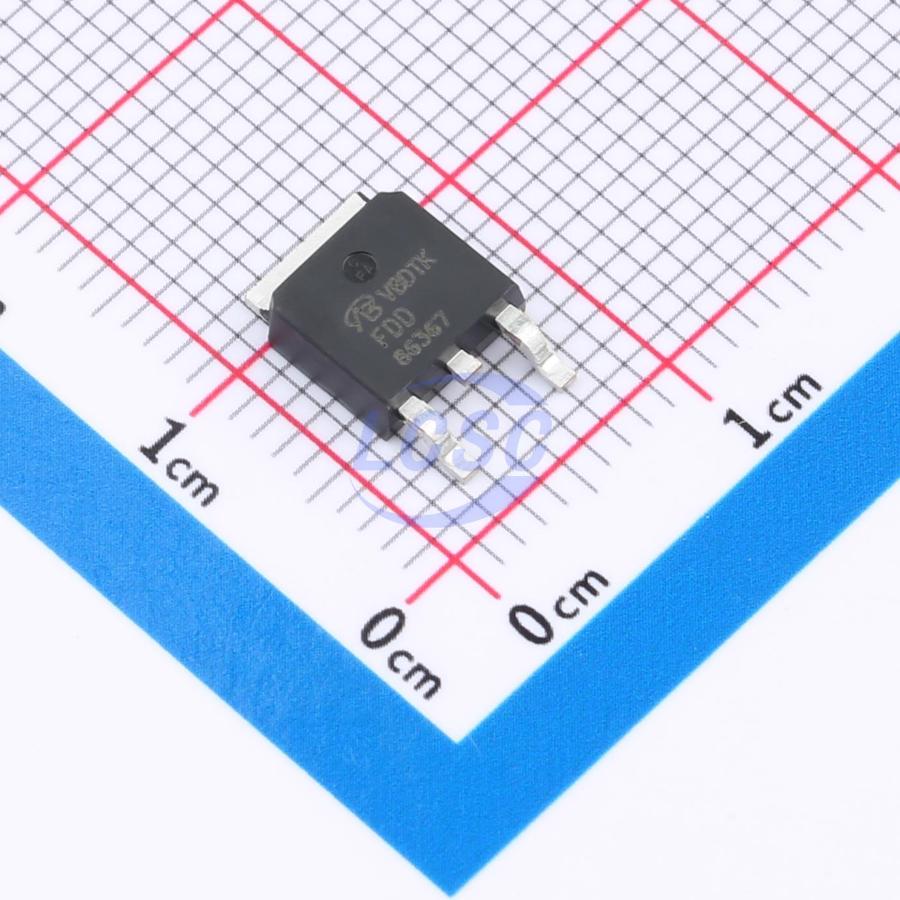

FDD86367-VB
N-Channel 80V 120A 150W Surface Mount TO-252
TO-252RoHSActive
MOSFET N-CH 80V 120A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- FDD86367-VB
- Store part #
- C47993993
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
11 in stock
#C47993993
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹155.88 | ₹155.88 |
| 10+ | ₹128.23 | ₹1,282.30 |
| 30+ | ₹114.52 | ₹3,435.60 |
| 100+ | ₹100.80 | ₹10,080.00 |
| 500+ | ₹84.25 | ₹42,125.00 |
| 1,000+ | ₹80.12 | ₹80,120.00 |
1 × ₹155.88
₹155.88
excl. GST
₹183.94 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
FDD86367-VB
₹155.88 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 80V
- Current - Continuous Drain(Id)
- 120A
- Output Capacitance(Coss)
- 246pF
- Ciss-Input Capacitance
- 7.6nF
- Pd - Power Dissipation
- 150W
- Reverse Transfer Capacitance (Crss)
- 21pF
- RDS(on)
- 5mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 40nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.62 g
Overview
Applications
- Power Supply
- Uninterruptible Power Supply
- AC/DC Switching Power Supply
- Lighting
- Synchronous Rectification
- DC-DC Converter
- Motor Drive Switch
- DC-AC Inverter
- Solar Micro Inverter
- Class D Audio Amplifier
Key features
- SGT power MOSFET
- Maximum junction temperature 175°C
- 100% Rg and UIS tested
- RoHS compliant
- Halogen-free
