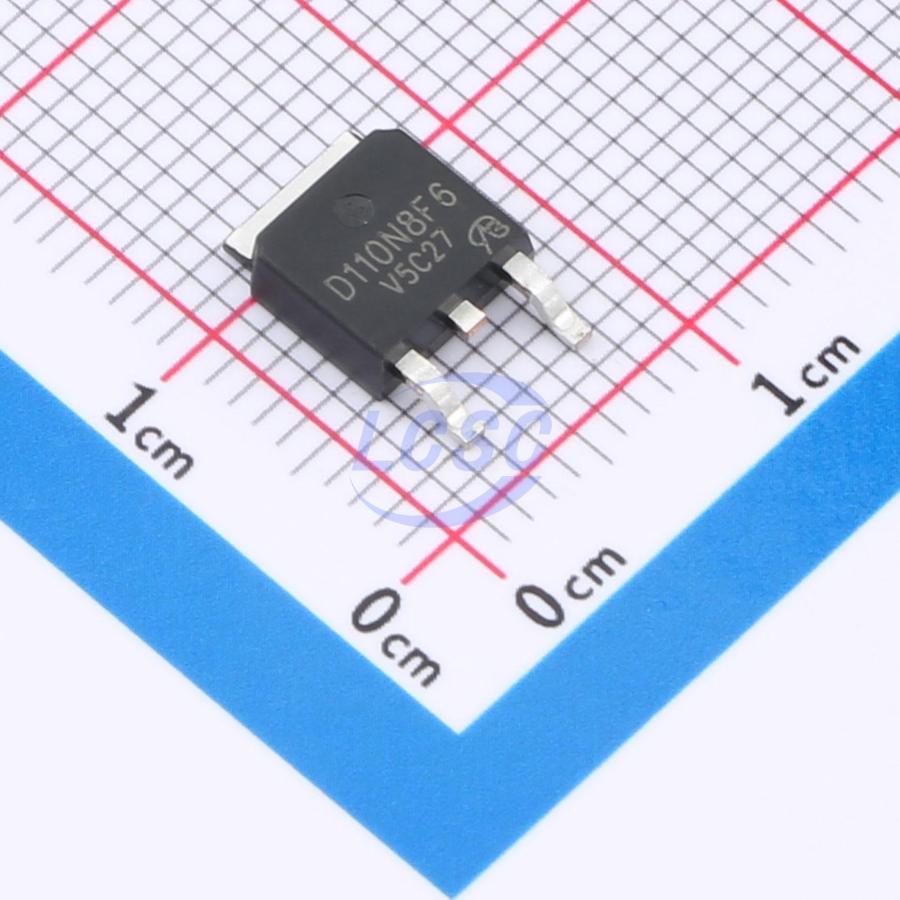

STD110N8F6-VB
N-Channel 80V 120A 150W Surface Mount TO-252
TO-252RoHSActive
MOSFET N-CH 80V 120A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- STD110N8F6-VB
- Store part #
- C47993984
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C47993984
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹164.07 | ₹164.07 |
| 10+ | ₹136.47 | ₹1,364.70 |
| 30+ | ₹122.77 | ₹3,683.10 |
| 100+ | ₹109.09 | ₹10,909.00 |
| 500+ | ₹78.45 | ₹39,225.00 |
| 1,000+ | ₹74.33 | ₹74,330.00 |
1 × ₹164.07
₹164.07
excl. GST
₹193.60 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
STD110N8F6-VB
₹164.07 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 80V
- Current - Continuous Drain(Id)
- 120A
- Output Capacitance(Coss)
- 246pF
- Ciss-Input Capacitance
- 7.6nF
- Pd - Power Dissipation
- 150W
- Reverse Transfer Capacitance (Crss)
- 21pF
- RDS(on)
- 5mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 40nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.62 g
Overview
Applications
- Power Supply
- Uninterruptible Power Supply
- AC/DC Switching Power Supply
- Lighting
- Synchronous Rectification
- DC-DC Converter
- Motor Drive Switch
- DC-AC Inverter
- Solar Micro Inverter
- Class D Audio Amplifier
Key features
- SGT technology power MOSFET
- Maximum junction temperature 175°C
- 100% Rg and UIS tested
- RoHS compliant
- Halogen-free
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IPD046N08N5-VB#C47993816VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 44 | ₹166.98 · 44 in stock | View |
 | FDD86367-VB#C47993993VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 11 | ₹155.88 · 11 in stock | View |
| VBGE1805#C42412504VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | On request | ₹184.43 · 0 in stock | View | |
 | FDD86367-F085-VB#C47993848VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | On request | ₹141.28 · 0 in stock | View |
