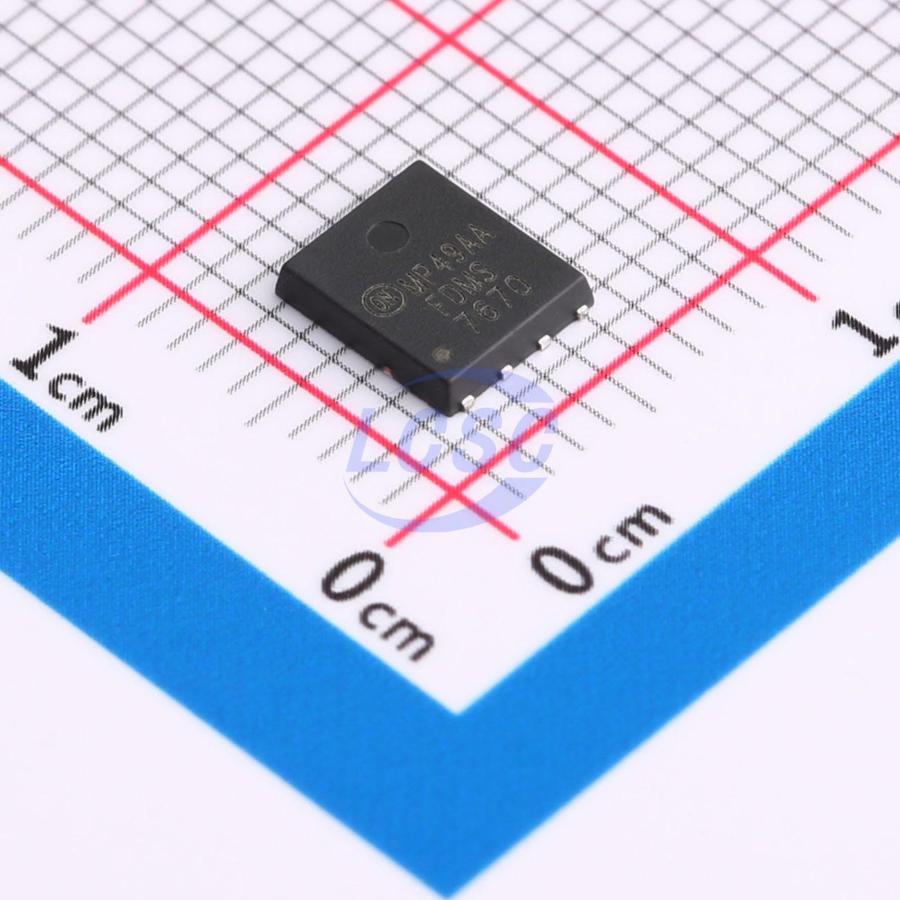

FDMS7670
30V 21A 62W Surface Mount Power-56-8
Power-56-8ROHS3 CompliantActive
MOSFET 30V 21A Power-56-8
- Manufacturer
- onsemi
- Manufacturer part #
- FDMS7670
- Store part #
- C891071
- Package / case
- Power-56-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
100 in stock
#C891071
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹143.18 | ₹143.18 |
| 10+ | ₹119.71 | ₹1,197.10 |
| 30+ | ₹106.90 | ₹3,207.00 |
| 100+ | ₹92.33 | ₹9,233.00 |
| 500+ | ₹85.82 | ₹42,910.00 |
| 1,000+ | ₹82.78 | ₹82,780.00 |
1 × ₹143.18
₹143.18
excl. GST
₹168.95 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
FDMS7670
₹143.18 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 990pF
- Ciss-Input Capacitance
- 3.085nF
- Pd - Power Dissipation
- 62W
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 21A
- Reverse Transfer Capacitance (Crss)
- 115pF
- RDS(on)
- 3.8mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 56nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1.9V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.214 g
Overview
Next generation enhanced body diode technology, engineered for soft recovery. Provides Schottky-like performance with minimum EMI in sync buck converter applications This N-Channel MOSFET has been designed specifically to improve the overall efficiency and to minimize switch node ringing of DC/DC converters using either synchronous or conventional switching PWM controllers. It has been optimized for low gate charge, low rDS(on), fast switching speed and body diode reverse recovery performance.
Applications
- IMVP Vcore Switching for Notebook
- VRM Vcore Switching for Desktop and Server
- OringFET / Load Switch
- DC-DC Conversion
Key features
- Next generation enhanced body diode technology, engineered for soft recovery
- Provides Schottky-like performance with minimum EMI in sync buck converter applications
- Designed specifically to improve the overall efficiency and to minimize switch node ringing of DC/DC converters using either synchronous or conventional switching PWM controllers
- Optimized for low gate charge, low rDS(on), fast switching speed and body diode reverse recovery performance
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BSC030N03MSGATMA1#C672125Infineon · TDSON-8 | Infineon | TDSON-8 | 10 | ₹371.01 · 10 in stock | View |
 | BSC026N04LS#C3039672Infineon · TDSON-8(5x6) | Infineon | TDSON-8(5x6) | 27,370 | ₹94.30 · 27,370 in stock | View |
 | BSC022N04LS#C148266Infineon · TDSON-8(5x6) | Infineon | TDSON-8(5x6) | 25 | ₹941.76 · 25 in stock | View |
 | VBQA1303#C481047VBsemi Elec · DFN5x6-8 | VBsemi Elec | DFN5x6-8 | 44 | ₹130.41 · 44 in stock | View |
 | BSC0901NS#C152424Infineon · TDSON-8(5x6) | Infineon | TDSON-8(5x6) | 5,000 | ₹96.01 · 5,000 in stock | View |
