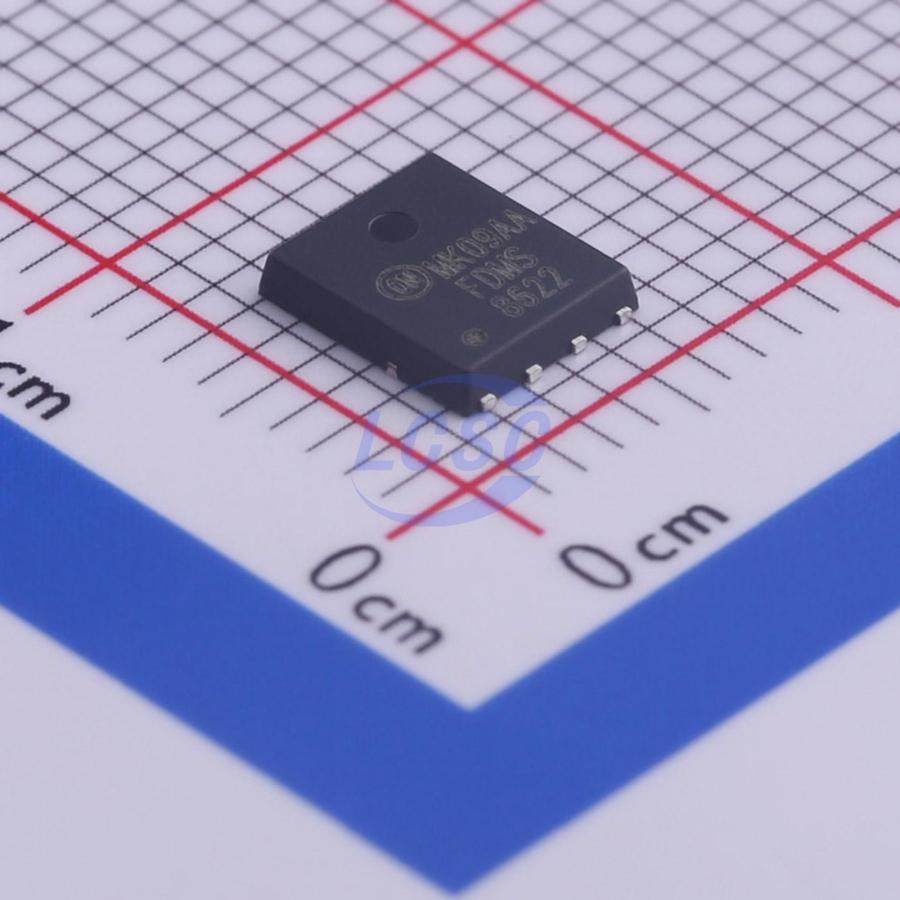

FDMS8622
31W 100V 16.5A 56mΩ@10V 1 N-channel N-Channel PQFN-8(5x6) Single FETs, MOSFETs RoHS
PQFN-8(5x6)ROHS3 CompliantActive
MOSFET N-CH 100V 16.5A PQFN-8(5x6)
- Manufacturer
- onsemi
- Manufacturer part #
- FDMS8622
- Store part #
- C463961
- Package / case
- PQFN-8(5x6)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
100 in stock
#C463961
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹187.44 | ₹187.44 |
| 10+ | ₹153.73 | ₹1,537.30 |
| 30+ | ₹135.25 | ₹4,057.50 |
| 100+ | ₹114.39 | ₹11,439.00 |
| 500+ | ₹105.24 | ₹52,620.00 |
| 1,000+ | ₹101.12 | ₹1,01,120.00 |
1 × ₹187.44
₹187.44
excl. GST
₹221.18 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
FDMS8622
₹187.44 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 95pF
- Ciss-Input Capacitance
- 400pF
- Pd - Power Dissipation
- 31W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 16.5A
- Reverse Transfer Capacitance (Crss)
- 5pF
- RDS(on)
- 56mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 7nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.12 g
Overview
This N-channel MOSFET is manufactured using an advanced PowerTrench process with integrated shield gate technology. The process is optimized for on-resistance (rDS(on)), switching performance, and durability.
Applications
- Power over Ethernet (PoE) protection switch
- DC-DC switch
Key features
- Shield Gate MOSFET technology
- Max rDS(on) = 56 mΩ at VGS = 10 V, ID = 4.8 A
- Max rDS(on) = 88 mΩ at VGS = 6 V, ID = 3.9 A
- High-performance trench technology for ultra-low rDS(on)
- High power and current handling capability in widely used SMT packages
- 100% UI1L tested
- Lead-free, RoHS compliant
