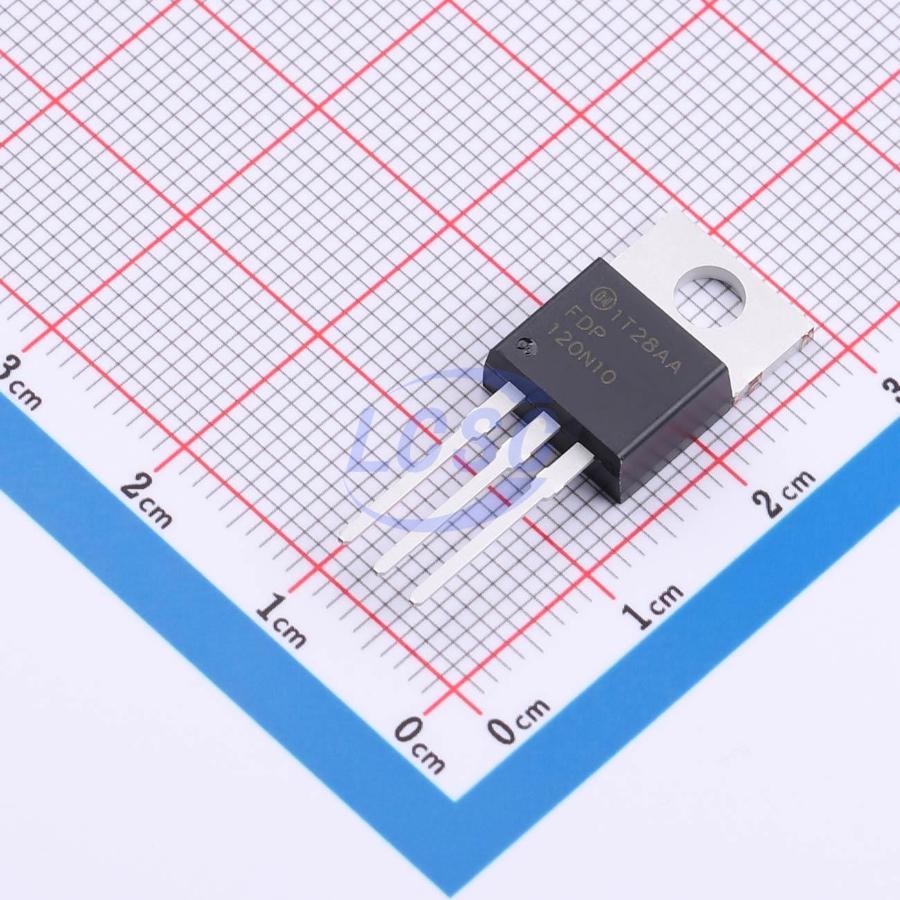

FDP120N10
170W 100V 74A 9.7mΩ@10V 1 N-channel N-Channel TO-220 Single FETs, MOSFETs RoHS
TO-220ROHS3 CompliantActive
- Manufacturer
- onsemi
- Manufacturer part #
- FDP120N10
- Store part #
- C898587
- Package / case
- TO-220
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
25 in stock
#C898587
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹580.33 | ₹580.33 |
| 10+ | ₹572.38 | ₹5,723.80 |
| 30+ | ₹567.01 | ₹17,010.30 |
| 100+ | ₹561.64 | ₹56,164.00 |
1 × ₹580.33
₹580.33
excl. GST
₹684.79 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 800 per tube
FDP120N10
₹580.33 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 405pF
- Ciss-Input Capacitance
- 4.215nF
- Pd - Power Dissipation
- 170W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 74A
- Reverse Transfer Capacitance (Crss)
- 170pF
- RDS(on)
- 9.7mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 66nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 800 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.236 g
Overview
This N-channel MOSFET is manufactured using the advanced PowerTrench® process, which is specifically tailored to minimize on-resistance while maintaining superior switching performance.
Applications
- Synchronous rectification for ATX/server/communication PSU
- Battery protection circuits
- Motor drives and UPS
- Micro photovoltaic inverters
Key features
- RDS(on) = 9.7 mΩ (Typ.) @ VGS = 10 V, ID = 74 A
- Fast switching speed
- Low gate charge
- High-performance trench technology for ultra-low RDS(on)
- High power and high current handling capability
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AUP074N10#C5440040ANHI · TO-220 | ANHI | TO-220 | 6 | ₹59.91 · 6 in stock | View |
| DMTH10H010LCT#C177040DIODES · TO-220-3 | DIODES | TO-220-3 | 19 | ₹469.43 · 19 in stock | View | |
 | IXFP130N10T2-JSM#C55112051JSMSEMI · TO-220-3 | JSMSEMI | TO-220-3 | 100 | ₹127.18 · 100 in stock | View |
 | DMTH10H005SCT-HXY#C51949345HXY MOSFET · TO-220C | HXY MOSFET | TO-220C | 37 | ₹205.33 · 37 in stock | View |
 | IPP045N10N3GXKSA1-HXY#C53262898HXY MOSFET · TO-220C | HXY MOSFET | TO-220C | 38 | ₹176.83 · 38 in stock | View |
