VBsemi ElecDatasheet (PDF)

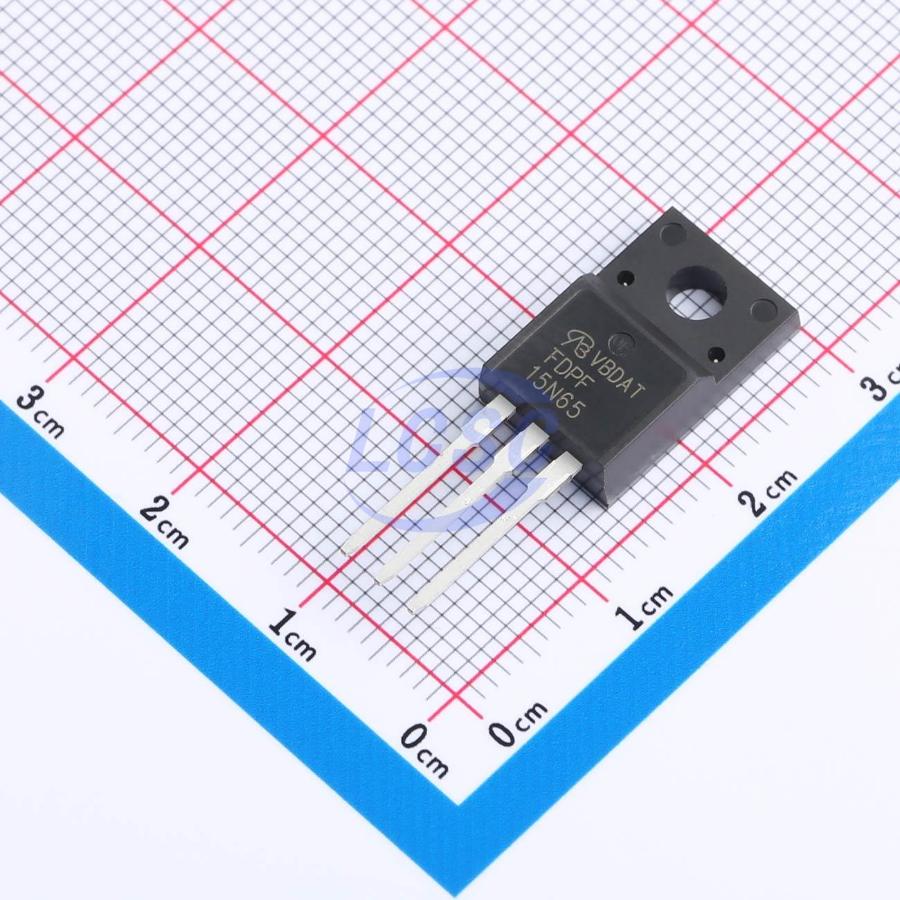

FDPF15N65-VB
N-Channel 650V 20A 30W Through Hole TO-220F
TO-220FRoHSActive
MOSFET N-CH 650V 20A TO-220F
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- FDPF15N65-VB
- Store part #
- C20626308
- Package / case
- TO-220F
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15 in stock
#C20626308
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹210.08 | ₹210.08 |
| 10+ | ₹176.99 | ₹1,769.90 |
| 50+ | ₹149.34 | ₹7,467.00 |
| 100+ | ₹128.89 | ₹12,889.00 |
| 500+ | ₹119.52 | ₹59,760.00 |
| 1,000+ | ₹115.38 | ₹1,15,380.00 |
1 × ₹210.08
₹210.08
excl. GST
₹247.89 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
FDPF15N65-VB
₹210.08 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 650V
- Output Capacitance(Coss)
- 118pF
- Current - Continuous Drain(Id)
- 20A
- Ciss-Input Capacitance
- 2.414nF
- Pd - Power Dissipation
- 30W
- Reverse Transfer Capacitance (Crss)
- 4pF
- RDS(on)
- 170mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 110nC@10V
- Gate Threshold Voltage (Vgs(th))
- 5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 6 g
Overview
Applications
- Synchronous Rectification - Power Supply
Key features
- Low figure-of-merit (FOM) R_on×Q_g
- Low input capacitance (C_iss)
- Reduced switching and conduction losses
- Ultra low gate charge (Q_g)
- Avalanche energy rated (UIS)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FDPF15N65YDTU-VB#C19190143VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 38 | ₹200.14 · 38 in stock | View |
 | SPA11N60CFD-VB#C20755245VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 50 | ₹224.01 · 50 in stock | View |
 | TK12A60U-VB#C20755434VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 13 | ₹185.27 · 13 in stock | View |
 | TSF12N60S-VB#C29779058VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 10 | ₹185.27 · 10 in stock | View |
 | STF15NM60ND-VB#C29779207VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 5 | ₹185.27 · 5 in stock | View |
