VBsemi ElecDatasheet (PDF)

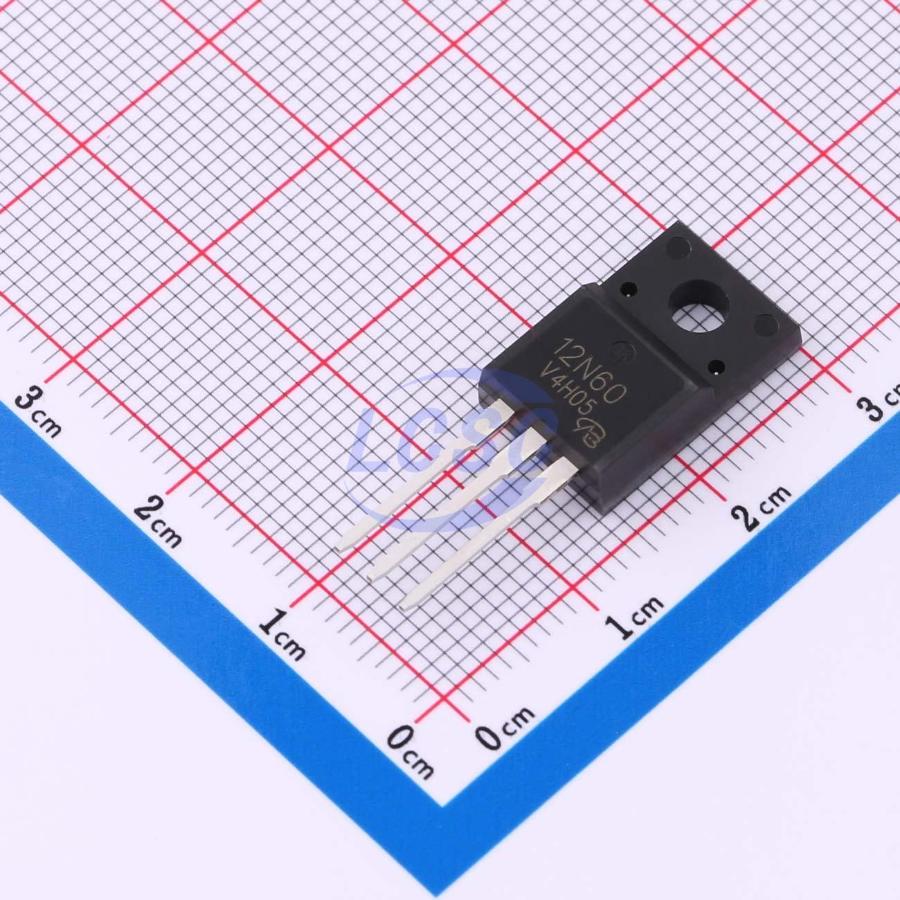

TSF12N60S-VB
N-Channel 650V 20A 30W Through Hole TO-220F
TO-220FRoHSActive
MOSFET N-CH 650V 20A TO-220F
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- TSF12N60S-VB
- Store part #
- C29779058
- Package / case
- TO-220F
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C29779058
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹185.27 | ₹185.27 |
| 10+ | ₹153.35 | ₹1,533.50 |
| 50+ | ₹135.70 | ₹6,785.00 |
| 100+ | ₹115.75 | ₹11,575.00 |
| 500+ | ₹106.92 | ₹53,460.00 |
| 1,000+ | ₹102.93 | ₹1,02,930.00 |
1 × ₹185.27
₹185.27
excl. GST
₹218.62 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
TSF12N60S-VB
₹185.27 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 650V
- Output Capacitance(Coss)
- 118pF
- Current - Continuous Drain(Id)
- 20A
- Ciss-Input Capacitance
- 2.414nF
- Pd - Power Dissipation
- 30W
- Reverse Transfer Capacitance (Crss)
- 4pF
- RDS(on)
- 170mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 109nC
- Vgs
- ±30V
- Gate Threshold Voltage (Vgs(th))
- 5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.6 g
Overview
Applications
- Synchronous Rectification
- Power Supply
Key features
- Low figure-of-merit (FOM) Rₒₙ × Q₉
- Low input capacitance (Cᵢₛₛ)
- Reduced switching and conduction losses
- Ultra low gate charge (Ω₉)
- Avalanche energy rated (UIS)
