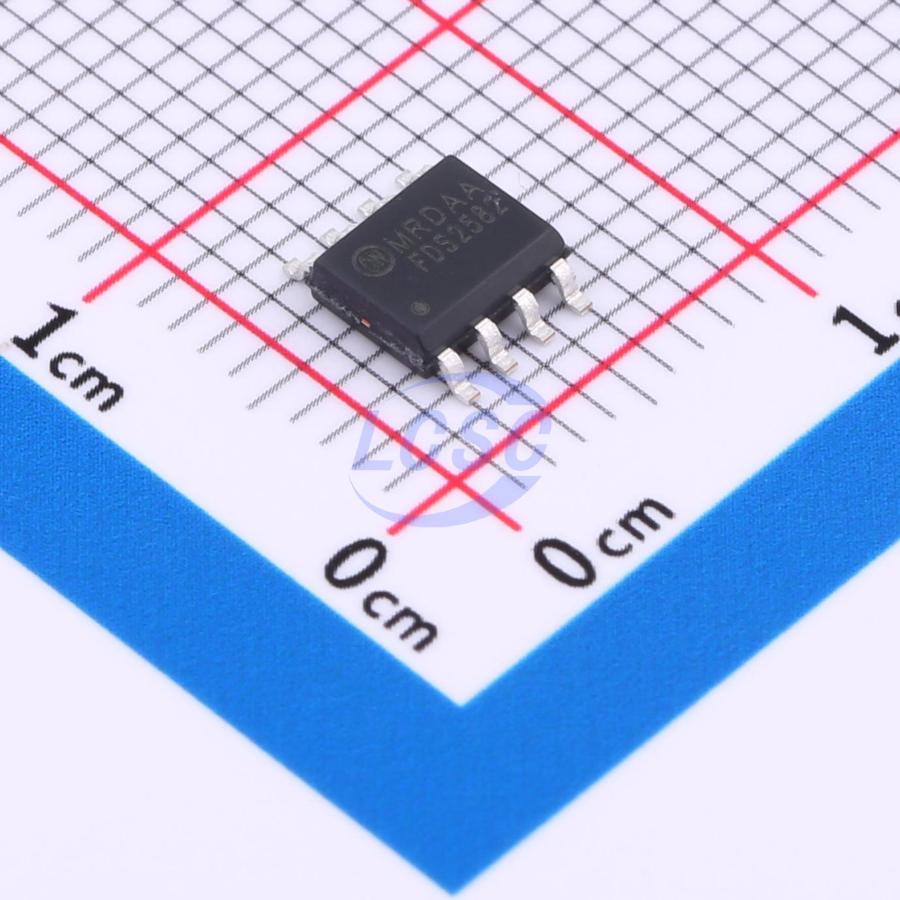

FDS2582
N-Channel 150V 4.1A 2.5W Surface Mount SO-8
SO-8ROHS3 CompliantActive
MOSFET N-CH 150V 4.1A SO-8
- Manufacturer
- onsemi
- Manufacturer part #
- FDS2582
- Store part #
- C455164
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,506 in stock
#C455164
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹131.47 | ₹131.47 |
| 10+ | ₹119.73 | ₹1,197.30 |
| 30+ | ₹113.22 | ₹3,396.60 |
| 100+ | ₹105.83 | ₹10,583.00 |
| 500+ | ₹102.57 | ₹51,285.00 |
| 1,000+ | ₹101.05 | ₹1,01,050.00 |
1 × ₹131.47
₹131.47
excl. GST
₹155.13 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
FDS2582
₹131.47 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 150pF
- Ciss-Input Capacitance
- 1.29nF
- Pd - Power Dissipation
- 2.5W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 150V
- Current - Continuous Drain(Id)
- 4.1A
- Reverse Transfer Capacitance (Crss)
- 32pF
- RDS(on)
- 66mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 19nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.123 g
Overview
Applications
- DC/DC converters and Off-Line UPS
- Distributed Power Architectures and VRMs
- Primary Switch for 24V and 48V Systems
- High Voltage Synchronous Rectifier
- Direct Injection / Diesel Injection Systems
- 42V Automotive Load Control
- Electronic Valve Train Systems
Key features
- RDS(ON) = 57mΩ (Typ.), VGS = 10V, ID = 4.1A
- Qg(tot) = 10nC (Typ.), VGS = 10V
- Low Miller Charge
- Low QRR Body Diode
- Optimized efficiency at high frequencies
- UIS Capability (Single Pulse and Repetitive Pulse)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FDS2572#C903616onsemi · SO-8 | onsemi | SO-8 | 808 | ₹104.94 · 808 in stock | View |
 | WSP08N15#C3825100Winsok Semicon · SOP-8 | Winsok Semicon | SOP-8 | 1,043 | ₹71.67 · 1,043 in stock | View |
 | IRF7815TRPBF#C537831Infineon · SO-8 | Infineon | SO-8 | 100 | ₹131.96 · 100 in stock | View |
 | IRF7494TRPBF-VB#C7569018VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 20 | ₹94.13 · 20 in stock | View |
 | FDS2672-NL-VB#C19188181VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 15 | ₹229.49 · 15 in stock | View |
