VBsemi ElecDatasheet (PDF)

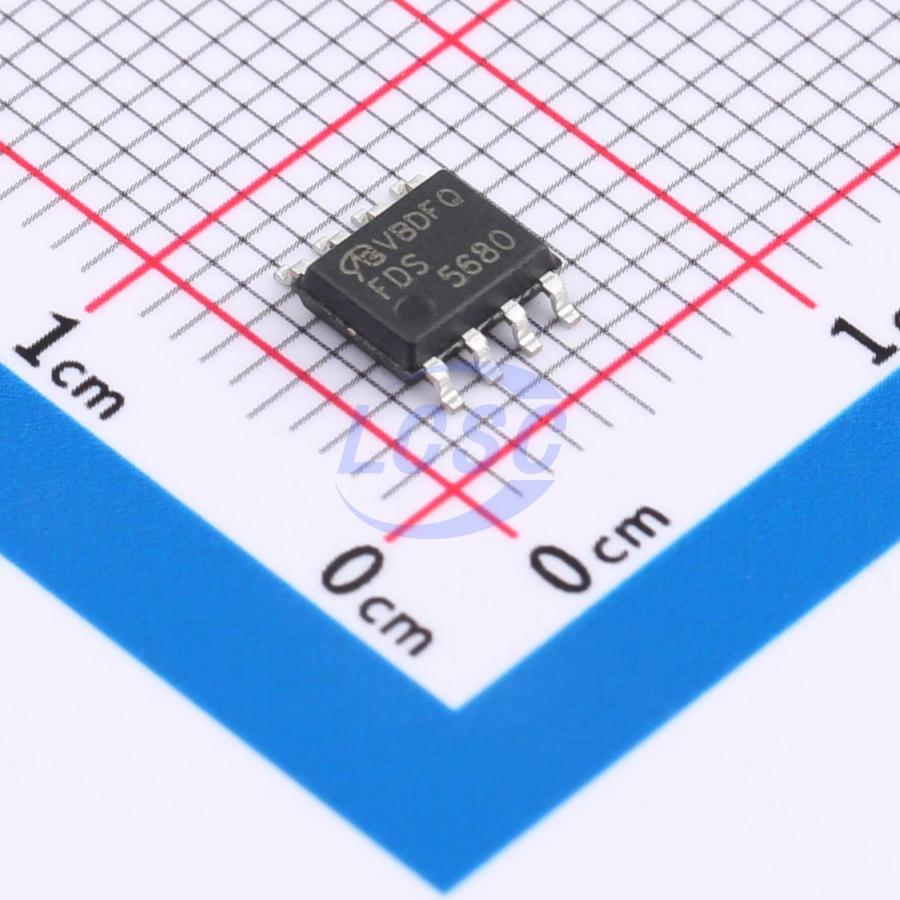

FDS5680-NL-VB
60V 7.6A 11.2W 35mΩ@4.5V 1 N-channel N-Channel SOP-8 Single FETs, MOSFETs
SOP-8RoHSActive
MOSFET N-CH 60V 7.6A SOP-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- FDS5680-NL-VB
- Store part #
- C18795023
- Package / case
- SOP-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
16 in stock
#C18795023
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹75.11 | ₹75.11 |
| 10+ | ₹62.05 | ₹620.50 |
| 30+ | ₹56.61 | ₹1,698.30 |
| 100+ | ₹49.64 | ₹4,964.00 |
| 500+ | ₹33.96 | ₹16,980.00 |
| 1,000+ | ₹32.23 | ₹32,230.00 |
1 × ₹75.11
₹75.11
excl. GST
₹88.63 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
FDS5680-NL-VB
₹75.11 for 1 + GST
Specifications
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 90pF
- Current - Continuous Drain(Id)
- 7.6A
- Ciss-Input Capacitance
- 1.1nF
- Pd - Power Dissipation
- 11.2W
- Reverse Transfer Capacitance (Crss)
- 55pF
- RDS(on)
- 35mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 10.5nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.12 g
Overview
Applications
- Cold Cathode Fluorescent Lamp (CCFL) inverter
Key features
- Compliant with IEC 61249-2-21 halogen-free requirements
- Trench power MOSFET
- Optimized for "low-side" synchronous rectifier operation
- 100% Rg and UIS tested
- Available in RoHS-compliant halogen-free package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FDS5682-NL-VB#C22389459VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 20 | ₹65.75 · 20 in stock | View |
 | AFN4440WS8RG-VB#C41369978VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 20 | ₹58.19 · 20 in stock | View |
 | CEM6426-VB#C41370120VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 10 | ₹61.68 · 10 in stock | View |
 | CMS9475-VB#C41370136VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 10 | ₹61.68 · 10 in stock | View |
 | VBA1630#C416229VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 10 | ₹68.07 · 10 in stock | View |
