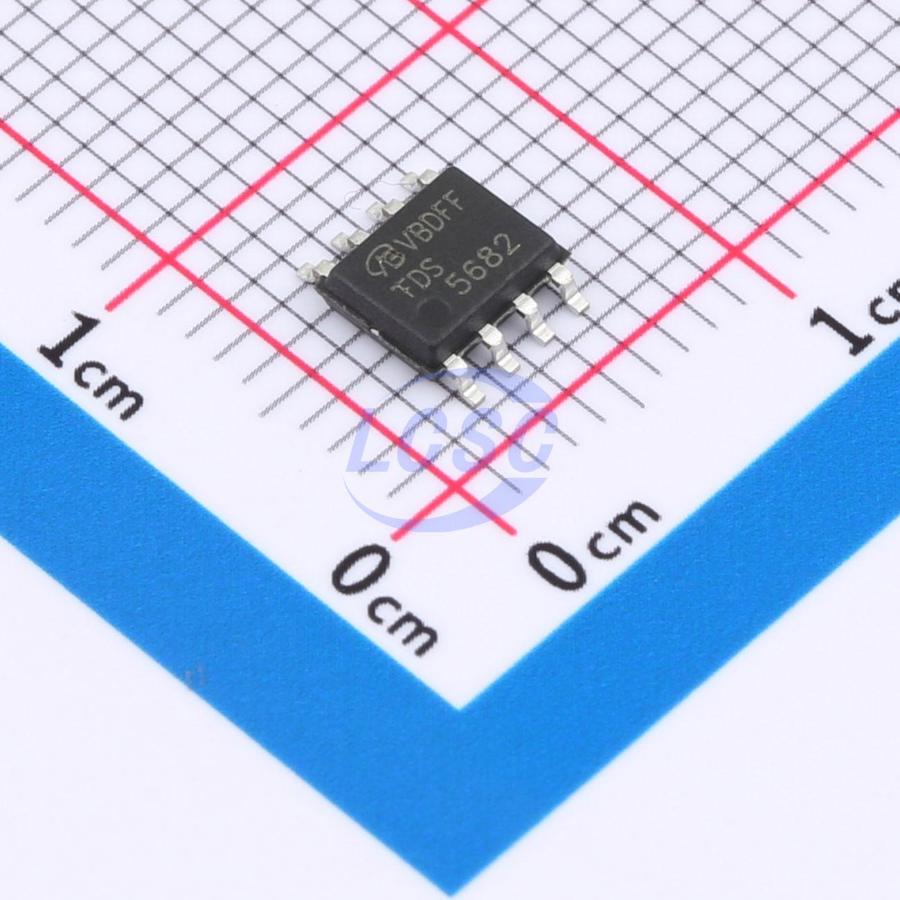

FDS5682-NL-VB
N-Channel 60V 7.6A 11.2W Surface Mount SO-8
SO-8RoHSActive
MOSFET N-CH 60V 7.6A SO-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- FDS5682-NL-VB
- Store part #
- C22389459
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C22389459
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹65.75 | ₹65.75 |
| 10+ | ₹51.68 | ₹516.80 |
| 30+ | ₹45.59 | ₹1,367.70 |
| 100+ | ₹38.02 | ₹3,802.00 |
| 500+ | ₹34.66 | ₹17,330.00 |
| 1,000+ | ₹32.56 | ₹32,560.00 |
1 × ₹65.75
₹65.75
excl. GST
₹77.58 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
FDS5682-NL-VB
₹65.75 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 7.6A
- Output Capacitance(Coss)
- 90pF
- Ciss-Input Capacitance
- 1.1nF
- Pd - Power Dissipation
- 11.2W
- Reverse Transfer Capacitance (Crss)
- 55pF
- RDS(on)
- 35mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 10.5nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.2 g
Overview
Applications
- Cold Cathode Fluorescent Lamp (CCFL) inverter
Key features
- Compliant with IEC 61249-2-21 halogen-free standard
- Trench power MOSFET
- Optimized for "low-side" synchronous rectifier operation
- 100% Rg and UIS tested
- RoHS-compliant halogen-free product available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FDS5680-NL-VB#C18795023VBsemi Elec · SOP-8 | VBsemi Elec | SOP-8 | 16 | ₹75.11 · 16 in stock | View |
 | AFN4440WS8RG-VB#C41369978VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 20 | ₹58.19 · 20 in stock | View |
 | CEM6426-VB#C41370120VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 10 | ₹61.68 · 10 in stock | View |
 | CMS9475-VB#C41370136VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 10 | ₹61.68 · 10 in stock | View |
 | VBA1630#C416229VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 10 | ₹68.07 · 10 in stock | View |
