onsemiDatasheet (PDF)

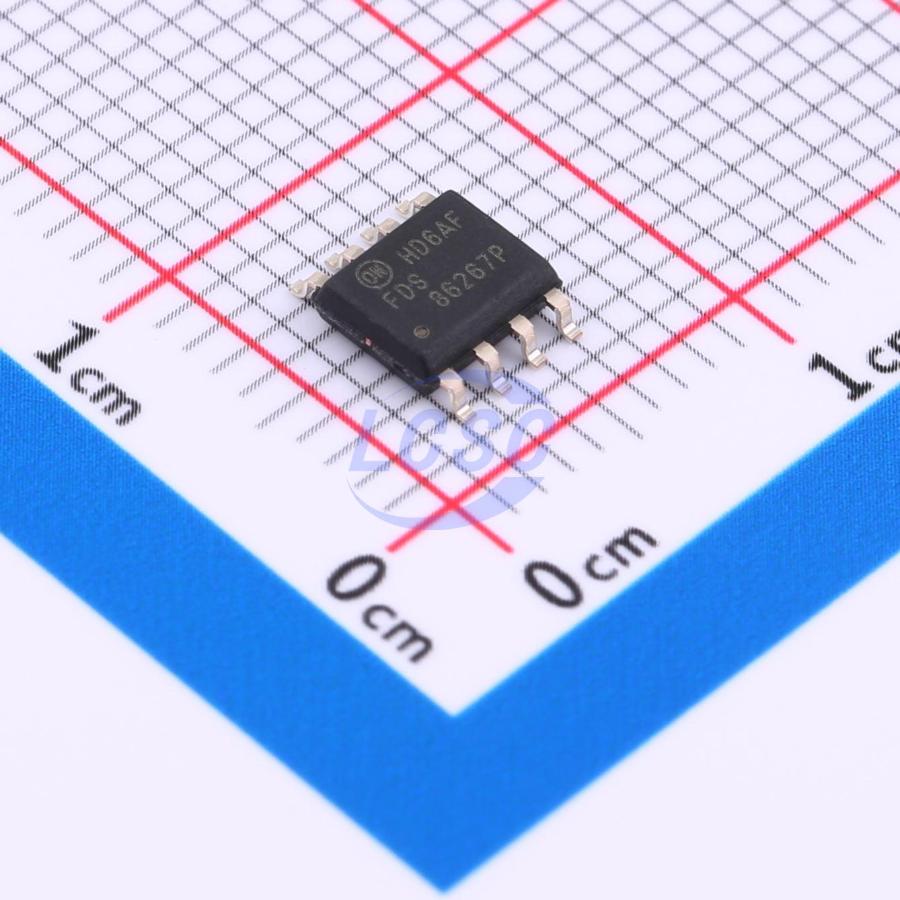

FDS86267P
P-Channel 150V 2.2A 2.5W Surface Mount SO-8
SO-8ROHS3 CompliantActive
MOSFET P-CH 150V 2.2A SO-8
- Manufacturer
- onsemi
- Manufacturer part #
- FDS86267P
- Store part #
- C556463
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
80 in stock
#C556463
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹184.93 | ₹184.93 |
| 10+ | ₹153.64 | ₹1,536.40 |
| 30+ | ₹136.47 | ₹4,094.10 |
| 100+ | ₹116.91 | ₹11,691.00 |
| 500+ | ₹108.43 | ₹54,215.00 |
| 1,000+ | ₹104.53 | ₹1,04,530.00 |
1 × ₹184.93
₹184.93
excl. GST
₹218.22 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
FDS86267P
₹184.93 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 54pF
- Ciss-Input Capacitance
- 1.13nF
- Pd - Power Dissipation
- 2.5W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 150V
- Current - Continuous Drain(Id)
- 2.2A
- Reverse Transfer Capacitance (Crss)
- 1.6pF
- RDS(on)
- 255mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 16nC@10V
- Vgs
- ±25V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.25 g
Overview
This P-Channel MOSFET is produced using advanced PowerTrench® process that incorporates shielded gate technology. The process has been optimized for the on-state resistance and yet maintain superior switching performance.
Applications
- Active Clamp Switch
- Load Switch
Key features
- Very Low rDS(on) Mid Voltage P -channel Silicon Technology Optimised for Low Ω2g
- This Product is Optimised for Fast Switching Applications as well as Load Switch Applications
- 100% UIL Tested
- RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HSM01P15#C2903557HUASHUO · SOP-8 | HUASHUO | SOP-8 | 600 | ₹37.49 · 600 in stock | View |
 | FTE02P15G#C5142124ARK micro · SOP-8 | ARK micro | SOP-8 | 181 | ₹203.12 · 181 in stock | View |
 | SI4455DY-T1-GE3#C241861VISHAY · SO-8 | VISHAY | SO-8 | 466 | ₹138.12 · 466 in stock | View |
 | TPM1504PHS8#C22358670TECH PUBLIC · SOP-8 | TECH PUBLIC | SOP-8 | 441 | ₹86.30 · 441 in stock | View |
 | FDS86267P-TP#C22358681TECH PUBLIC · SOP-8 | TECH PUBLIC | SOP-8 | 465 | ₹88.87 · 465 in stock | View |
