MDD(Microdiode Semiconductor)
2N7002KN-Channel 60V 300mA 300mW Surface Mount SOT-23
From
₹2.32
25,99,250 in stock
onsemiDatasheet (PDF)

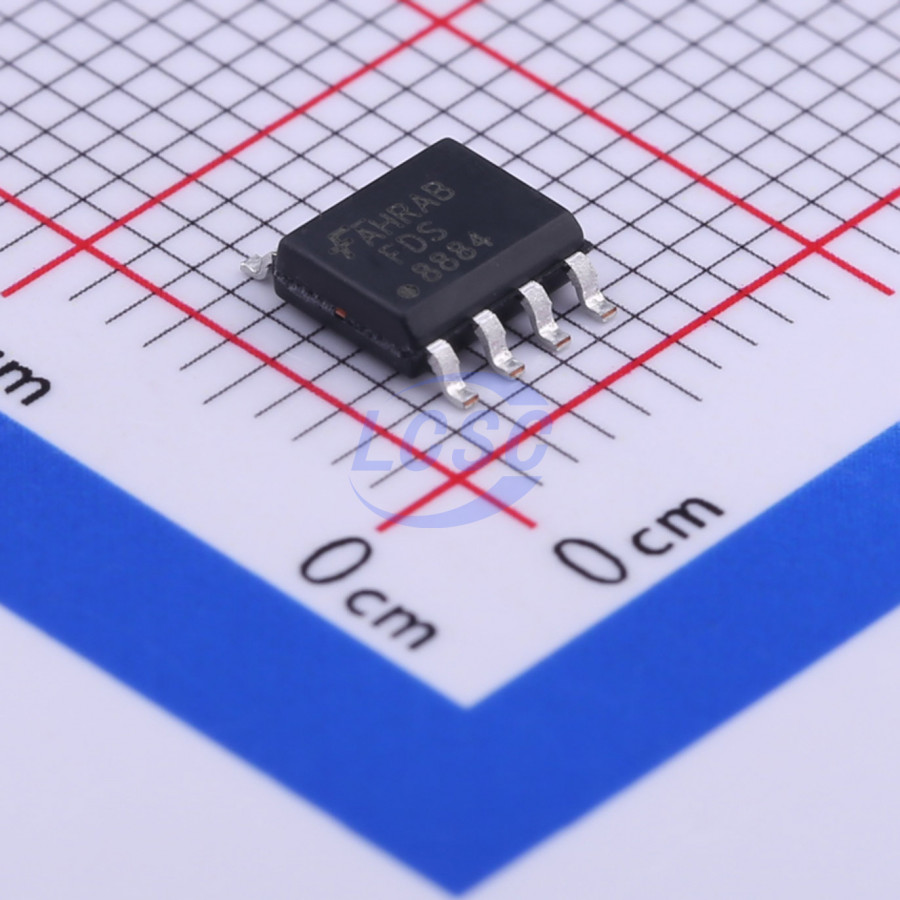

FDS8884
N-Channel 30V 8.5A 2.5W Surface Mount SO-8
SO-8ROHS3 CompliantActive
MOSFET N-CH 30V 8.5A SO-8
- Manufacturer
- onsemi
- Manufacturer part #
- FDS8884
- Store part #
- C10883
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
175 in stock
#C10883
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹77.41 | ₹77.41 |
| 10+ | ₹61.53 | ₹615.30 |
| 30+ | ₹53.71 | ₹1,611.30 |
| 100+ | ₹45.88 | ₹4,588.00 |
| 500+ | ₹41.11 | ₹20,555.00 |
| 1,000+ | ₹38.71 | ₹38,710.00 |
1 × ₹77.41
₹77.41
excl. GST
₹91.34 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
FDS8884
₹77.41 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 135pF
- Ciss-Input Capacitance
- 635pF
- Pd - Power Dissipation
- 2.5W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 8.5A
- Reverse Transfer Capacitance (Crss)
- 100pF
- RDS(on)
- 30mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 13nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.207 g
Overview
This N-Channel MOSFET has been designed specifically to improve the overall efficiency of DC/DC converters using either synchronous or conventional switching PWM controllers. It has been optimized for low gate charge, low rDS(on) and fast switching speed.
Key features
- Max rDS(on)=23mΩ at VGS=10V , ID=8.5A
- Max rDS(on)=30mΩ at VGS=4.5V , lD=7.5A
- Low gate charge
- 100% RG Tested
- RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DOS9N03#C42386218DOINGTER · SOP-8 | DOINGTER | SOP-8 | 2,320 | ₹6.50 · 2,320 in stock | View |
 | CEM3172#C154311CET(Chino-Excel Tech) · SOP-8 | CET(Chino-Excel Tech) | SOP-8 | 15 | ₹25.31 · 15 in stock | View |
 | IRF8714TRPBF#C434803Infineon · SO-8 | Infineon | SO-8 | 743 | ₹132.13 · 743 in stock | View |
 | DMN3030LSS-13#C177032DIODES · SO-8 | DIODES | SO-8 | On request | ₹38.68 · 0 in stock | View |
 | SL4468A#C41369464Slkor · SOP-8 | Slkor | SOP-8 | 3,730 | ₹12.28 · 3,730 in stock | View |
