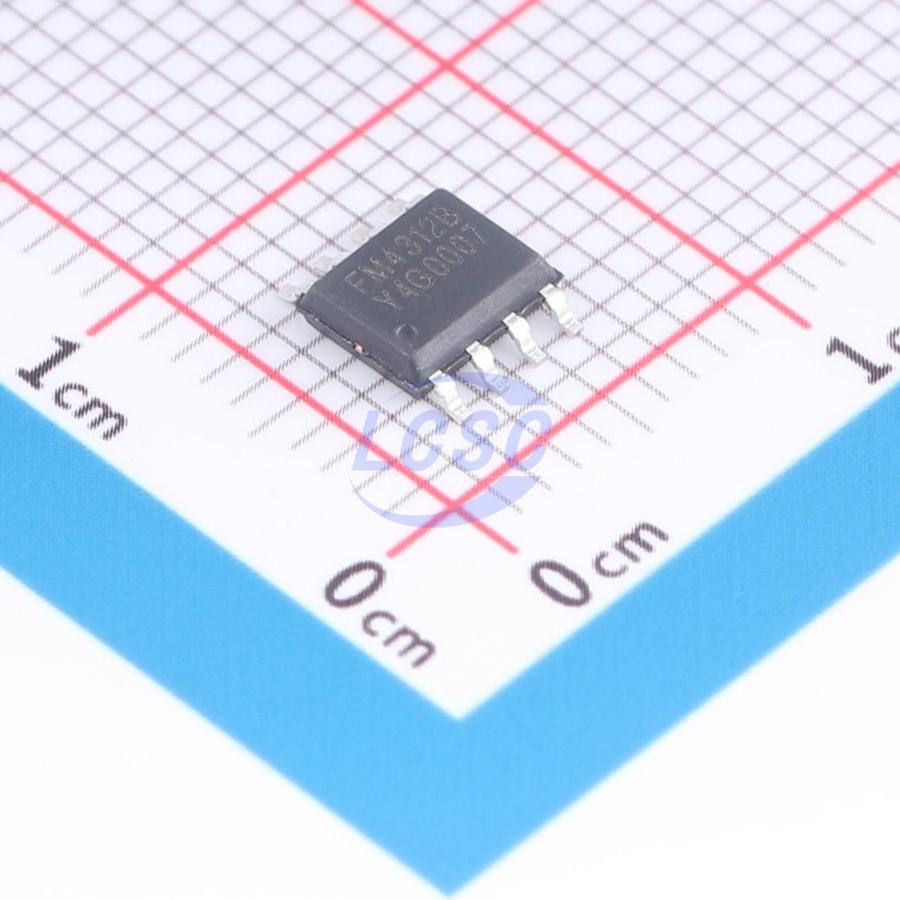

FM4312B
Lithium Battery SOP-8-150mil Battery Management
- Manufacturer
- FM
- Manufacturer part #
- FM4312B
- Store part #
- C53413683
- Package / case
- SOP-8-150mil
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,630 in stock
#C53413683
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.64 | ₹86.40 |
| 100+ | ₹6.87 | ₹687.00 |
| 300+ | ₹5.98 | ₹1,794.00 |
| 1,000+ | ₹5.31 | ₹5,310.00 |
| 4,000+ | ₹4.78 | ₹19,120.00 |
| 8,000+ | ₹4.51 | ₹36,080.00 |
10 × ₹8.64
₹86.40
excl. GST
₹101.95 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
FM4312B
₹86.40 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 268uA
- Operating Voltage
- 3V~5.5V
- Type of Battery
- Lithium Battery
- The Chip Type
- Charging IC
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.165 g
Overview
The FM4312 series is a highly integrated and reliable two-cell lithium battery boost charging management IC. The charging current is configured via an external RCS resistor. The charging system integrates both CC and CV charging modes, with the boost switching charge converter operating at a maximum frequency of 1MHz. With a 5V input voltage and a built-in adaptive loop, it intelligently adjusts the charging current to match all adapters. It controls the switching of an external NMOS to raise and lower inductor current, achieving energy transfer. The minimal peripheral components reduce overall solution size and BOM cost. Comprehensive protection features are integrated, including input undervoltage, battery overvoltage, and chip overtemperature protection. Available in SOP8 and ESOP8 packages, with a rated operating temperature range of -40°C ~ 85°C.
Applications
- Two-cell series lithium battery charging
- Walkie-talkies, massagers, etc.
- Bluetooth speakers
- E-cigarettes
- Power tools
Key features
- Input voltage operating range: 3.0V ~ 6.5V
- Trickle/constant current/constant voltage charging
- Externally adjustable charging current
- Input adaptive charging, compatible with all adapters
- Switching frequency up to 1MHz
- LED charge status indication support
- Chip enable input control
- Input undervoltage and battery overvoltage protection
- Battery NTC protection (ESOP8 package)
- OTP thermal protection
