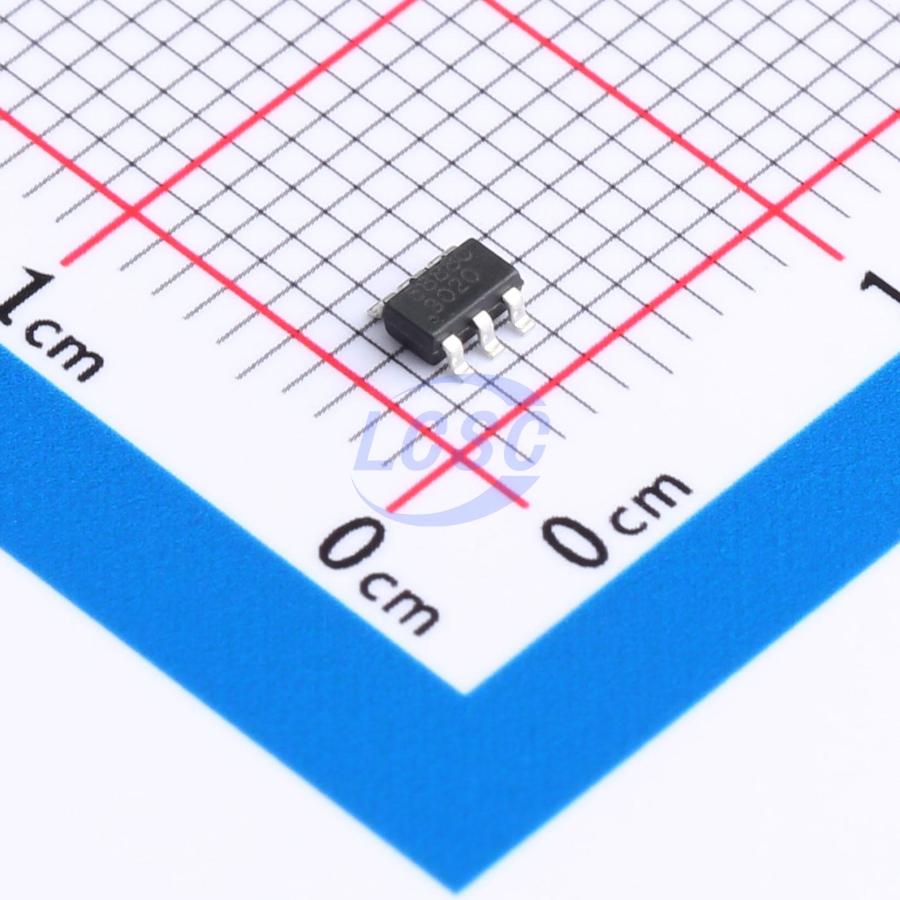

FM5888C

Power Supply Controller 12W SOT-23-6 Power Management - Specialized RoHS

SOT-23-6ROHS CompliantActive

USB Dedicated Charging Port Controller

Manufacturer: FM
Manufacturer part #: FM5888C
Store part #: C255618
Package / case: SOT-23-6
Category: Power Management - Specialized
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,510 in stock

#C255618

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
10+	₹5.94	₹59.40
100+	₹4.76	₹476.00
300+	₹4.17	₹1,251.00
3,000+	₹3.73	₹11,190.00
6,000+	₹3.37	₹20,220.00
9,000+	₹3.20	₹28,800.00

Quantity (min 10, multiples of 10)

10 × ₹5.94

₹59.40

excl. GST

₹70.09 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

FM5888C

₹59.40 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Type: Power Supply Controller
Features: Automatic protocol detection
Protocol: BC 1.2
Operating Temperature: -40℃~+125℃
Output Power: 12W
Voltage - Supply: 4.5V~5.5V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.045 g

Overview

The FM5887C and FM5888C are USB dedicated charging port (DCP) controllers. An auto-detect feature monitors USB data line voltage, and automatically provides the correct electrical signatures on the data lines to charge compliant devices among the following dedicated charging schemes: 1. Divider DCP, required to apply 2.7 V and 2.7 V on the D+ and D- Lines respectively 2. BC1.2 DCP, required to short the D+ Line to the D- Line 3. Chinese Telecom Standard YD/T 1591-2009 Shorted Mode, required to short the D+ Line to the D- Line

Applications

Vehicle USB Power Charger
AC-DC Adapter with USB Port
Other USB Charger

Key features

Supports USB DCP Shorting D+ Line to D- Line per USB Battery Charging Specification, Revision 1.2 (BC1.2)
Supports Shorted Mode D+ Line to D- Line per Chinese Telecommunication Industry Standard YD/T 1591-2009
Supports USB DCP Applying 2.7 V on D+ Line and 2.7 V on D- Line
Operating Voltage Range: 4.5V to 5.5V
