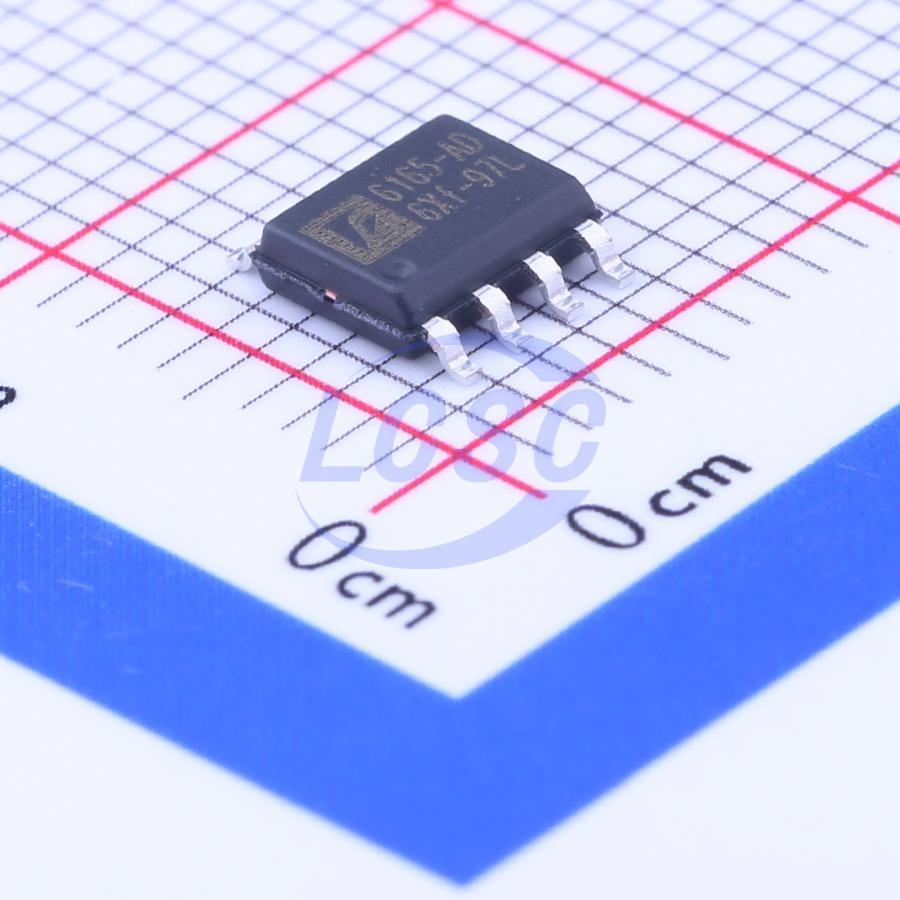

FP6165ADXR-G1

1.5MHz Step-down type Adjustable 600mV~5.5V 3A SOP-8-EP Voltage Regulators - DC DC Switching Regulators RoHS

SOP-8-EPROHS CompliantActive

1.5MHz, 3A Synchronous Step-Down Regulator

Manufacturer: Advanced Analog Technology
Manufacturer part #: FP6165ADXR-G1
Store part #: C77233
Package / case: SOP-8-EP
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,393 in stock

#C77233

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
1+	₹71.48	₹71.48
10+	₹56.93	₹569.30
30+	₹49.55	₹1,486.50
100+	₹42.38	₹4,238.00
500+	₹38.02	₹19,010.00
1,000+	₹35.85	₹35,850.00

Quantity (min 1)

1 × ₹71.48

₹71.48

excl. GST

₹84.35 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

FP6165ADXR-G1

₹71.48 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃
Frequency - Switching: 1.5MHz
Function: Step-down type
Number of Outputs: 1
Features: Cycle-by-cycle current limiting;Hiccup current limiting;Operating status indication
Output Type: Adjustable
Topology: Buck
Operating Voltage: 2.5V~5.5V
Switch tube (built-in/external): Built-in
Output Voltage: 600mV~5.5V
Output Current: 3A
Quiescent Current: 100uA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.42 g

Overview

The FP6165 is a high efficiency current mode synchronous buck PWM DC-DC regulator. The internal generated 0.6V precision feedback reference voltage is designed for low output voltage. Low RDS (ON) synchronous switch dramatically reduces conduction loss. To extend battery life for portable application, 100% duty cycle is supported for low-dropout operation. Shutdown mode also helps saving the current consumption. The FP6165 is packaged in MSOP-10L, DFN-10L and SOP-8L to reduce PCB space.

Applications

Cellular Telephone
Wireless and DSL Modems
Digital Still Cameras
Portable Products
MP3 Players

Key features

Input Voltage Range: 2.5 to 5.5V
Adjustable Output Voltage From 0.6V to VIN
Precision Feedback Reference Voltage: 0.6V (±2%)
Output Current: 3A (Max.)
Duty Cycle: 0~100%
Internal Fixed PWM Frequency: 1.5MHz
Low Quiescent Current: 100μA
No Schottky Diode Required
Built-in Soft Start
Current Mode Operation
Over Temperature Protection
Package: MSOP-10L (EP), DFN-10L, SOP-8L (EP)
