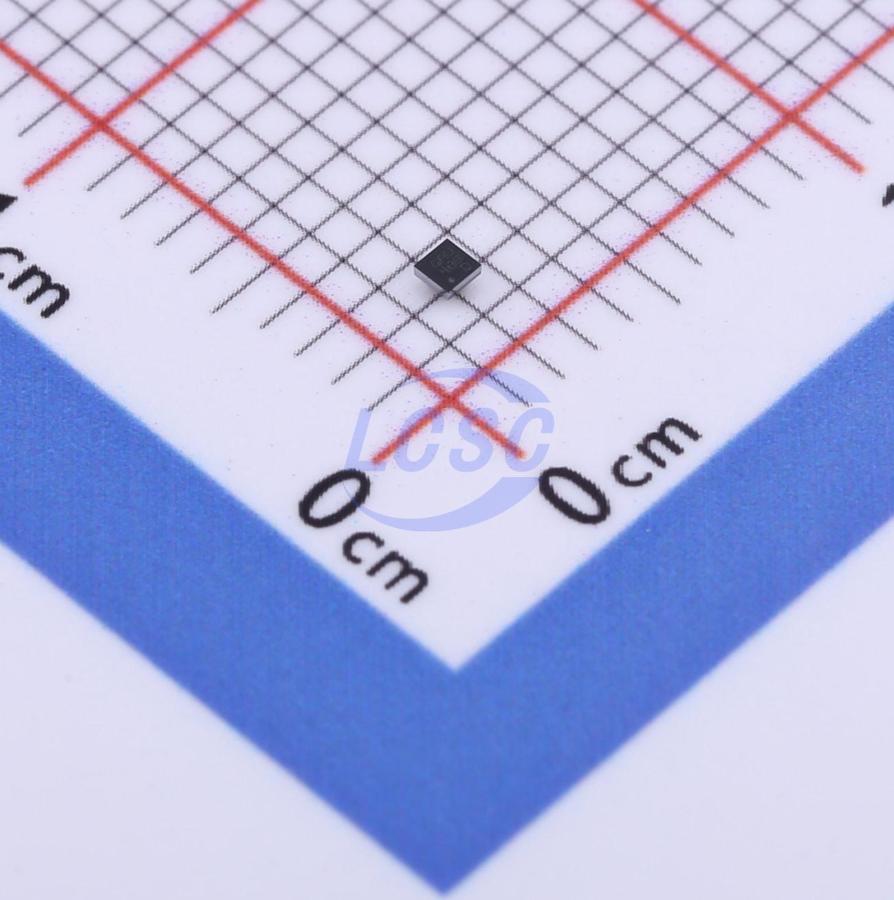

FPF1504BUCX

The FPF1504/FPF1504L are low−RDS P−channel MOSFET load switches of the IntelliMAX family. Integrated slew−rate control prevents excessive inrush current from the supply rails with capacitive loads common in power applications. In addition, the FPF1504/FPF1504L feature output discharge capability. The input voltage range operates from 1.0 V to 3.6 V to fulfill today’s mobile device supply requirements. Switch control is by a logic input (ON pin) capable of interfacing directly with low−voltage CMOS control signals and GPIOs in embedded processors.

Applications

• Mobile Devices and Smart Phones
• Portable Media Devices
• Digital Cameras
• Advanced Notebook, UMPC, and MID
• Portable Medical Devices
• GPS and Navigation Equipment

Key features

• 1.0 V to 3.6 V Input Voltage Operating Range
• Typical RDS(ON):
• 15 mΩ at VIN = 3.3 V
• 20 mΩ at VIN = 1.8 V
• 40 mΩ at VIN = 1.0 V
• Slew Rate Control
• Output Discharge Function
• Low <1 μA Quiescent Current at VON = VIN
• ESD Protected: 4000 V HBM, 2000 V CDM
• GPIO/CMOS−Compatible Enable Circuitry
• Active HIGH and active LOW versions
