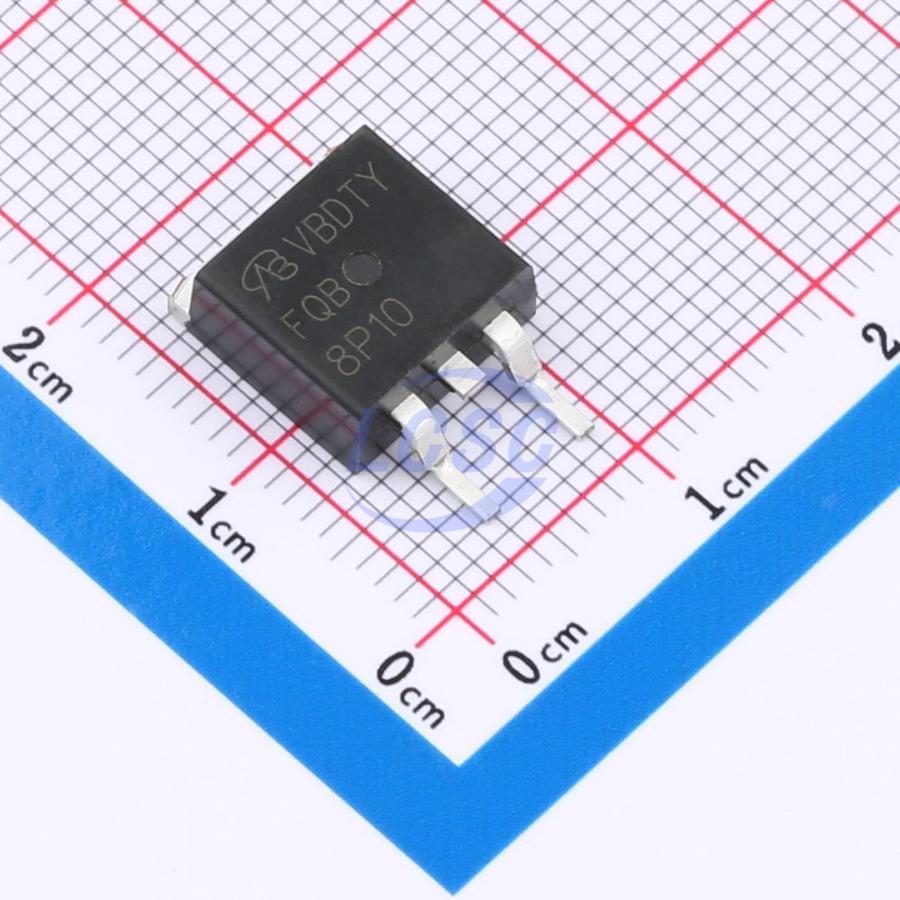

FQB8P10TM-VB
P-Channel 100V 12A 2.1W Surface Mount TO-263(D2Pak)
TO-263(D2PAK)RoHSActive
MOSFET P-CH 100V 12A TO-263(D2PAK)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- FQB8P10TM-VB
- Store part #
- C47993837
- Package / case
- TO-263(D2PAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C47993837
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹87.90 | ₹87.90 |
| 10+ | ₹71.35 | ₹713.50 |
| 50+ | ₹63.19 | ₹3,159.50 |
| 100+ | ₹55.02 | ₹5,502.00 |
| 500+ | ₹50.08 | ₹25,040.00 |
| 1,000+ | ₹47.72 | ₹47,720.00 |
1 × ₹87.90
₹87.90
excl. GST
₹103.72 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
FQB8P10TM-VB
₹87.90 for 1 + GST
Specifications
- Drain to Source Voltage
- 100V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 330pF
- Current - Continuous Drain(Id)
- 12A
- Ciss-Input Capacitance
- 2.765nF
- Pd - Power Dissipation
- 2.1W
- Reverse Transfer Capacitance (Crss)
- 280pF
- RDS(on)
- 240mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 67nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.4 g
Overview
Applications
- Power switch
- Load switch for high-current applications
- DC/DC converter
Key features
- Compliant with halogen-free requirements as defined by IEC 61249-2-21
- Trench power MOSFET
- 100% tested for gate resistance (Rg) and unclamped inductive switching (UIS)
- Compliant with RoHS Directive 2002/95/EC
