VBsemi ElecDatasheet (PDF)

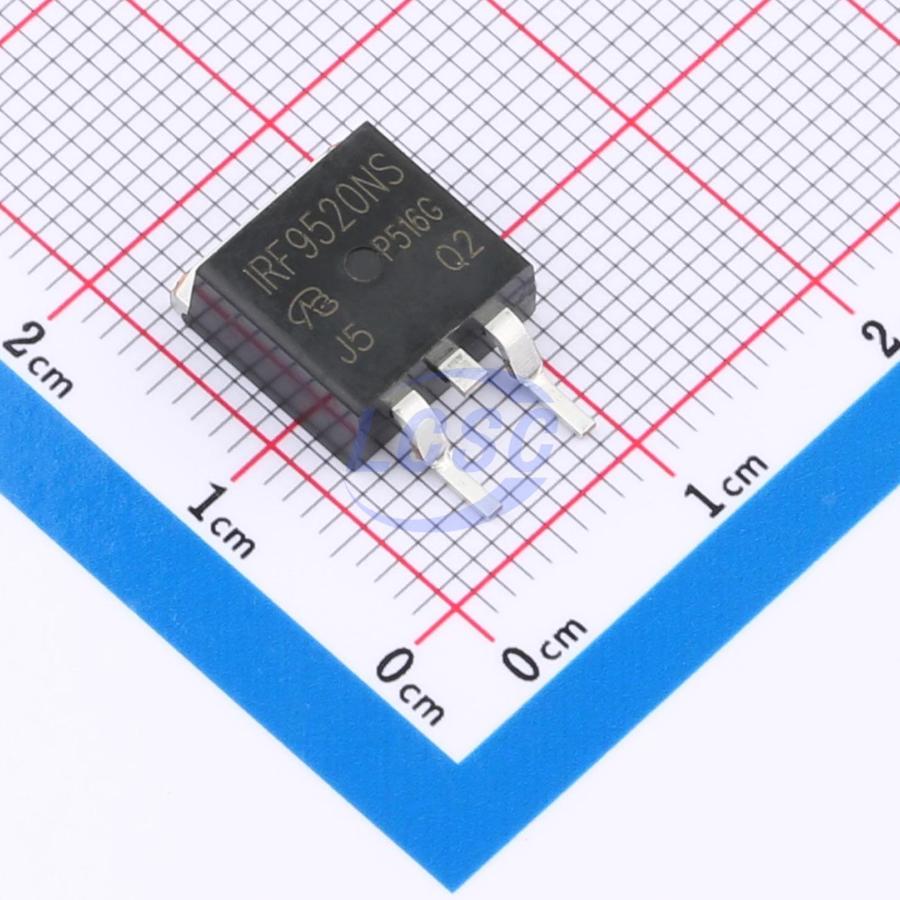

IRF9520NSTRR-VB
P-Channel 100V 12A 2.1W Surface Mount TO-263(D2Pak)
TO-263(D2PAK)RoHSActive
MOSFET P-CH 100V 12A TO-263(D2PAK)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- IRF9520NSTRR-VB
- Store part #
- C47993804
- Package / case
- TO-263(D2PAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
51 in stock
#C47993804
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹94.05 | ₹94.05 |
| 10+ | ₹77.50 | ₹775.00 |
| 30+ | ₹69.02 | ₹2,070.60 |
| 100+ | ₹60.74 | ₹6,074.00 |
| 500+ | ₹50.72 | ₹25,360.00 |
| 1,000+ | ₹48.33 | ₹48,330.00 |
1 × ₹94.05
₹94.05
excl. GST
₹110.98 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 800 per reel
IRF9520NSTRR-VB
₹94.05 for 1 + GST
Specifications
- Drain to Source Voltage
- 100V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 330pF
- Current - Continuous Drain(Id)
- 12A
- Ciss-Input Capacitance
- 2.765nF
- Pd - Power Dissipation
- 2.1W
- Reverse Transfer Capacitance (Crss)
- 280pF
- RDS(on)
- 240mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 67nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 800 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.4 g
Overview
Applications
- Power Switch - Load Switch for High-Current Applications - DC/DC Converter
Key features
- Halogen-free compliant per IEC 61249-2-21
- Trench power MOSFET
- 100% Rg and UIS tested
- RoHS compliant per directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FQB8P10-VB#C20755025VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 18 | ₹82.56 · 18 in stock | View |
 | IRF9530STRLPBF-VB#C47993801VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 20 | ₹89.04 · 20 in stock | View |
 | IPB19DP10NMATMA1-VB#C47993818VBsemi Elec · D2PAK(TO-263) | VBsemi Elec | D2PAK(TO-263) | 9 | ₹94.70 · 9 in stock | View |
 | FQB8P10TM-VB#C47993837VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 10 | ₹87.90 · 10 in stock | View |
 | IRF9520SPBF-VB#C47993927VBsemi Elec · D2PAK(TO-263) | VBsemi Elec | D2PAK(TO-263) | 10 | ₹89.04 · 10 in stock | View |
