HXY MOSFETDatasheet (PDF)

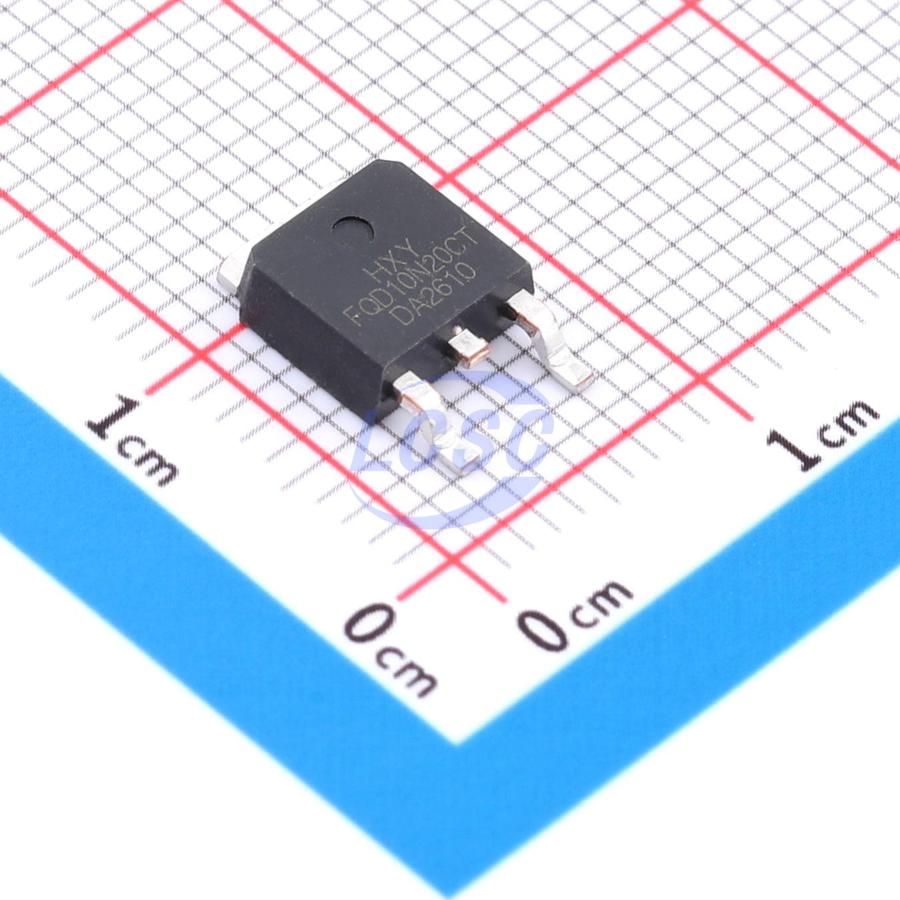

FQD10N20CTM_F080-HXY
72W 200V 9A 235mΩ@10V 1 N-channel N-Channel TO-252-2L Single FETs, MOSFETs
TO-252-2LRoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- FQD10N20CTM_F080-HXY
- Store part #
- C54582602
- Package / case
- TO-252-2L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
47 in stock
#C54582602
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹79.53 | ₹79.53 |
| 10+ | ₹64.52 | ₹645.20 |
| 30+ | ₹57.02 | ₹1,710.60 |
| 100+ | ₹49.73 | ₹4,973.00 |
| 500+ | ₹45.23 | ₹22,615.00 |
| 1,000+ | ₹42.88 | ₹42,880.00 |
1 × ₹79.53
₹79.53
excl. GST
₹93.85 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
FQD10N20CTM_F080-HXY
₹79.53 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 85pF
- Ciss-Input Capacitance
- 720pF
- Pd - Power Dissipation
- 72W
- Operating Temperature
- -55℃~+150℃
- Configuration
- Standalone
- Drain to Source Voltage
- 200V
- Current - Continuous Drain(Id)
- 9A
- Reverse Transfer Capacitance (Crss)
- 22pF
- RDS(on)
- 235mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 21nC@10V
- Vgs
- ±30V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.398 g
Overview
FQD10N20CTM_F080 is suitable for various power switching circuits, enabling system miniaturization and higher efficiency. Available in TO-252-2L package, RoHS compliant.
Applications
- Battery protection
- Load switch
- Uninterruptible power supply
Key features
- VDS = 200V, ID = 9A
- RDS(ON) < 270mΩ (at VGS = 10V)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FQD10N20TM-HXY#C54582584HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 30 | ₹28.67 · 30 in stock | View |
 | FQD10N20TF-HXY#C54582586HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 48 | ₹73.74 · 48 in stock | View |
 | FQD10N20CTF-HXY#C54582588HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 48 | ₹73.74 · 48 in stock | View |
 | FQD10N20LTM-HXY#C54582597HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 44 | ₹76.52 · 44 in stock | View |
 | FQD10N20LTF-HXY#C54582598HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 44 | ₹219.92 · 44 in stock | View |
