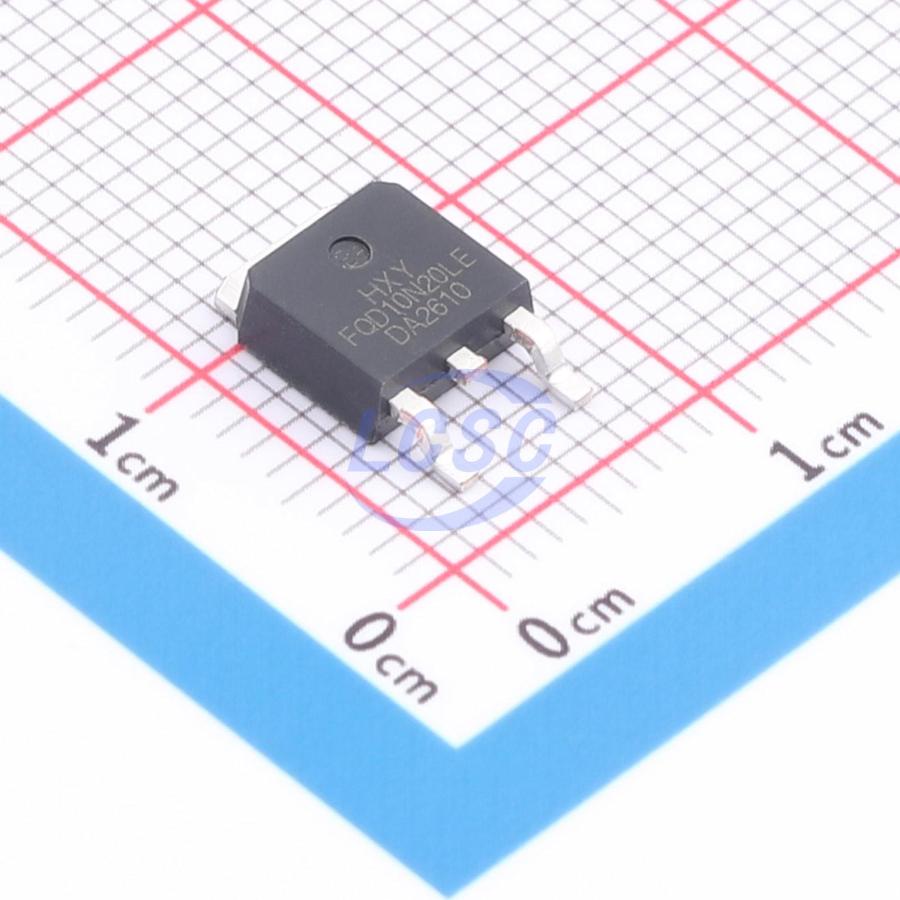

HXY MOSFET

FQD10N20LTF-HXY

72W 200V 9A 235mΩ@10V 1 N-channel N-Channel TO-252-2L Single FETs, MOSFETs

TO-252-2LRoHSActive

Manufacturer: HXY MOSFET
Manufacturer part #: FQD10N20LTF-HXY
Store part #: C54582598
Package / case: TO-252-2L
Category: Single FETs, MOSFETs
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

44 in stock

#C54582598

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹219.92	₹219.92
10+	₹185.14	₹1,851.40
30+	₹166.02	₹4,980.60
100+	₹144.55	₹14,455.00
500+	₹134.88	₹67,440.00
1,000+	₹130.58	₹1,30,580.00

Quantity (min 1)

1 × ₹219.92

₹219.92

excl. GST

₹259.51 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

FQD10N20LTF-HXY

₹219.92 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Capacitance(Coss): 85pF
Ciss-Input Capacitance: 720pF
Pd - Power Dissipation: 72W
Operating Temperature: -55℃~+150℃
Configuration: Standalone
Drain to Source Voltage: 200V
Current - Continuous Drain(Id): 9A
Reverse Transfer Capacitance (Crss): 22pF
RDS(on): 235mΩ@10V
Number: 1 N-channel
Gate Charge(Qg): 21nC@10V
Vgs: ±30V
Gate Threshold Voltage (Vgs(th)): 4V
Type: N-Channel

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.4 g

Overview

FQD10N20LTF is suitable for various power switching circuits, enabling system miniaturization and higher efficiency. Available in TO-252-2L package, RoHS compliant.

Applications

Battery protection
Load switch
Uninterruptible power supply

Key features

Drain-Source Voltage VDS = 200V, Drain Current ID = 9A
On-State Resistance RDS(ON) < 270mΩ at Gate-Source Voltage VGS = 10V
