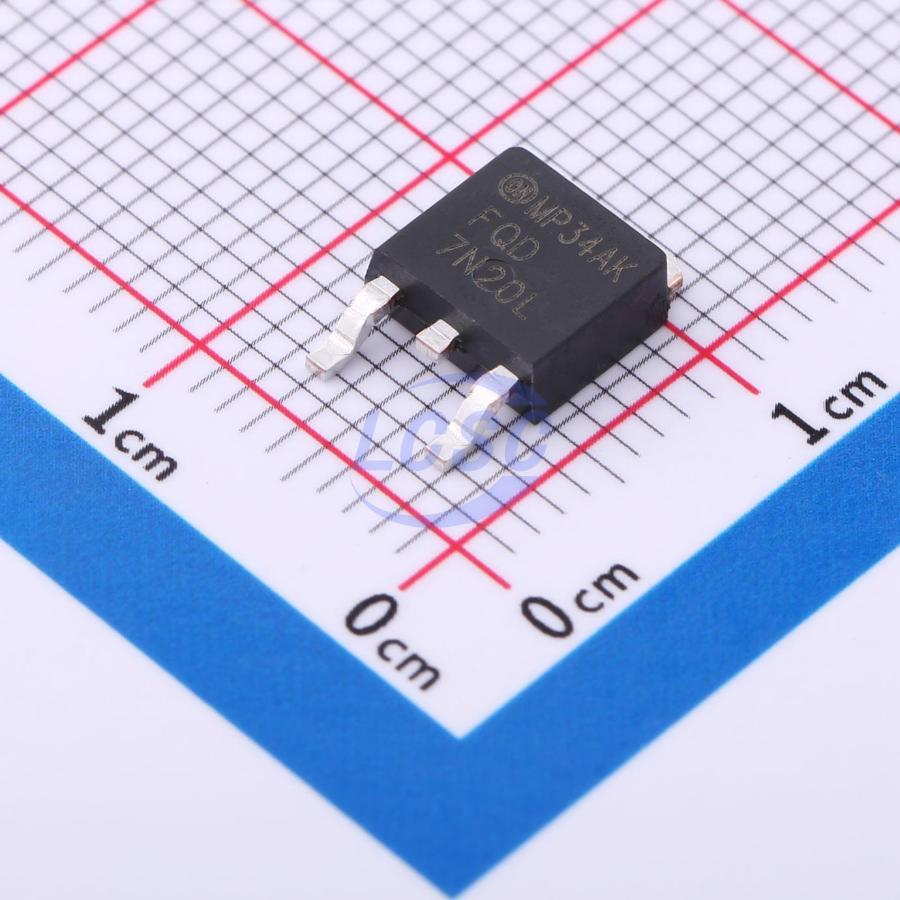

FQD7N20LTM
N-Channel 200V 5.5A 2.5W Surface Mount DPAK
DPAKROHS3 CompliantActive
MOSFET N-CH 200V 5.5A DPAK
- Manufacturer
- onsemi
- Manufacturer part #
- FQD7N20LTM
- Store part #
- C463488
- Package / case
- DPAK
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
19 in stock
#C463488
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹83.02 | ₹83.02 |
| 10+ | ₹81.27 | ₹812.70 |
| 30+ | ₹80.19 | ₹2,405.70 |
| 100+ | ₹79.10 | ₹7,910.00 |
1 × ₹83.02
₹83.02
excl. GST
₹97.96 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
FQD7N20LTM
₹83.02 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 70pF
- Ciss-Input Capacitance
- 500pF
- Pd - Power Dissipation
- 2.5W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 200V
- Current - Continuous Drain(Id)
- 5.5A
- Reverse Transfer Capacitance (Crss)
- 11pF
- RDS(on)
- 750mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 9nC@160V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.38 g
Overview
This N-Channel enhancement mode power MOSFET is produced using Fairchild Semiconductor’s proprietary planar stripe and DMOS technology. This advanced MOSFET technology has been especially tailored to reduce on-state resistance, and to provide superior switching performance and high avalanche energy strength. These devices are suitable for switched mode power supplies, active power factor correction (PFC), and electronic lamp ballasts.
Applications
- switched mode power supplies
- active power factor correction (PFC)
- electronic lamp ballasts
Key features
- 5.5 A, 200 V, RDS(on)=750 mΩ (Max.) @ VGS=10 V, ID=2.75 A
- Low Gate Charge (Typ. 6.8 nC)
- Low Crss (Typ. 8.5 pF)
- 100% Avalanche Tested
- RoHS Compliant
- Low Level Gate Drive Requirement Allowing Direct Operating from Logic Drivers
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HD12N20L#C49823471Huixin · TO-252 | Huixin | TO-252 | 2,172 | ₹102.55 · 2,172 in stock | View |
| STD9N40M2#C672183ST · DPAK | ST | DPAK | 34 | ₹93.28 · 34 in stock | View | |
 | STD5NM50T4-VB#C7463514VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 50 | ₹136.47 · 50 in stock | View |
 | FDD8N50NZTM-VB#C7525025VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 25 | ₹138.77 · 25 in stock | View |
 | STD8NF25#C457500ST · DPAK | ST | DPAK | 107 | ₹87.12 · 107 in stock | View |
