VBsemi ElecDatasheet (PDF)

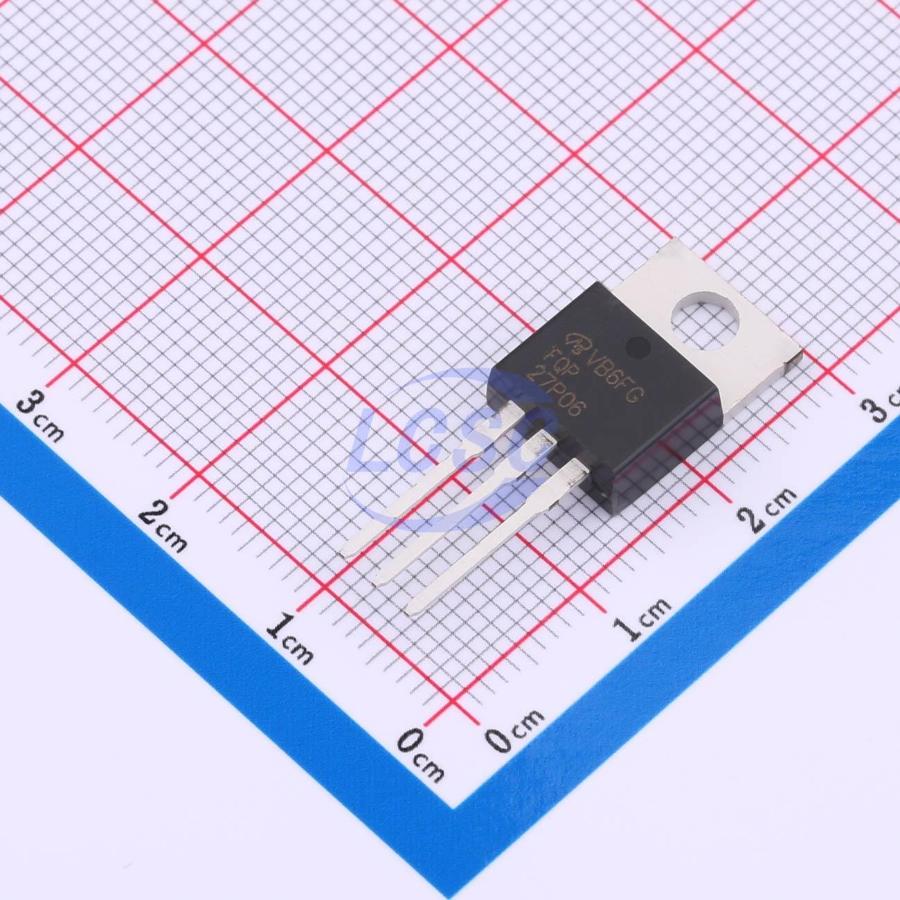

FQP27P06-VB
P-Channel 60V 45A Through Hole TO-220AB
TO-220ABRoHSActive
MOSFET P-CH 60V 45A TO-220AB
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- FQP27P06-VB
- Store part #
- C7463430
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
63 in stock
#C7463430
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹138.69 | ₹138.69 |
| 10+ | ₹118.01 | ₹1,180.10 |
| 50+ | ₹79.04 | ₹3,952.00 |
| 100+ | ₹68.58 | ₹6,858.00 |
| 500+ | ₹62.49 | ₹31,245.00 |
| 1,000+ | ₹59.23 | ₹59,230.00 |
1 × ₹138.69
₹138.69
excl. GST
₹163.65 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
FQP27P06-VB
₹138.69 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 330pF
- Current - Continuous Drain(Id)
- 45A
- Ciss-Input Capacitance
- 2.065nF
- Reverse Transfer Capacitance (Crss)
- 280pF
- RDS(on)
- 48mΩ@10V;56mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 67nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.718 g
Overview
Applications
- Power Switch
- Load Switch in High Current Applications
- DC/DC Converters
Key features
- Halogen-free According to IEC 61249-2-21 Definition
- TrenchFET Power MOSFET
- 100% Rg and UIS Tested
- Compliant to RoHS Directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RFP30P06-VB#C693362VBsemi Elec · TO-220AB-3 | VBsemi Elec | TO-220AB-3 | 15 | ₹119.71 · 15 in stock | View |
 | RFP30P05-VB#C19188152VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 27 | ₹107.14 · 27 in stock | View |
 | 2SJ174-VB#C19190122VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 21 | ₹126.69 · 21 in stock | View |
 | 2SJ542-VB#C19711205VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 10 | ₹108.38 · 10 in stock | View |
 | 2SJ602-VB#C22389884VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 10 | ₹102.93 · 10 in stock | View |
