VBsemi ElecDatasheet (PDF)

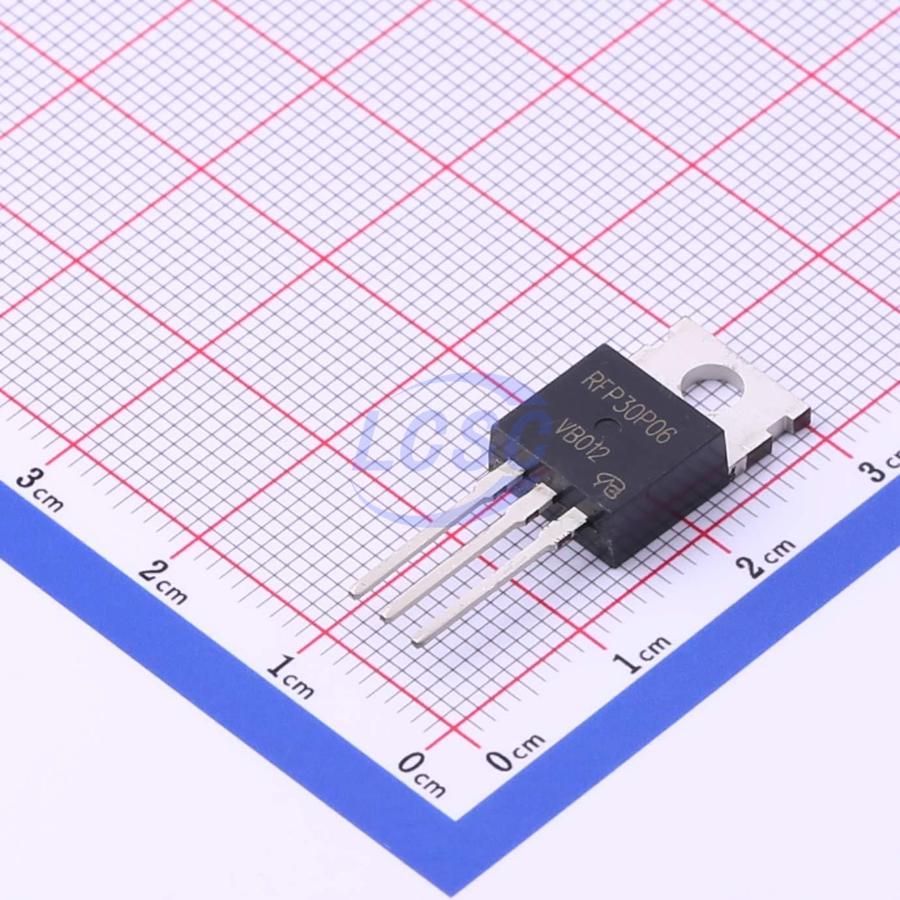

RFP30P06-VB
60V 45A 41.7W 48mΩ 1 P-Channel P-Channel TO-220AB-3 Single FETs, MOSFETs
TO-220AB-3RoHSActive
MOSFET P-CH 60V 45A TO-220AB-3
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- RFP30P06-VB
- Store part #
- C693362
- Package / case
- TO-220AB-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15 in stock
#C693362
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹119.71 | ₹119.71 |
| 10+ | ₹99.08 | ₹990.80 |
| 50+ | ₹78.88 | ₹3,944.00 |
| 100+ | ₹68.77 | ₹6,877.00 |
| 500+ | ₹62.54 | ₹31,270.00 |
| 1,000+ | ₹59.54 | ₹59,540.00 |
1 × ₹119.71
₹119.71
excl. GST
₹141.26 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
RFP30P06-VB
₹119.71 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 330pF
- Current - Continuous Drain(Id)
- 45A
- Ciss-Input Capacitance
- 2.065nF
- Pd - Power Dissipation
- 41.7W
- Reverse Transfer Capacitance (Crss)
- 280pF
- RDS(on)
- 48mΩ
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 67nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.8 g
Overview
Applications
- Power Switch - Load Switch for High-Current Applications - DC/DC Converter
Key features
- Compliant with halogen-free requirements as defined by IEC 61249-2-21
- Trench power MOSFET
- 100% tested for gate resistance (Rg) and unclamped inductive switching (UIS)
- Compliant with RoHS Directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 2SJ602-VB#C22389884VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 10 | ₹102.93 · 10 in stock | View |
 | 2SJ174-VB#C19190122VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 21 | ₹126.69 · 21 in stock | View |
 | 2SJ542-VB#C19711205VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 10 | ₹108.38 · 10 in stock | View |
 | VBM2658#C516961VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 50 | ₹129.75 · 50 in stock | View |
 | FQP27P06-VB#C7463430VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 63 | ₹138.69 · 63 in stock | View |
