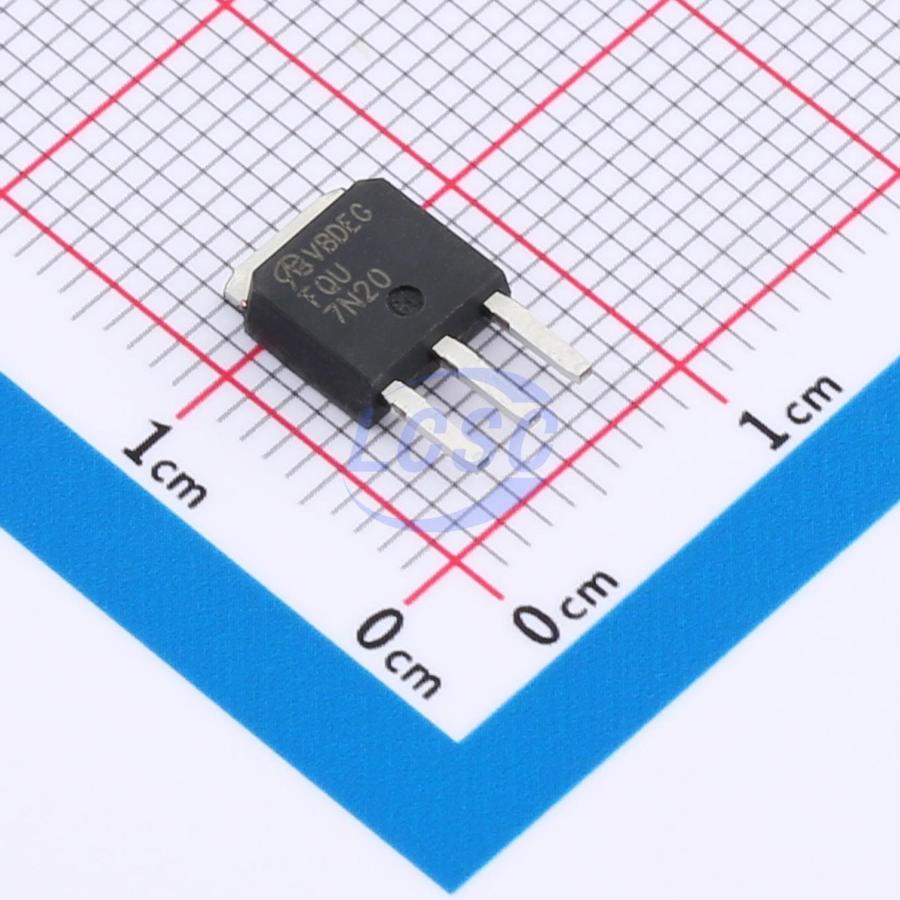

FQU7N20-VB
N-Channel 200V 8A 96W Through Hole TO-251
TO-251RoHSActive
MOSFET N-CH 200V 8A TO-251
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- FQU7N20-VB
- Store part #
- C19188148
- Package / case
- TO-251
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
18 in stock
#C19188148
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹72.69 | ₹72.69 |
| 10+ | ₹57.82 | ₹578.20 |
| 30+ | ₹51.44 | ₹1,543.20 |
| 80+ | ₹43.35 | ₹3,468.00 |
| 480+ | ₹39.74 | ₹19,075.20 |
| 960+ | ₹37.63 | ₹36,124.80 |
1 × ₹72.69
₹72.69
excl. GST
₹85.77 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 80 per tube
FQU7N20-VB
₹72.69 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 200V
- Output Capacitance(Coss)
- 100pF
- Current - Continuous Drain(Id)
- 8A
- Ciss-Input Capacitance
- 800pF
- Pd - Power Dissipation
- 96W
- Reverse Transfer Capacitance (Crss)
- 50pF
- RDS(on)
- 270mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 51nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 80 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.09 g
Overview
Applications
- Primary-side switch
Key features
- Trench power MOSFET
- Junction temperature 175°C
- PWM optimized
- 100% gate resistance (Rg) tested
- RoHS compliant (EU Directive 2002/95/EC)
