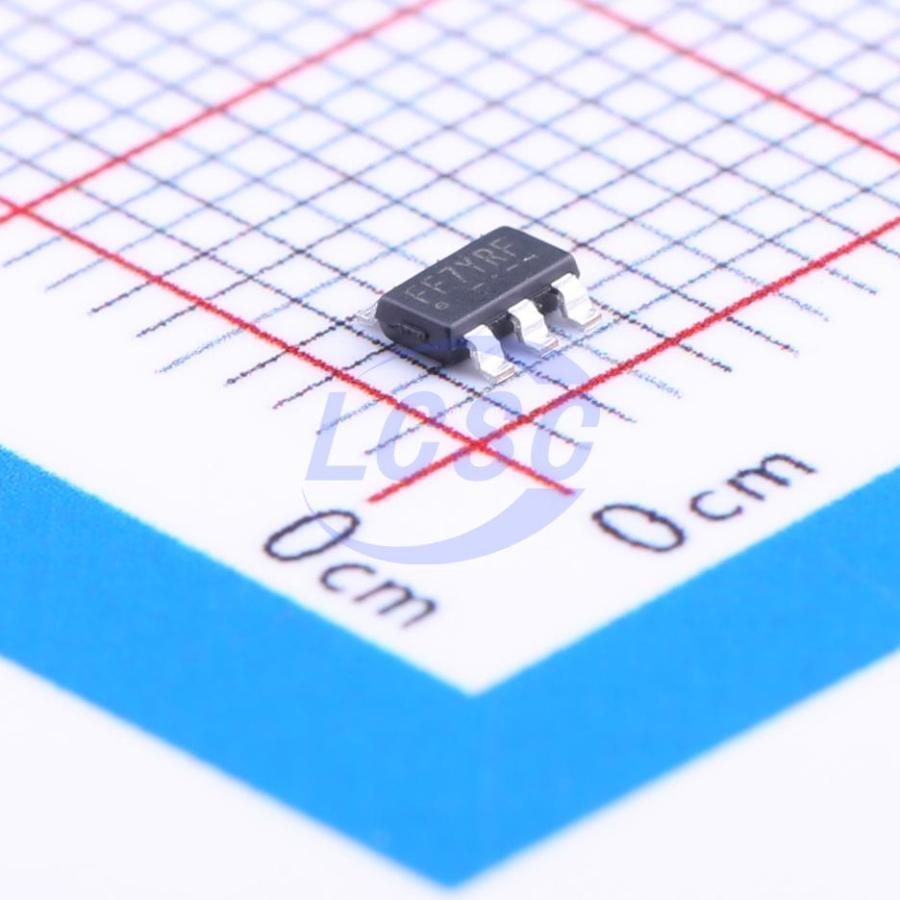

FR8205S6CTR

The FR8205 is a high efficiency, internal compensation, and constant frequency current mode step-down synchronous DC/DC converter. It has integrated high-side (90mΩ, typ) and low-side (50mΩ, typ) power switches, and provides 3A continuous load current. It regulates input voltage from 4.5V to 18V, and down to an output voltage as low as 0.6V.

Applications

• STB (Set-Top-Box)
• LCD Display, TV
• Distributed Power System

Key features

• The FR8205 is a synchronous step-down DC/DC converter that provides 4.5V to 18V input voltage range and 3A continuous load current capability.
• At light load condition, the FR8205 can operate at power saving mode to support high efficiency and reduce power loss.
• The FR8205 fault protection includes cycle-by-cycle current limit, UVLO, hiccup short circuit protection and thermal shutdown.
• The internal 2ms soft-start function prevents inrush current at turn-on.
• This device uses current mode control scheme which provides fast transient response.
• Internal compensation function reduces external compensatory components and simplifies the design process.
• In shutdown mode, the supply current is about 1μA.
• The FR8205 is offered in FC-SOT-23-6 package, which provides good thermal conductance.
• Low RDS(ON) Integrated Power MOSFET (90mΩ/50mΩ)
• Internal Compensation Function
• Wide Input Voltage Range: 4.5V to 18V
• Adjustable Output Voltage Down to 0
• 3A Output Current
• 500kHz Switching Frequency
• Internal 2ms Soft-Start
• Over Temperature Protection with Auto Recovery
• Under Voltage Lockout
• Hiccup Short Circuit Protection
• FC-SOT-23-6 Package
