FITIPOWERDatasheet (PDF)

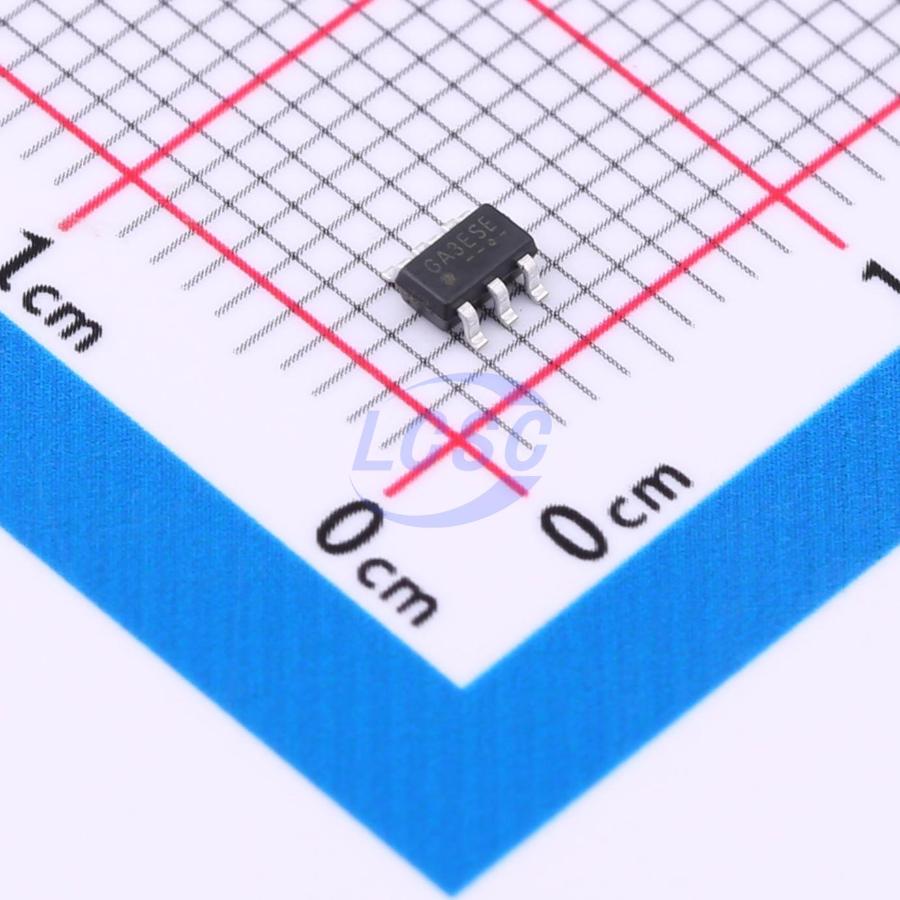

FR9203S6
Buck Switching Regulator IC Adjustable 0.8V~8V 1 Output 1.2A SOT-23-6
SOT-23-6ROHS CompliantActive
28V 1.2A synchronous step-down DC/DC converter
- Manufacturer
- FITIPOWER
- Manufacturer part #
- FR9203S6
- Store part #
- C42411203
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,120 in stock
#C42411203
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.79 | ₹98.95 |
| 50+ | ₹17.37 | ₹868.50 |
| 150+ | ₹16.34 | ₹2,451.00 |
| 500+ | ₹15.04 | ₹7,520.00 |
| 3,000+ | ₹14.46 | ₹43,380.00 |
| 6,000+ | ₹14.12 | ₹84,720.00 |
5 × ₹19.79
₹98.95
excl. GST
₹116.76 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
FR9203S6
₹98.95 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃@(TA)
- Frequency - Switching
- 1MHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Hiccup current limiting;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4.5V~28V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 800mV~8V
- Output Current
- 1.2A
- Quiescent Current
- 700uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.05 g
Overview
FR9203 is a synchronous step-down DC/DC converter. The device offers an input voltage range of 4.5V to 28V and a continuous load current capability of 1.2A. It is a constant on-time pulse width modulation (PWM) controller supporting FCOT mode control. The operating frequency depends on the input and output voltage conditions. FR9203 fault protection includes cycle-by-cycle current limiting, short-circuit protection, undervoltage lockout (UVLO), and thermal shutdown. The soft-start function prevents inrush current at power-up. FR9203 employs fast constant on-time control, delivering fast transient response, noise immunity, and compatibility with a wide variety of ultra-low ESR output capacitors for stable performance. FR9203 is available in a SOT-23-6 package with excellent thermal conductivity.
Applications
- Set-top boxes
- LCD monitors, TVs
- Distributed power systems
- Networking, XDSL modems
- Surveillance
Key features
- Low RDS(ON) integrated power MOSFET (330mΩ/180mΩ)
- Wide input voltage range: 4.5V to 28V
- Output voltage range: 0.8V to 8V
- 1.2A output current
- FCOT mode for fast transient response
- Pseudo 1.0MHz frequency
- All-ceramic capacitor compatible
- Internal 1ms soft-start
- Input undervoltage lockout
- Cycle-by-cycle current limiting
- Hiccup short-circuit protection
- Over-temperature protection with auto-recovery
- SOT-23-6 package
