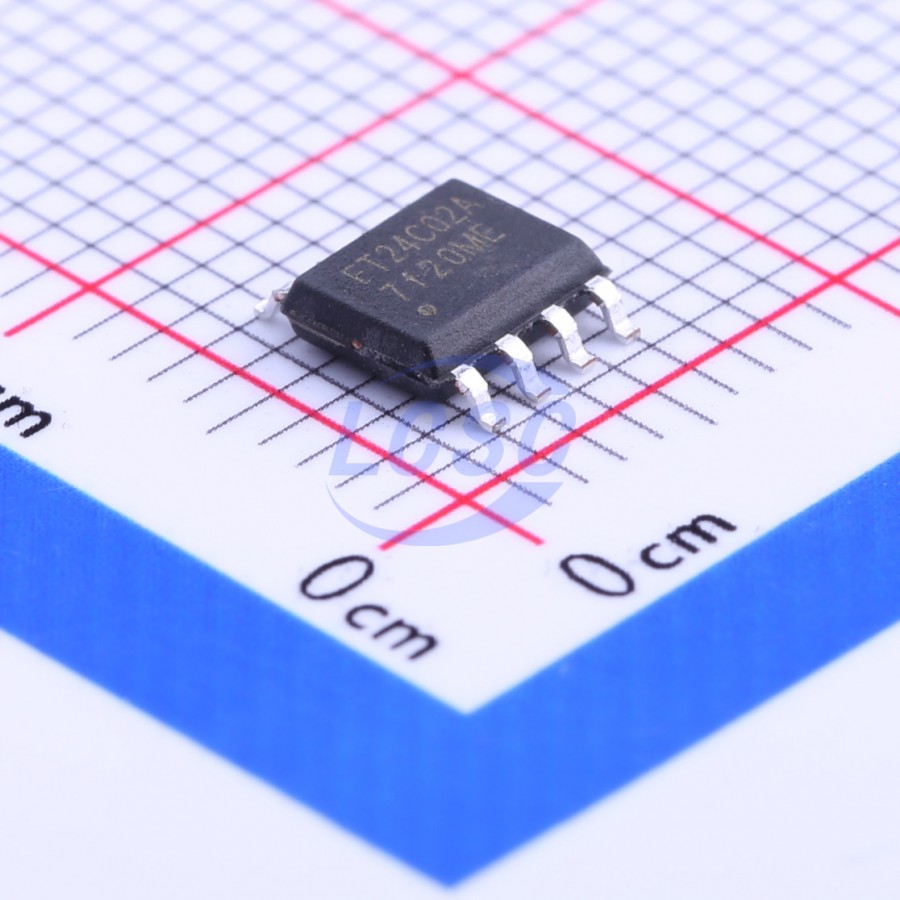

FT24C02A-ESR-T

The FT24C02A-EXX is 2048 bits of serial Electrical Erasable and Programmable Read Only Memory, commonly known as EEPROM. They are organized as 256 words of 8 bits (1 byte) each. The devices are fabricated with proprietary advanced CMOS process for low power and low voltage applications. These devices are available in standard 8-lead DIP, 8-lead SOP, 8-lead MSOP, 8-lead TSSOP, 8-lead DFN and 5-lead SOT-23/TSOT-23 packages. A standard 2-wire serial interface is used to address all read and write functions. Our extended VCC range (1.8V to 5.5V) devices enables wide spectrum of applications.

Key features

• Low voltage and low power operations: FT24C02A-EXX: VCC = 1.8V to 5.5V, Industrial temperature range (-40°C to 85°C)
• Maximum Standby current <1μA (typically 0.02μA and 0.06μA @ 1.8V and 5.5V respectively)
• 16 bytes page write mode. Partial page write operation allowed
• Internally organized: 256×8 (2K)
• Standard 2-wire bi-directional serial interface
• Schmitt trigger, filtered inputs for noise protection
• Self-timed programming cycle (5ms maximum)
• 1 MHz (5V), 400 kHz (1.8V, 2.5V, 2.7V) Compatibility
• Automatic erase before write operation
• High reliability: typically 1,000,000 cycles endurance
• 100 years data retention
• Standard 8-pin DIP/SOP/MSOP/TSSOP/DFN and 5-pin SOT-23/TSOT-23 Pb-free packages
