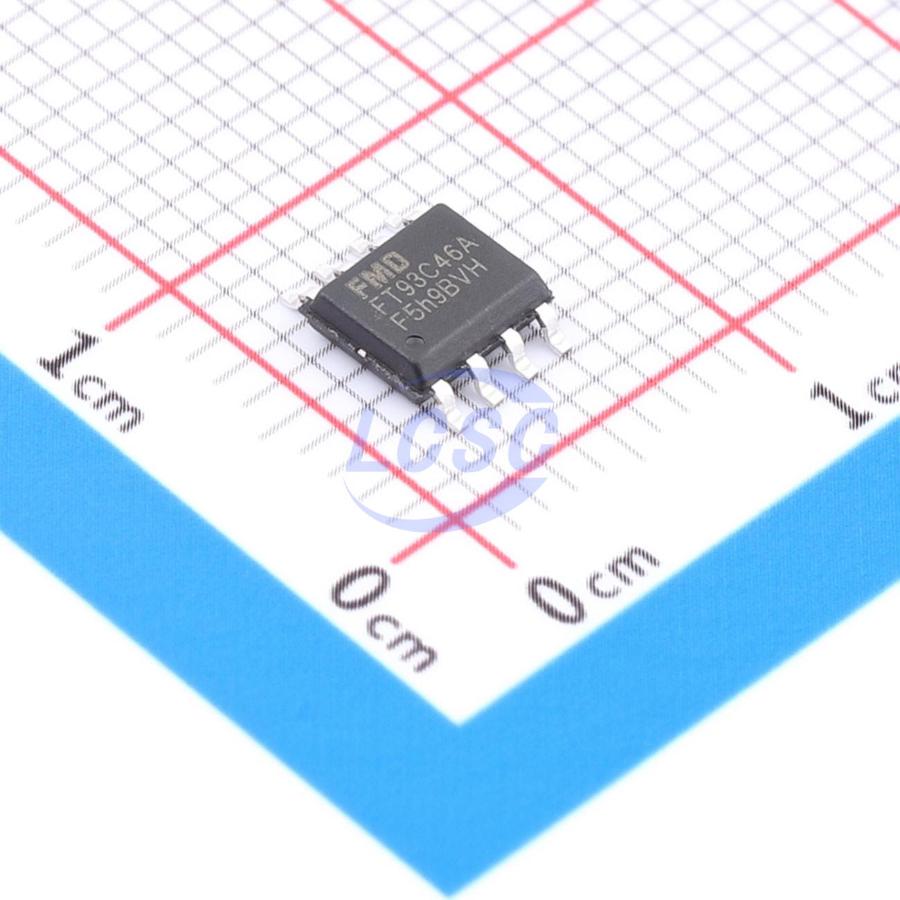

FT93C46A-ESG-T
1Kbit 2MHz SPI SOP-8 Memory
- Manufacturer
- FMD(Fremont Micro Devices)
- Manufacturer part #
- FT93C46A-ESG-T
- Store part #
- C49370527
- Package / case
- SOP-8
- Category
- Memory
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,010 in stock
#C49370527
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.12 | ₹60.60 |
| 50+ | ₹9.62 | ₹481.00 |
| 150+ | ₹8.37 | ₹1,255.50 |
| 500+ | ₹7.44 | ₹3,720.00 |
| 2,500+ | ₹6.69 | ₹16,725.00 |
| 4,000+ | ₹6.31 | ₹25,240.00 |
5 × ₹12.12
₹60.60
excl. GST
₹71.51 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
FT93C46A-ESG-T
₹60.60 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Built-in write enable latch (WEL)
- Memory Size
- 1Kbit
- Voltage - Supply
- 1.7V~5.5V;2mA
- Clock Frequency
- 2MHz
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 1.5uA
- Interface
- SPI
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.063 g
Overview
The FT93C46A series is a 1024-bit serial EEPROM. When the ORG pin is connected to VCC (or left floating), the device is organized as 64 words × 16 bits; when the ORG pin is grounded, it is organized as 128 words × 8 bits (1 byte). The device is fabricated using a proprietary advanced CMOS process, suitable for low-power and low-voltage applications. Available in standard 8-pin SOP, TSSOP, DIP, and UDFN packages. Its extended VCC range (1.7V to 5.5V) enables use across a wide range of applications. The FT93C46A is enabled via the chip select pin (CS) and accessed through a 3-wire serial interface consisting of data input (DI), data output (DO), and serial clock (SCL). Upon receiving a read instruction at DI, the address is decoded and data is serially clocked out through DO. The write cycle is fully self-timed, and no separate erase cycle is required prior to writing. Write cycles are enabled only when the device is in the erase/write enable state. Once the device initiates its self-timed programming sequence, the DO pin can indicate ready/busy status by asserting CS high.
Key features
- Standard and low-voltage operation: FT93C46A: VCC = 1.7V to 5.5V
- User-selectable internal organization: FT93C46A: 128×8 or 64×16
- 2 MHz clock rate (5V) compatibility
- Industry-standard 3-wire serial interface
- Self-timed erase/write cycle (5ms max, including auto-erase)
- Automatic ERAL (Erase All) before WRAL (Write All) execution
- Sequential read operation
- High reliability: 1,000,000 typical erase/write cycles
- 100-year data retention
- Industrial temperature range: -40℃ to 85℃
- Standard 8-pin SOP/TSSOP/DIP/UDFN lead-free packages
