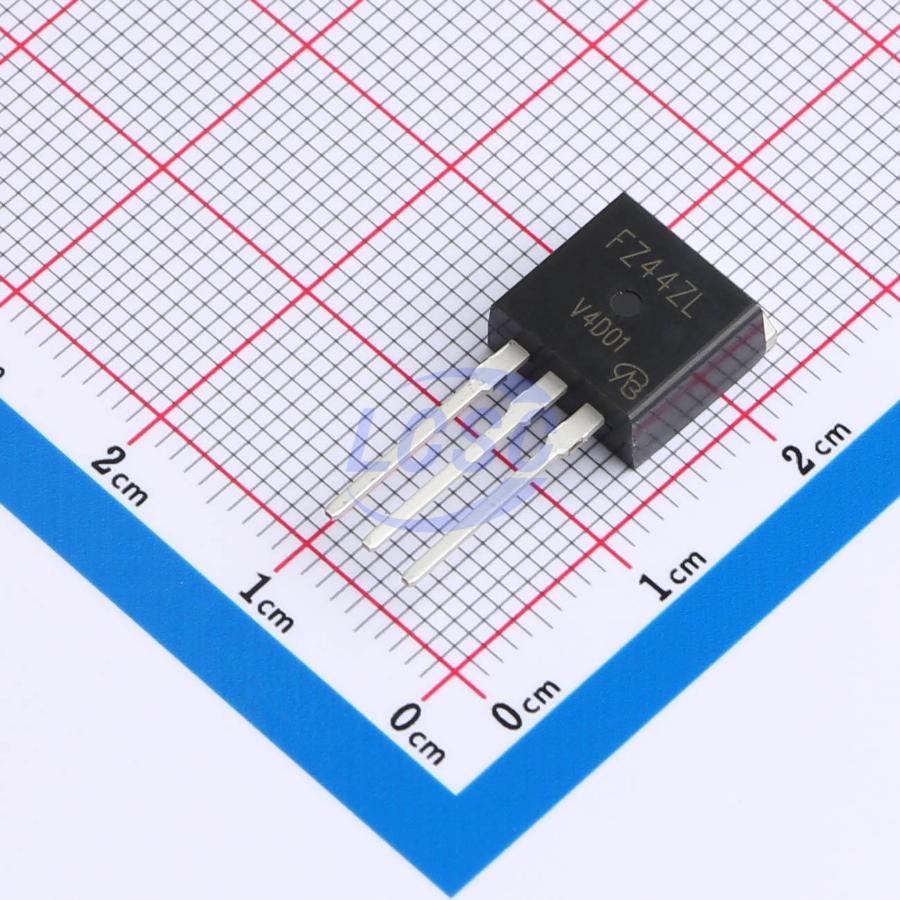

FZ44ZL-VB TO262
60V 60A 190W 15mΩ@10V 1 N-channel N-Channel TO-262 Single FETs, MOSFETs
TO-262RoHSActive
MOSFET N-CH 60V 60A TO-262
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- FZ44ZL-VB TO262
- Store part #
- C22389182
- Package / case
- TO-262
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
40 in stock
#C22389182
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹114.11 | ₹114.11 |
| 10+ | ₹93.43 | ₹934.30 |
| 50+ | ₹83.10 | ₹4,155.00 |
| 100+ | ₹72.99 | ₹7,299.00 |
| 500+ | ₹66.96 | ₹33,480.00 |
| 1,000+ | ₹63.73 | ₹63,730.00 |
1 × ₹114.11
₹114.11
excl. GST
₹134.65 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
FZ44ZL-VB TO262
₹114.11 for 1 + GST
Specifications
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 1.3nF
- Current - Continuous Drain(Id)
- 60A
- Ciss-Input Capacitance
- 3.5nF
- Pd - Power Dissipation
- 190W
- RDS(on)
- 15mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 110nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.66 g
Overview
Key features
- Advanced process technology
- 175°C operating temperature
- Fast switching
- RoHS compliant
- Halogen-free
- Available in I2PAK (TO-262) package
- N-channel MOSFET
