G2061

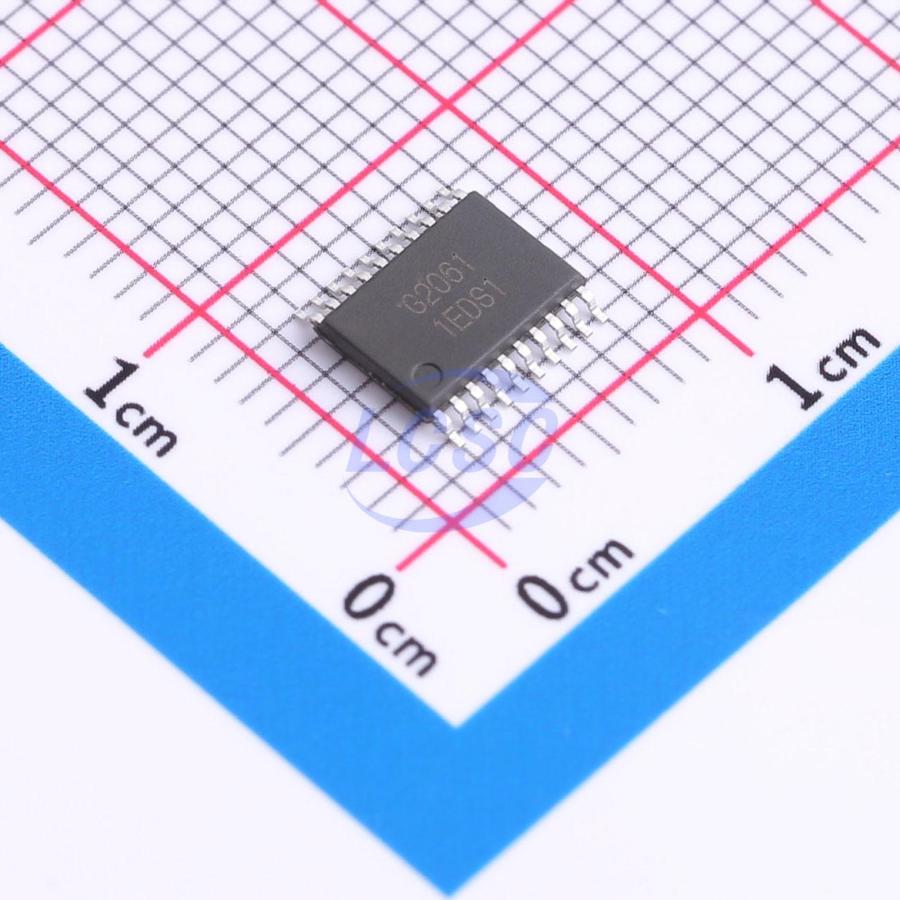

Three Phase Gate Driver IC MOSFET IGBT TSSOP-20
Three-phase high and low side power MOSFET/IGBT driver chip
- Manufacturer
- WXNSIC
- Manufacturer part #
- G2061
- Store part #
- C7421052
- Package / case
- TSSOP-20
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,970 in stock
#C7421052
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹64.84 | ₹64.84 |
| 10+ | ₹50.53 | ₹505.30 |
| 30+ | ₹44.24 | ₹1,327.20 |
| 100+ | ₹36.65 | ₹3,665.00 |
| 500+ | ₹33.18 | ₹16,590.00 |
| 1,000+ | ₹31.22 | ₹31,220.00 |
1 × ₹64.84
₹64.84
excl. GST
₹76.51 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
G2061
₹64.84 for 1 + GST
Specifications
- Quiescent Current
- 230uA
- Voltage - Supply
- 8V~20V
- Driven Configuration
- Three Phase
- Operating Temperature
- -40℃~+125℃
- Current - Output Low(IOL)
- 1.8A
- Rise Time
- 30ns
- Fall Time
- 30ns
- Features
- Dead-time control;Interleaved conduction protection
- Current - Output High(IOH)
- 1.5A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.207 g
Overview
G2061 is a high-voltage, high-speed power MOSFET high- and low-side driver IC, fabricated using a high-low voltage compatible process that integrates both high-side and low-side gate drive circuits on a single chip, with independent high-side and low-side referenced output channels. Logic input levels are compatible with CMOS or LSTTL logic outputs as low as 3.3V; outputs feature high-current pulse capability and shoot-through-prevention dead-time logic. The floating channel can drive high-side N-channel power MOSFETs, with a maximum floating supply offset voltage of 250V. The IC is available in a TSSOP20 package and operates over a temperature range of -40°C to 125°C. Both high-side and low-side channels are equipped with undervoltage lockout (UVLO) protection.
Applications
- Motor Control
- Air Conditioner/Washing Machine
- General-Purpose Inverter
- Micro Inverter Drive
Key features
- Bootstrap floating high-side channel
- Maximum operating voltage +250V
- Compatible with 3.3/5V input logic
- dVs/dt immunity up to ±50V/ns
- Vs negative bias capability down to -9V
- Gate drive voltage range 8V to 20V
- High- and low-side UVLO; high-side UVLO positive threshold 7.1V, high-side UVLO negative threshold 6.9V, low-side UVLO positive threshold 7V, low-side UVLO negative threshold 6.6V
- Cross-conduction prevention dead-time logic, dead time set at 200ns
- Propagation delay characteristics: turn-on/turn-off propagation delay Ton/Toff = 150ns/120ns, delay matching less than 50ns
- Wide temperature range -40~125°C
- Output stage source/sink current capability 1.5A/1.8A
- RoHS compliant
