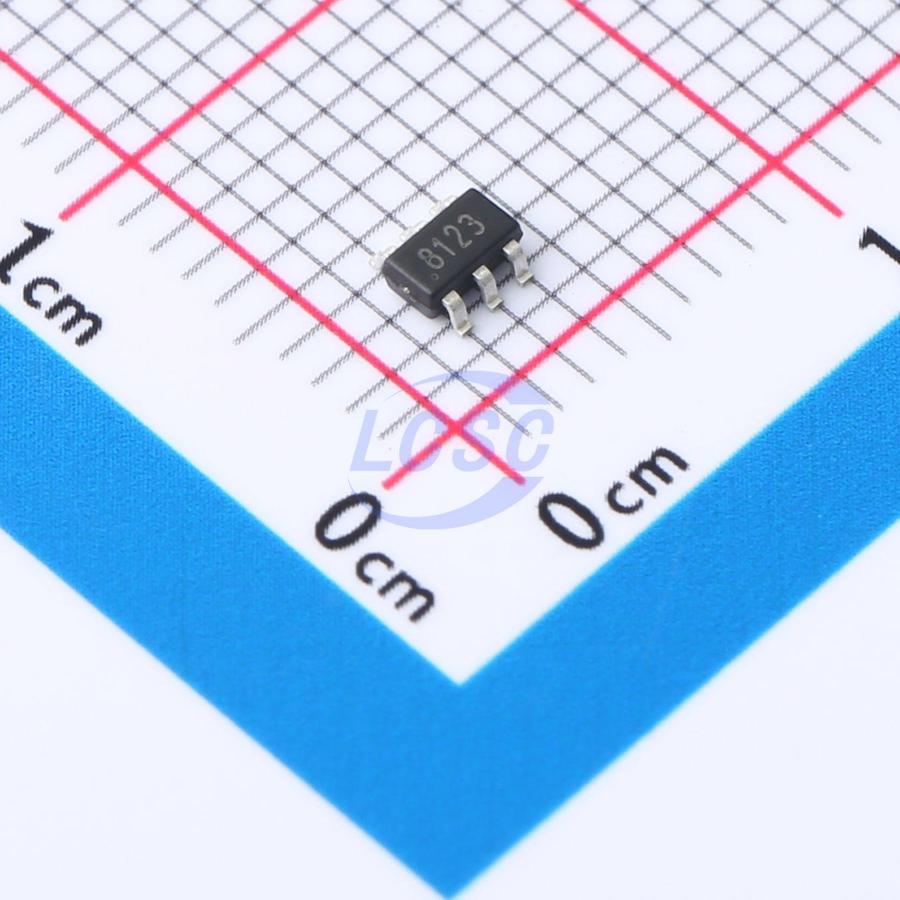

GC8123
420mΩ 1.2V~6V 1.2A SOT23-6 Gate Drivers RoHS
Single-channel low-voltage full-bridge driver
- Manufacturer
- SX-globalchip
- Manufacturer part #
- GC8123
- Store part #
- C16197211
- Package / case
- SOT23-6
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,510 in stock
#C16197211
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.00 | ₹100.00 |
| 50+ | ₹15.62 | ₹781.00 |
| 150+ | ₹13.76 | ₹2,064.00 |
| 500+ | ₹11.40 | ₹5,700.00 |
| 3,000+ | ₹10.37 | ₹31,110.00 |
| 6,000+ | ₹9.74 | ₹58,440.00 |
5 × ₹20.00
₹100.00
excl. GST
₹118.00 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
GC8123
₹100.00 for 5 + GST
Specifications
- Features
- Active braking function
- Quiescent Current
- 10nA
- RDS(on)
- 420mΩ
- Voltage - Supply
- 1.2V~6V
- Peak Current
- 2A
- Output Current
- 1.2A
- Operating Temperature
- -40℃~+100℃
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.054 g
Overview
GC8123 is a low-voltage 5V full-bridge driver IC that provides an integrated motor drive solution for cameras, consumer products, toys, and other low-voltage or battery-powered motion control applications. GC8123 delivers a continuous output current of up to 1.2A and operates over a supply voltage range of 1.2~6V. GC8123 features a PWM (IN/IN) input interface, is compatible with industry-standard devices, and includes over-temperature protection.
Applications
- Cameras
- Digital Single-Lens Reflex (DSLR) Lenses
- Toys
- Robotics
- Shared Bicycle Locks
- Water Meter Valves
- Medical Devices
Key features
- H-bridge motor driver, supply voltage 1.2~6V, low on-resistance (HS + LS) 420mΩ
- 1.2A continuous drive output current
- PWM (INA/INB) input mode
- Built-in over-temperature protection
- Low-current sleep mode (nA level, INA = INB = 0)
