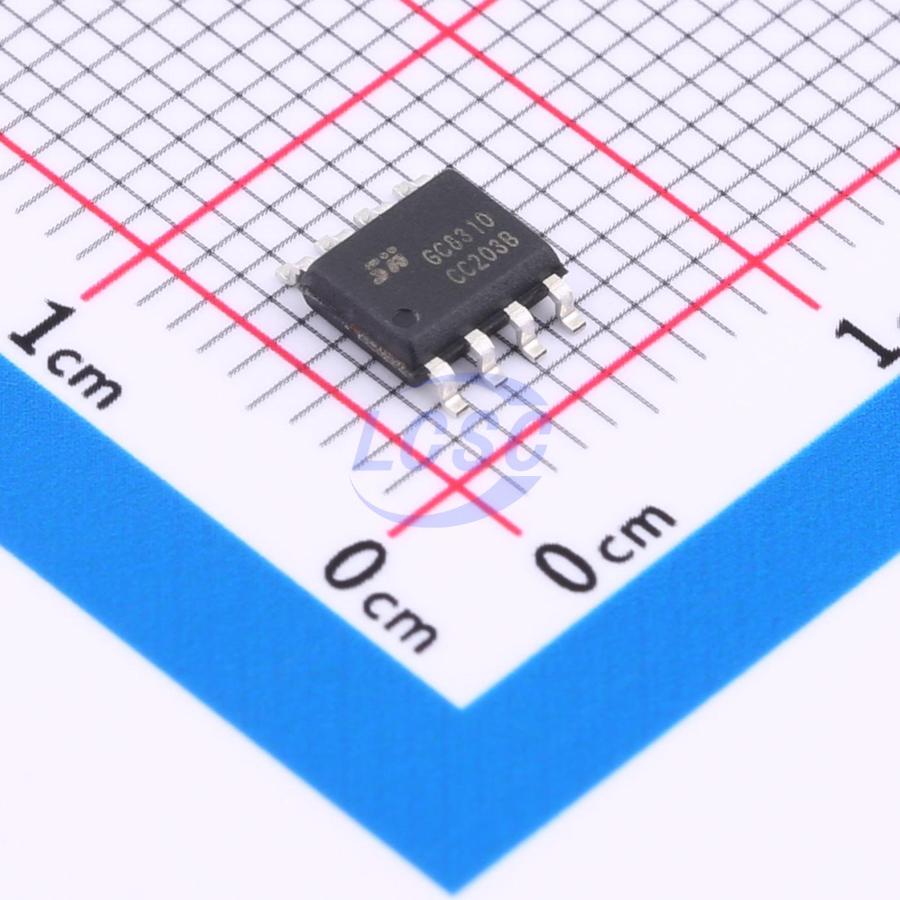

GC8310
420mΩ 1.2V~6V 1.3A SOP-8 Gate Drivers RoHS
Low-voltage single-channel full-bridge driver
- Manufacturer
- SX-globalchip
- Manufacturer part #
- GC8310
- Store part #
- C16197212
- Package / case
- SOP-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,220 in stock
#C16197212
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.46 | ₹57.30 |
| 50+ | ₹10.07 | ₹503.50 |
| 150+ | ₹9.37 | ₹1,405.50 |
| 500+ | ₹8.85 | ₹4,425.00 |
| 2,500+ | ₹8.43 | ₹21,075.00 |
| 4,000+ | ₹8.22 | ₹32,880.00 |
5 × ₹11.46
₹57.30
excl. GST
₹67.61 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
GC8310
₹57.30 for 5 + GST
Specifications
- Features
- Active braking function
- Quiescent Current
- 1uA
- RDS(on)
- 420mΩ
- Voltage - Supply
- 1.2V~6V
- Peak Current
- 2.3A
- Output Current
- 1.3A
- Operating Temperature
- -40℃~+100℃
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.188 g
Overview
GC8310 is a low-voltage 5V full-bridge driver IC, providing an integrated motor drive solution for cameras, consumer products, toys, and other low-voltage or battery-powered motion control applications. GC8310 delivers up to 1.3A continuous output current and operates from a supply voltage of 1.2~6V. GC8310 features a PWM (IN/IN) input interface, compatible with industry-standard devices, and includes over-temperature protection. GC8310 is available in a SOP8 package.
Applications
- Camera digital single-lens reflex (DSLR) lenses
- Toys
- Robotics
- Shared bicycle locks
- Water/gas meter valves
- Medical devices
- Electric toothbrushes
Key features
- H-bridge motor driver
- Supply voltage 1.2~6V
- Low on-resistance (HS+LS) 420mΩ
- 1.3A continuous drive output current
- PWM (IN1/IN2) input mode
- Built-in over-temperature protection
- Low-current sleep mode (nA level, IN1 = IN2 = 0)
