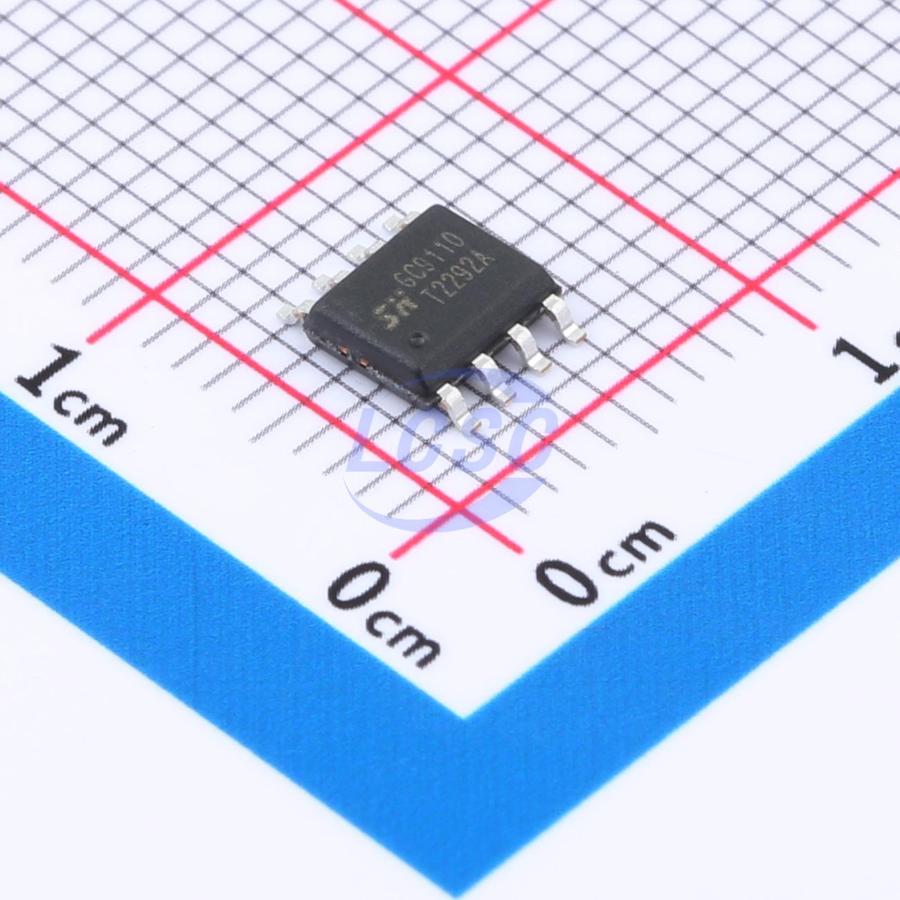

GC9110
420mΩ 2V~6V 1.3A ESOP-8 Gate Drivers RoHS
Low-voltage single-channel full-bridge driver
- Manufacturer
- SX-globalchip
- Manufacturer part #
- GC9110
- Store part #
- C16197220
- Package / case
- ESOP-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,090 in stock
#C16197220
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.22 | ₹61.10 |
| 50+ | ₹9.62 | ₹481.00 |
| 150+ | ₹8.31 | ₹1,246.50 |
| 500+ | ₹7.33 | ₹3,665.00 |
| 2,500+ | ₹6.55 | ₹16,375.00 |
| 4,000+ | ₹6.17 | ₹24,680.00 |
5 × ₹12.22
₹61.10
excl. GST
₹72.10 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
GC9110
₹61.10 for 5 + GST
Specifications
- Features
- Active braking function
- Quiescent Current
- 10nA
- RDS(on)
- 420mΩ
- Voltage - Supply
- 2V~6V
- Peak Current
- 2.3A
- Output Current
- 1.3A
- Operating Temperature
- -40℃~+100℃
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.185 g
Overview
GC9110 is a low-voltage 5V full-bridge driver IC that provides an integrated motor drive solution for cameras, consumer products, toys, and other low-voltage or battery-powered motion control applications. The GC9110 delivers up to 1.3A continuous output current and operates from a supply voltage of 2~6V. The GC9110 features a PWM (IN/IN) input interface, is compatible with industry-standard devices, and includes over-temperature protection. The GC9110S is available in an ESOP8 package, and the GC9110D in a DFN package.
Applications
- Camera digital single-lens reflex (DSLR) lenses
- Toy robotics
- Shared bicycle locks
- Water/gas meter valves
- Medical device electric toothbrushes
Key features
- H-bridge motor driver
- Supply voltage 2~6V
- Low on-resistance (HS+LS) 420mΩ
- 1.3A continuous drive output current
- PWM (IN1/IN2) input mode
- Built-in over-temperature protection
- Built-in undervoltage lockout protection
- Low-current sleep mode (nA level, [IN1=IN2=0])
