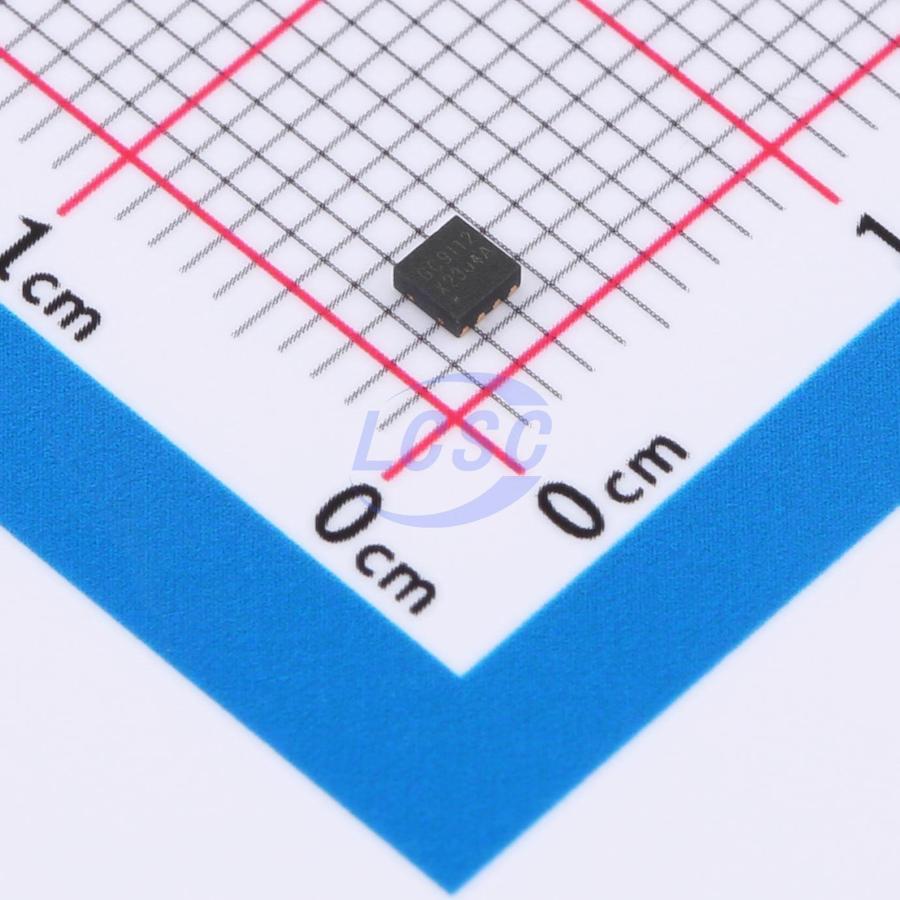

GC9112
480mΩ 2V~6V 1.1A DFN-8 Gate Drivers RoHS
Low-voltage single-channel full-bridge driver
- Manufacturer
- SX-globalchip
- Manufacturer part #
- GC9112
- Store part #
- C16197222
- Package / case
- DFN-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,725 in stock
#C16197222
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.48 | ₹57.40 |
| 50+ | ₹9.06 | ₹453.00 |
| 150+ | ₹7.85 | ₹1,177.50 |
| 500+ | ₹6.93 | ₹3,465.00 |
| 3,000+ | ₹6.20 | ₹18,600.00 |
| 6,000+ | ₹5.83 | ₹34,980.00 |
5 × ₹11.48
₹57.40
excl. GST
₹67.73 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
GC9112
₹57.40 for 5 + GST
Specifications
- Features
- Active braking function
- Quiescent Current
- 10nA
- RDS(on)
- 480mΩ
- Voltage - Supply
- 2V~6V
- Peak Current
- 2.2A
- Output Current
- 1.1A
- Operating Temperature
- -40℃~+100℃
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.049 g
Overview
GC9112 is a low-voltage 5V full-bridge driver IC that provides an integrated motor drive solution for cameras, consumer products, toys, and other low-voltage or battery-powered motion control applications. The GC9112 delivers up to 1.1A continuous output current and operates from a supply voltage of 2~7V. The GC9112 features a PWM (IN/IN) input interface compatible with industry-standard devices, and includes over-temperature and under-voltage protection. The GC9112 is available in a DFN8 package.
Applications
- Cameras
- Digital Single-Lens Reflex (DSLR) Lenses
- Toys
- Robotics
- Shared Bicycle Locks
- Water/Gas Meter Valves
- Medical Devices
- Electric Toothbrushes
Key features
- H-bridge motor driver
- Supply voltage 2~7V
- Low on-resistance (HS+LS) 480mΩ
- 1.1A continuous drive output current
- PWM (IN1/IN2) input mode
- 1.8V interface compatible
- Built-in over-temperature protection
- Built-in under-voltage protection
- Low-current sleep mode (nA-level, IN1=IN2=0)
