VISHAYDatasheet (PDF)

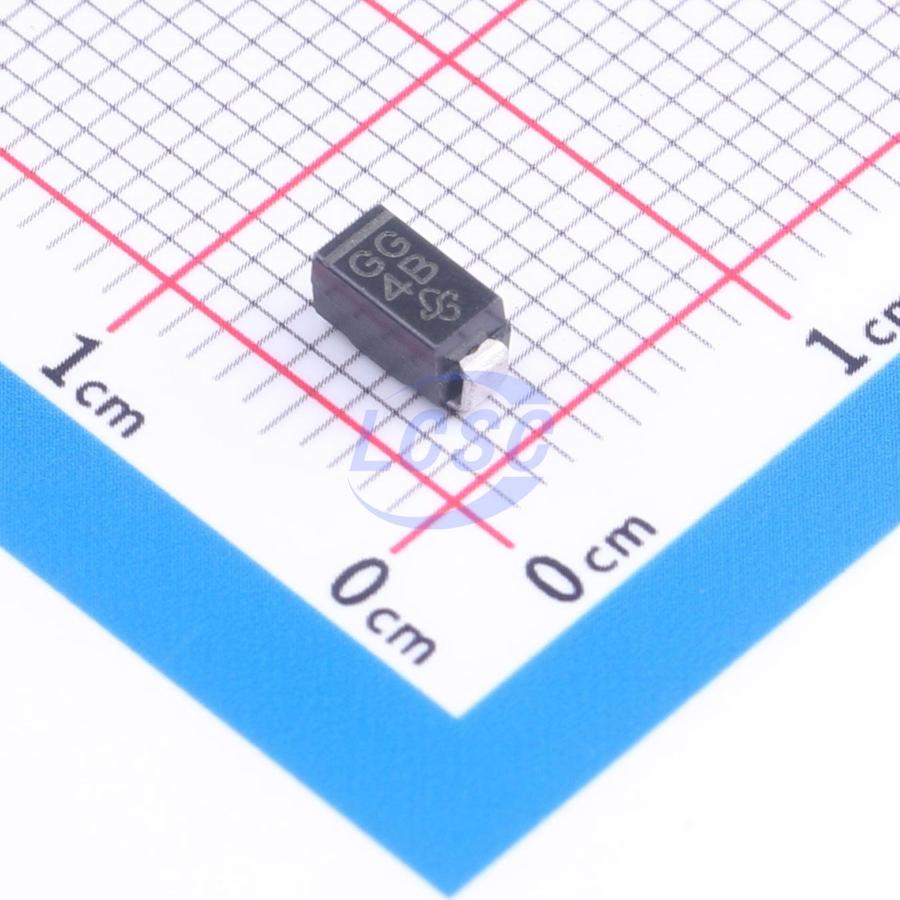

GF1G-E3/5CA
400V 1 Independent 1.1V@1A 1A DO-214BA Single Diodes RoHS
DO-214BAROHS3 CompliantActive
- Manufacturer
- VISHAY
- Manufacturer part #
- GF1G-E3/5CA
- Store part #
- C17525946
- Package / case
- DO-214BA
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
30 in stock
#C17525946
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹66.43 | ₹66.43 |
| 10+ | ₹65.57 | ₹655.70 |
| 30+ | ₹64.92 | ₹1,947.60 |
| 100+ | ₹64.48 | ₹6,448.00 |
1 × ₹66.43
₹66.43
excl. GST
₹78.39 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 6,500 per reel
GF1G-E3/5CA
₹66.43 for 1 + GST
Specifications
- Voltage - DC Reverse (Vr) (Max)
- 400V
- Operating Junction Temperature Range
- -65℃~+175℃
- Diode Configuration
- 1 Independent
- Voltage - Forward(Vf@If)
- 1.1V@1A
- Reverse Leakage Current (Ir)
- 5uA
- Current - Rectified
- 1A
- Non-Repetitive Peak Forward Surge Current
- 30A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 6,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.273 g
Overview
Applications
- General-purpose rectification for power supplies, inverters, and converters, as well as freewheeling diodes in consumer, automotive, and telecommunications applications
Key features
- Super rectifier structure for high-reliability applications
- Suitable for automated placement
- Low forward voltage drop
- Low leakage current
- High forward surge capability
- MSL Level 1 per J-STD-020, LF max peak 250°C
- AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | GF1J-E3/67A#C143673VISHAY · DO-214BA | VISHAY | DO-214BA | 50 | ₹58.05 · 50 in stock | View |
 | GF1G-E3/67A#C145458VISHAY · DO-214BA | VISHAY | DO-214BA | 15 | ₹36.22 · 15 in stock | View |
 | M4#C18207Changzhou Starsea Elec · SMA(DO-214AC) | Changzhou Starsea Elec | SMA(DO-214AC) | 17,600 | ₹1.53 · 17,600 in stock | View |
 | S1G-13-F-10#C22731412DIODES · SMA | DIODES | SMA | 995 | ₹7.78 · 995 in stock | View |
 | S1G#C49435581Huixin · SMA | Huixin | SMA | 5,000 | ₹5.12 · 5,000 in stock | View |
