VISHAYDatasheet (PDF)

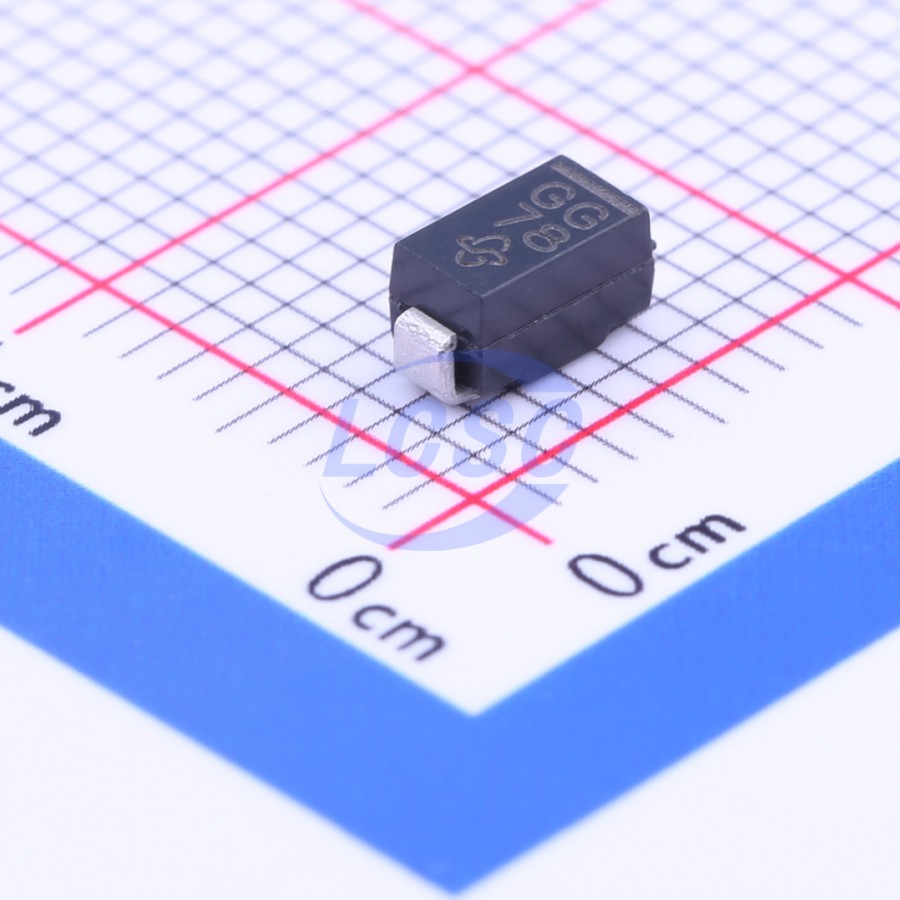

GF1G-E3/67A
Diode 400V 1A Surface Mount DO-214BA
DO-214BAROHS3 CompliantActive
DIODE STANDARD 400V 1A DO-214BA
- Manufacturer
- VISHAY
- Manufacturer part #
- GF1G-E3/67A
- Store part #
- C145458
- Package / case
- DO-214BA
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15 in stock
#C145458
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹36.22 | ₹181.10 |
| 50+ | ₹35.67 | ₹1,783.50 |
| 150+ | ₹35.28 | ₹5,292.00 |
| 500+ | ₹32.68 | ₹16,340.00 |
5 × ₹36.22
₹181.10
excl. GST
₹213.70 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
GF1G-E3/67A
₹181.10 for 5 + GST
Specifications
- Operating Junction Temperature Range
- -65℃~+175℃
- Voltage - DC Reverse (Vr) (Max)
- 400V
- Diode Configuration
- 1 Independent
- Voltage - Forward(Vf@If)
- 1.1V@1A
- Reverse Leakage Current (Ir)
- 5uA@400V
- Non-Repetitive Peak Forward Surge Current
- 30A
- Current - Rectified
- 1A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.17 g
Overview
Applications
- For use in general purpose rectification of power supplies, inverters, converters and freewheeling diodes for consumer, automotive and telecommunication.
Key features
- Superectifier structure for high reliability condition
- Ideal for automated placement
- Low forward voltage drop e3
- Low leakage current RoHS
- High forward surge capability COMPLIANT
- Meets MSL level 1, per J-STD-020, LF maximum peak of 250 ℃
- AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | GF1J-E3/67A#C143673VISHAY · DO-214BA | VISHAY | DO-214BA | 50 | ₹58.05 · 50 in stock | View |
 | GF1G-E3/5CA#C17525946VISHAY · DO-214BA | VISHAY | DO-214BA | 30 | ₹66.43 · 30 in stock | View |
 | M4#C18207Changzhou Starsea Elec · SMA(DO-214AC) | Changzhou Starsea Elec | SMA(DO-214AC) | 17,600 | ₹1.53 · 17,600 in stock | View |
 | S1G-13-F-10#C22731412DIODES · SMA | DIODES | SMA | 995 | ₹7.78 · 995 in stock | View |
 | S1G#C49435581Huixin · SMA | Huixin | SMA | 5,000 | ₹5.12 · 5,000 in stock | View |
