GN Semic

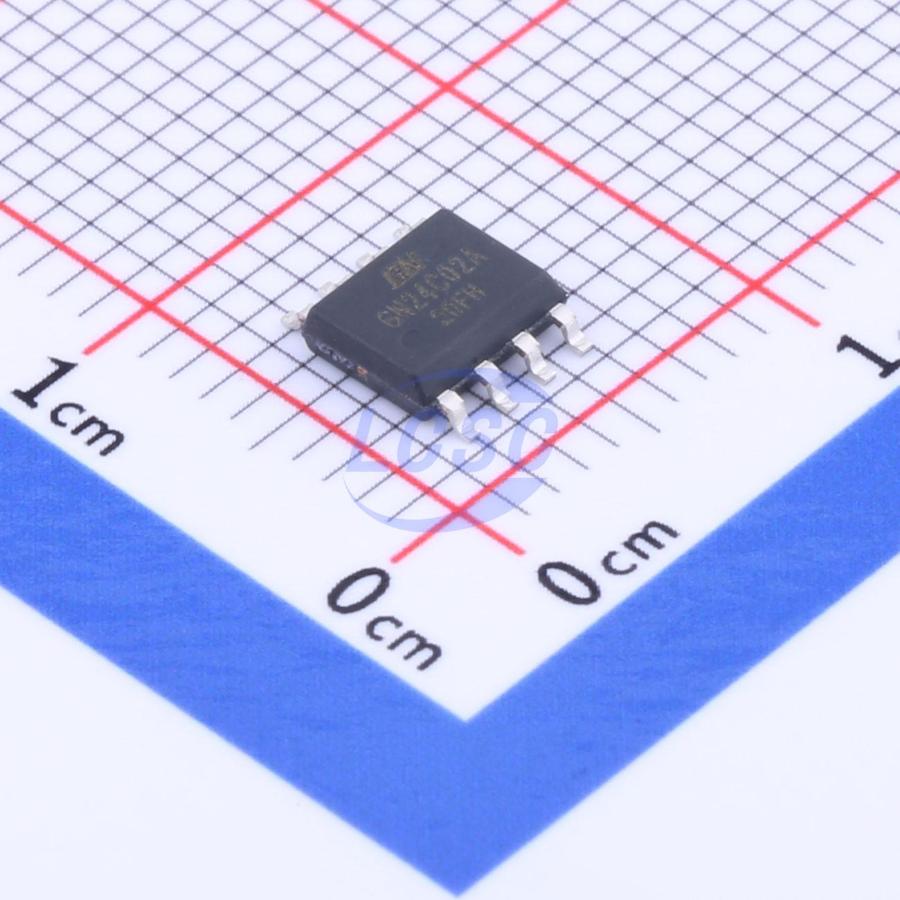

GN24C02A
2Kbit 1MHz I2C SOP-8 Memory
SOP-8RoHSActive
2Kbit I²C Compatible Serial EEPROM
Datasheet (PDF)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,090 in stock
#C2758328
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.35 | ₹83.50 |
| 100+ | ₹6.76 | ₹676.00 |
| 300+ | ₹5.95 | ₹1,785.00 |
| 1,000+ | ₹5.36 | ₹5,360.00 |
| 4,000+ | ₹4.84 | ₹19,360.00 |
| 8,000+ | ₹4.60 | ₹36,800.00 |
10 × ₹8.35
₹83.50
excl. GST
₹98.53 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
GN24C02A
₹83.50 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Noise suppression function
- Memory Size
- 2Kbit
- Voltage - Supply
- 1.7V~5.5V;1.6mA
- Clock Frequency
- 1MHz
- Access Time
- 0.9us;0.55us
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 3uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.182 g
Overview
GN24CO2A is a 2 Kbit I²C compatible serial EEPROM (Electrically Erasable Programmable Memory) device. It contains a 256X8-bit memory array organized in 8-byte pages.
Key features
- Single power supply voltage and high speed: Minimum operating voltage as low as 1.7V, 1 MHz clock for 2.5V to 5.5V, 400kHz clock for 1.7V to 2.5V
- Low-power CMOS technology: Maximum read current of 400uA, maximum write current of 1.6mA
- Schmitt trigger to filter inputs and suppress noise
- Sequential and random read characteristics
- Page write mode allowing partial page writes
- Write protection for the entire memory array
- Self-timed write cycle (maximum 5ms)
- High reliability: Endurance >1 million write cycles, Data retention >100 years, ESD Human Body Model: 4KV, Latch-up capability: ±200mA
