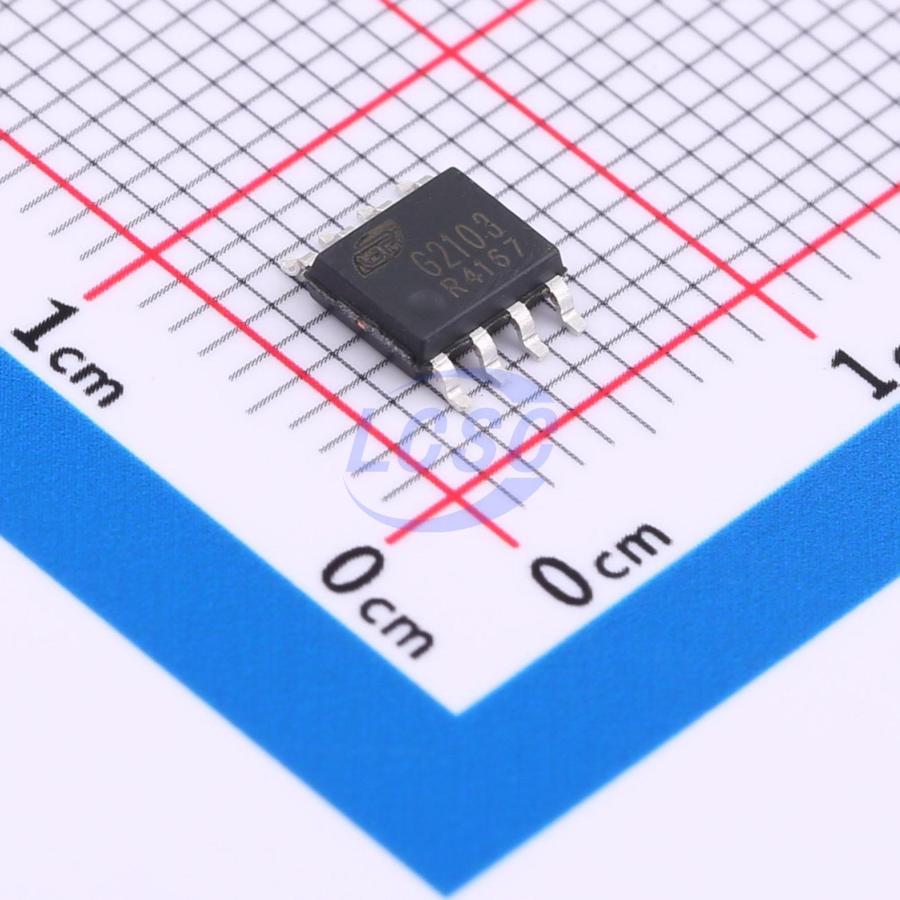

GR2103
Half-Bridge Gate Driver IC MOSFET IGBT SOP-8
High-voltage half-bridge gate driver
- Manufacturer
- GR
- Manufacturer part #
- GR2103
- Store part #
- C18164496
- Package / case
- SOP-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,850 in stock
#C18164496
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.78 | ₹63.90 |
| 50+ | ₹11.48 | ₹574.00 |
| 150+ | ₹10.84 | ₹1,626.00 |
| 500+ | ₹10.35 | ₹5,175.00 |
| 2,500+ | ₹8.85 | ₹22,125.00 |
| 4,000+ | ₹8.65 | ₹34,600.00 |
5 × ₹12.78
₹63.90
excl. GST
₹75.40 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
GR2103
₹63.90 for 5 + GST
Specifications
- Voltage - Supply
- 10V~20V
- Operating Temperature
- 0℃~+60℃
- Driven Configuration
- Half-Bridge
- Current - Output Low(IOL)
- 600uA
- Rise Time
- 10ns
- Fall Time
- 10ns
- Features
- Dead-time control;Interleaved conduction protection
- Current - Output High(IOH)
- 600uA
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.07 g
Overview
GR2103 is a cost-effective high-voltage half-bridge gate driver IC designed for high-voltage, high-speed driving of N-type high-power MOSFETs and IGBTs. It features built-in UVLO protection to prevent power devices from operating under insufficient voltage, improving efficiency. Built-in shoot-through prevention and dead-time control protect against shoot-through events, effectively safeguarding power devices. Widely used in brushless motor controller circuits.
Applications
- Motor drive
- DC-DC converter
Key features
- Floating absolute voltage +620V with VCC UVLO
- High-side output in-phase with high-side input
- Low-side output inverted from low-side input
- 3.3V/5V input logic compatible
- Package: SOP8, SOIC8
