HXY MOSFETDatasheet (PDF)

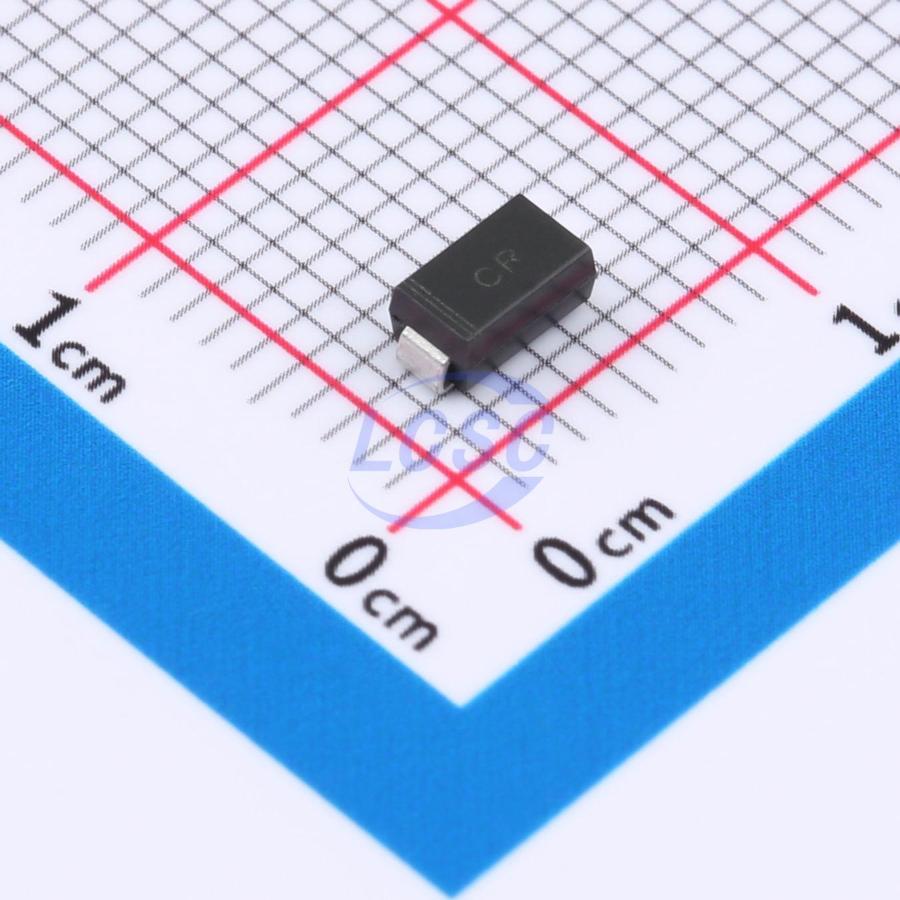

H1SMA40AT3G
64.5VC Clamp 6.2A Ipp TVS DIODE SMA(DO-214AC)
SMA(DO-214AC)RoHSActive
TVS DIODE 40VWM 64.5VC SMA(DO-214AC)
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- H1SMA40AT3G
- Store part #
- C42402022
- Package / case
- SMA(DO-214AC)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
100 in stock
#C42402022
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹30.89 | ₹154.45 |
| 50+ | ₹24.62 | ₹1,231.00 |
| 150+ | ₹21.94 | ₹3,291.00 |
| 500+ | ₹18.57 | ₹9,285.00 |
| 2,500+ | ₹17.08 | ₹42,700.00 |
| 5,000+ | ₹16.18 | ₹80,900.00 |
5 × ₹30.89
₹154.45
excl. GST
₹182.25 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
H1SMA40AT3G
₹154.45 for 5 + GST
Specifications
- Clamping Voltage
- 64.5V
- Operating Temperature
- -65℃~+150℃
- Peak Pulse Current (Ipp)
- 6.2A
- Peak Pulse Power Dissipation (Ppp)
- 400W
- Number of Channels
- 1
- Voltage - Breakdown
- 44.4V;49.1V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 40V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.087 g
Overview
Applications
- Input/Output Interface
- AC/DC Power Supply
- Low-Frequency Signal Transmission Line
Key features
- Low-profile package
- Built-in strain relief
- Glass passivated junction
- Low inductance
- Excellent clamping capability
- Repetition rate (duty cycle): 0.01%
- Fast response time
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HSMAJ40A13F#C42402107HXY MOSFET · SMA(DO-214AC) | HXY MOSFET | SMA(DO-214AC) | 5 | ₹10.81 · 5 in stock | View |
 | SMAJ40A#C7466470HXY MOSFET · SMA(DO-214AC) | HXY MOSFET | SMA(DO-214AC) | 80 | ₹4.22 · 80 in stock | View |
 | SMAJ36A#C7466472HXY MOSFET · SMA(DO-214AC) | HXY MOSFET | SMA(DO-214AC) | 80 | ₹3.97 · 80 in stock | View |
