HXY MOSFETDatasheet (PDF)

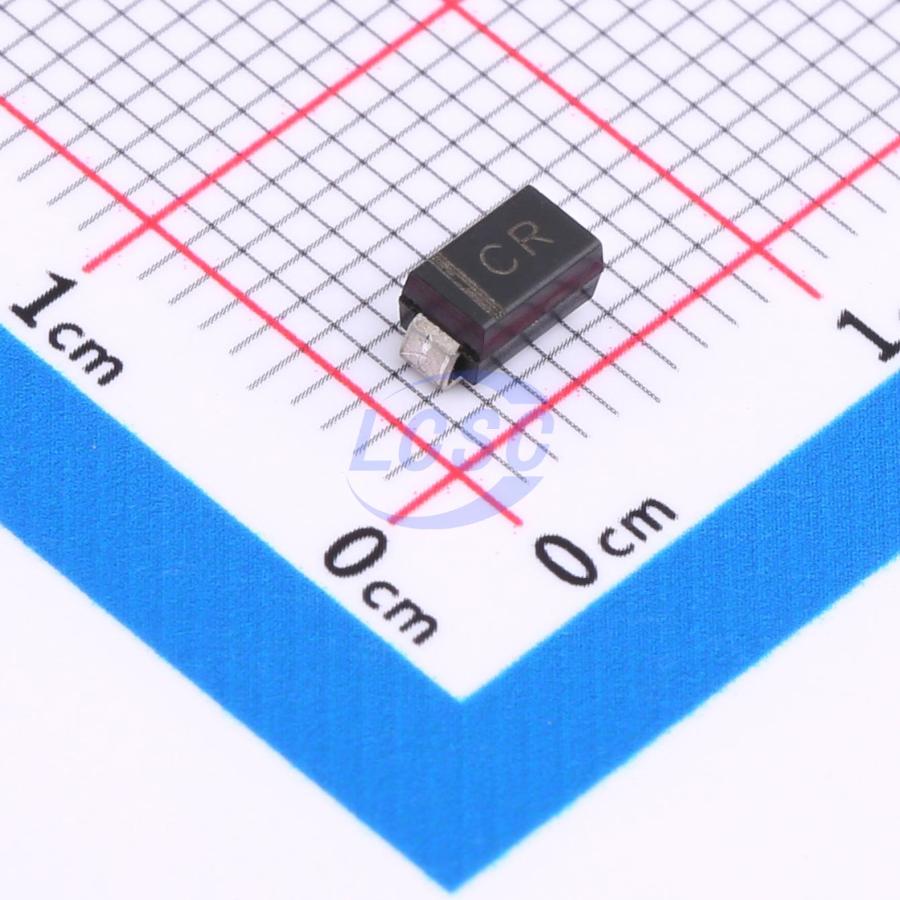

SMAJ40A
64.5VC Clamp 6.2A Ipp TVS DIODE SMA(DO-214AC)
SMA(DO-214AC)ROHS CompliantActive
TVS DIODE 40VWM 64.5VC SMA(DO-214AC)
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- SMAJ40A
- Store part #
- C7466470
- Package / case
- SMA(DO-214AC)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
80 in stock
#C7466470
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.22 | ₹84.40 |
| 200+ | ₹3.40 | ₹680.00 |
| 600+ | ₹2.95 | ₹1,770.00 |
| 5,000+ | ₹2.26 | ₹11,300.00 |
| 10,000+ | ₹2.02 | ₹20,200.00 |
| 20,000+ | ₹1.89 | ₹37,800.00 |
20 × ₹4.22
₹84.40
excl. GST
₹99.59 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SMAJ40A
₹84.40 for 20 + GST
Specifications
- Clamping Voltage
- 64.5V
- Operating Temperature
- -65℃~+150℃
- Peak Pulse Current (Ipp)
- 6.2A
- Peak Pulse Power Dissipation (Ppp)
- 400W@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 44.4V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 40V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.119 g
Overview
Applications
- Input/Output Interface - AC/DC Power Supply - Low-Frequency Signal Transmission Lines (RS232, RS485, etc.)
Key features
- Surface mount application optimized for board space
- Low-profile package
- Built-in strain relief structure
- Glass passivated junction
- Low inductance
- Excellent clamping capability
- 400W peak pulse power capability at 10/1000 μs waveform
- Repetition rate (duty cycle): 0.01%
- Fast response time
- Typical reverse current less than 1 μA above 10V
- Plastic package meets UL 94V-0 flammability rating
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | H1SMA40AT3G#C42402022HXY MOSFET · SMA(DO-214AC) | HXY MOSFET | SMA(DO-214AC) | 100 | ₹30.89 · 100 in stock | View |
 | HSMAJ40A13F#C42402107HXY MOSFET · SMA(DO-214AC) | HXY MOSFET | SMA(DO-214AC) | 5 | ₹10.81 · 5 in stock | View |
 | SMAJ36A#C7466472HXY MOSFET · SMA(DO-214AC) | HXY MOSFET | SMA(DO-214AC) | 80 | ₹3.97 · 80 in stock | View |
